IBM System x3650 M4 Type 7915 User Manual

To install a SATA or USB tape drive, complete the following steps:
1. Read the safety information that begins on page vii, “Installation guidelines” on
page 40, and “Handling static-sensitive devices” on page 42.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables.

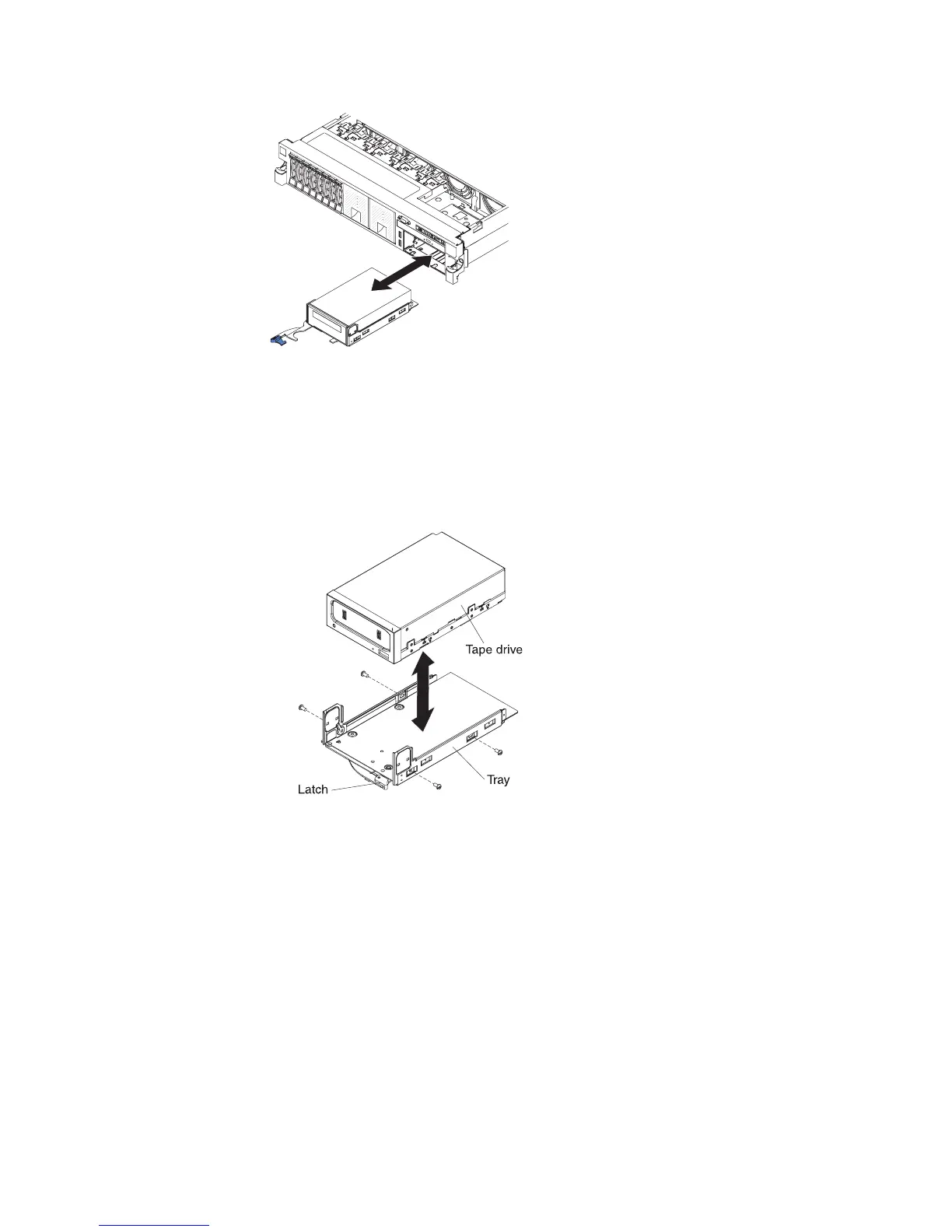

3. Install the tape drive on the tray as shown in the following illustration. If the tape
drive comes with a metal spacer attached, remove the spacer before you install
the tape drive on the tray.
4. Prepare the drive according to the instructions that come with the drive, setting
any switches or jumpers.
5. Connect the following tape enablement kit cables to the connectors on the
system board:
v SAS signal cables into the SAS connectors on the system board
v Tape drive power cable to the system board
Chapter 2. Installing optional devices 99

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
