Power supplies
4. Slide the ac power supply into the bay until the retention latch clicks into place.
Make sure that the power supply connects firmly into the power-supply
connector.
Attention: Do not install power supplies of different watt in the server.
5. Connect the power cord for the new ac power supply to the power-cord
connector on the power supply.

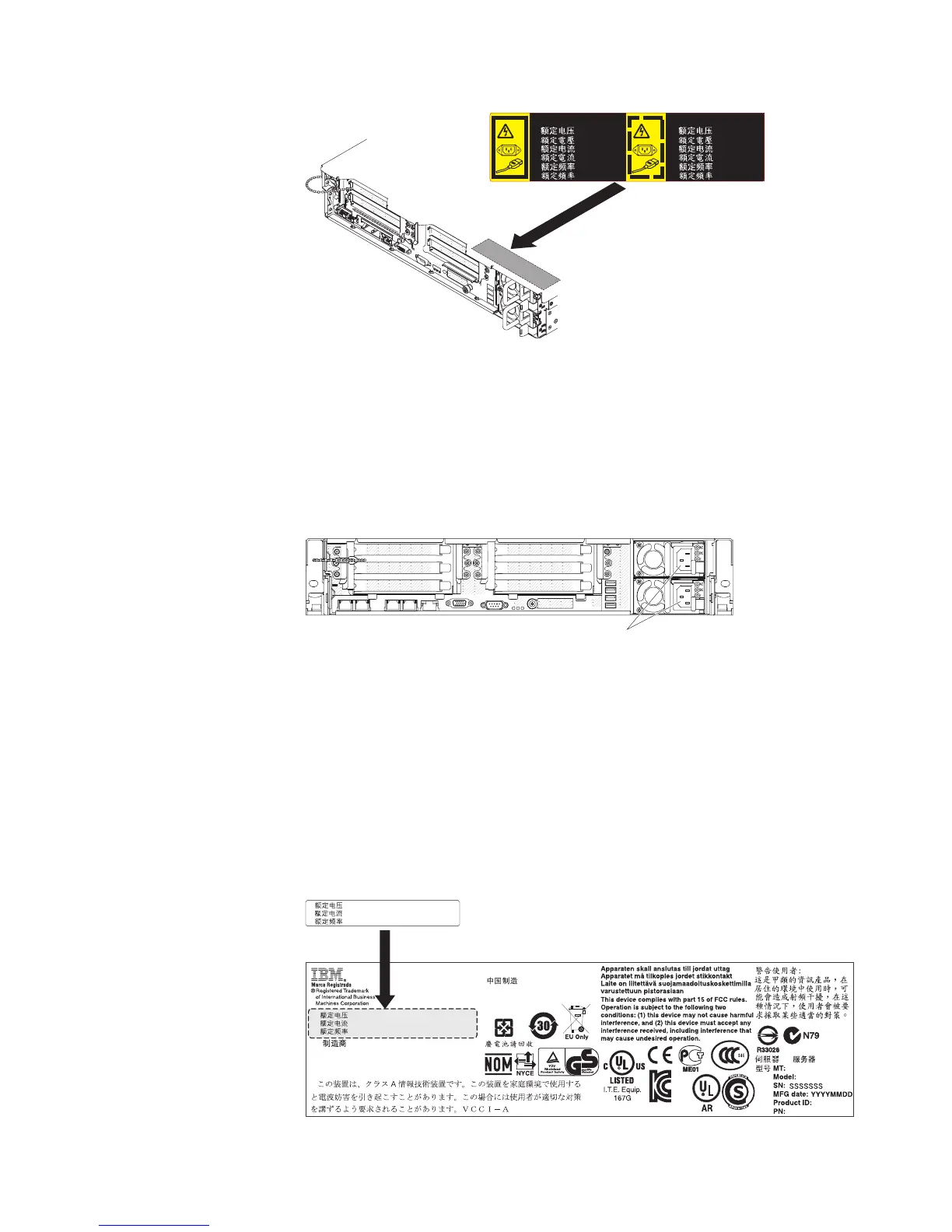

The following illustration shows the ac power-supply connectors on the rear of
the server.
Power cord
connectors
6. Route the power cord through the clip next to power-supply and through any
cable clamps on the rear of the server, to prevent the power cord from being
accidentally pulled out when you slide the server in and out of the rack.
7. Connect the power cord to a properly grounded electrical outlet.
8. Make sure that the ac power LED and the dc power LED on the ac power
supply are lit, indicating that the power supply is operating correctly. The two
green LEDs are to the right of the power-cord connector.
9. If you are replacing a power supply with one of a different wattage in the
server, apply the new power information label provided over the existing power
information label on the server. Power supplies in the server must be with the
same power rating or wattage to ensure that the server will operate correctly.
xxx
XXXX
Product certified in Shenzhen China,
Made in China V
Copyright Code and Parts Contained Herein.
©Copyright IBM Corp 2010 All Rights Reserved..
Canada ICES NMB 003 Class Classe A/- /
KCC REM IBC 7915---
Manufacturer IBM Corporation:
xxx-xxx/xxx-xxx
x,x/x,x
xx/xx Hz
xxx-xxx/xxx-xxx
x,x/x,x
xx/xx Hz
Chapter 2. Installing optional devices 117
