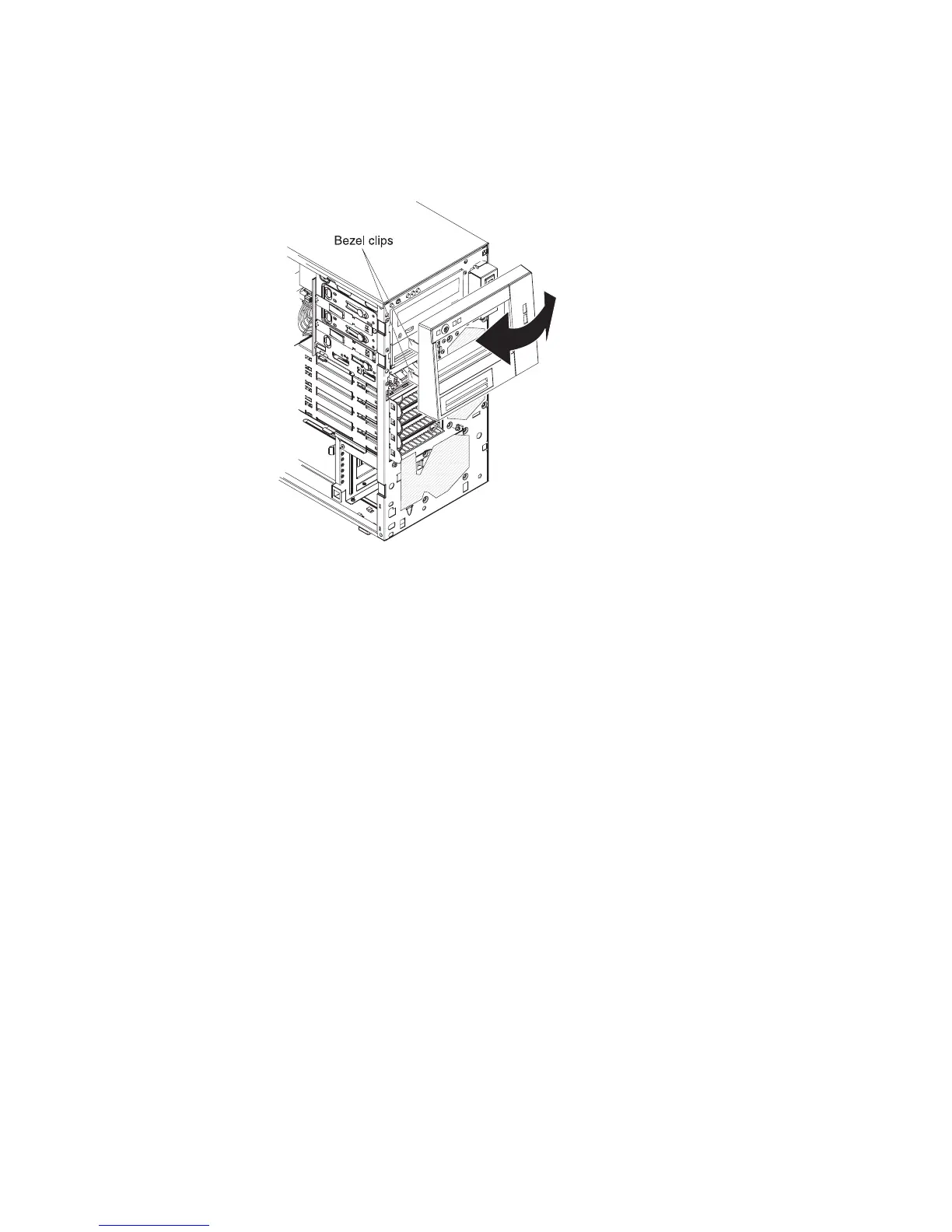

Installing the upper bezel
To install the upper bezel, complete the following steps:
1. Insert the two tabs on the right-side of the upper bezel into the corresponding
holes on the right side of the chassis.
2. Rotate the upper bezel to the left side of the chassis until the bezel clips are
aligned with the corresponding indentations on the left side of the chassis and it
snaps into place.
3. Install the lower bezel (see “Installing the lower bezel” on page 148).
4. Install the side cover (see “Installing the side cover” on page 146).
5. Lock the side cover.
6. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
150 System x3200 M3 Types 7327 and 7328: Problem Determination and Service Guide

IBM x3200 M3 7327 Specifications

General

Form Factor	Tower
Processor Sockets	1
Chipset	Intel 3420
Memory	Up to 32 GB
Memory Slots	4
Storage	Up to 8 TB
Hard Drive Bays	4
Processor	Intel Xeon 3400 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Expansion Slots	4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Drive Bays	4 total (3.5-inch)
