Rear view

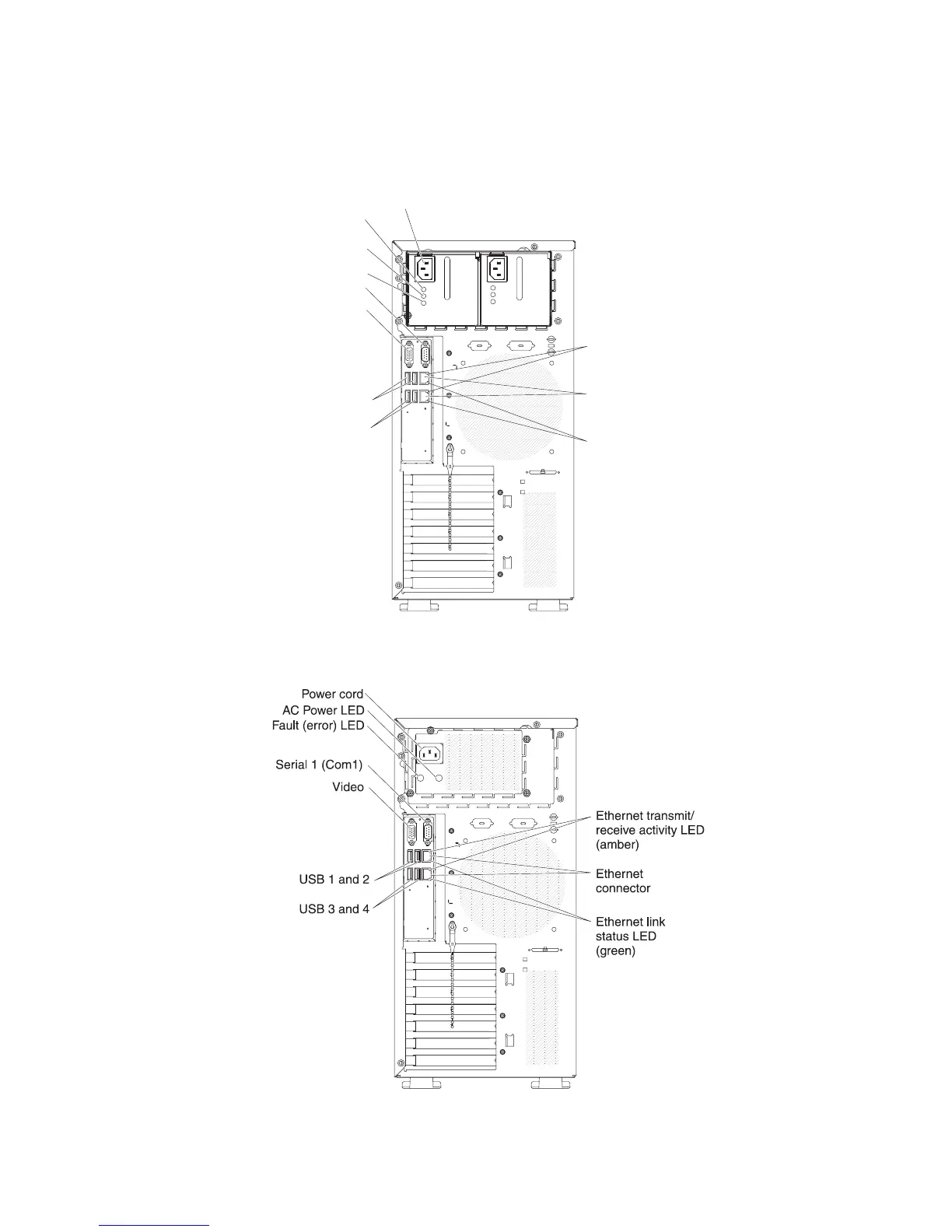

The following illustration shows the LEDs and connectors on the rear of the
hot-swap server model.
USB 3 and 4
Video
Serial (Com1)
Ethernet
connector
USB 1 and 2
AC Power LED
DC power LED
Fault (error)LED
Power cord
Ethernet transmit/
receive activity LED
(amber)
Ethernet link
status LED
(green)
The following illustration shows the LEDs and connectors on the rear of the
simple-swap server model.
Power-cord connector
Connect the power cord to this connector.
Chapter 2. Introduction 13
