IBM x3200 M3 7327 User Manual

Installing the hard disk drive fan assembly
This procedure applies only to server models that have a hard disk drive fan
assembly.
Attention:
v Replace a failed fan within 48 hours.
v To ensure proper cooling and airflow, do not operate the server for more than 30
minutes with the side cover removed.
To install the hard disk drive fan assembly, complete the following steps:
1. Insert the hard disk drive fan assembly retaining tab over the right edge of the
hard disk drive backplane; then, rotate the fan assembly toward the backplane.
Do not fully close the hard disk drive fan assembly.
Release
tabs
Hard disk drive
fan assembly
Slot

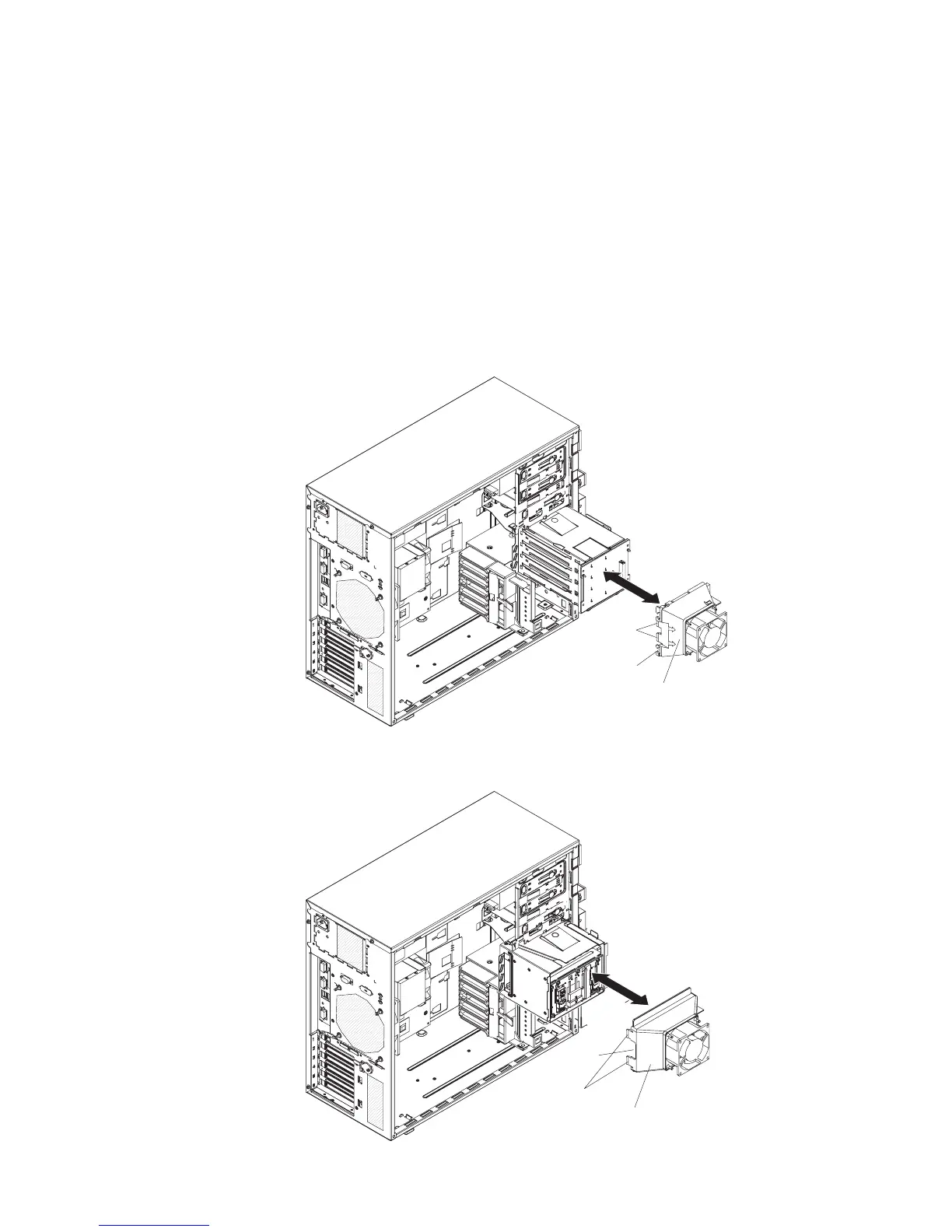

If you have the eight-drive, 2.5-inch hot-swap hard disk drive model, the hard
disk drive fan assembly looks like the following illustration.
Release
tabs
Hard disk drive
fan assembly
Slot
Chapter 5. Removing and replacing server components 191
