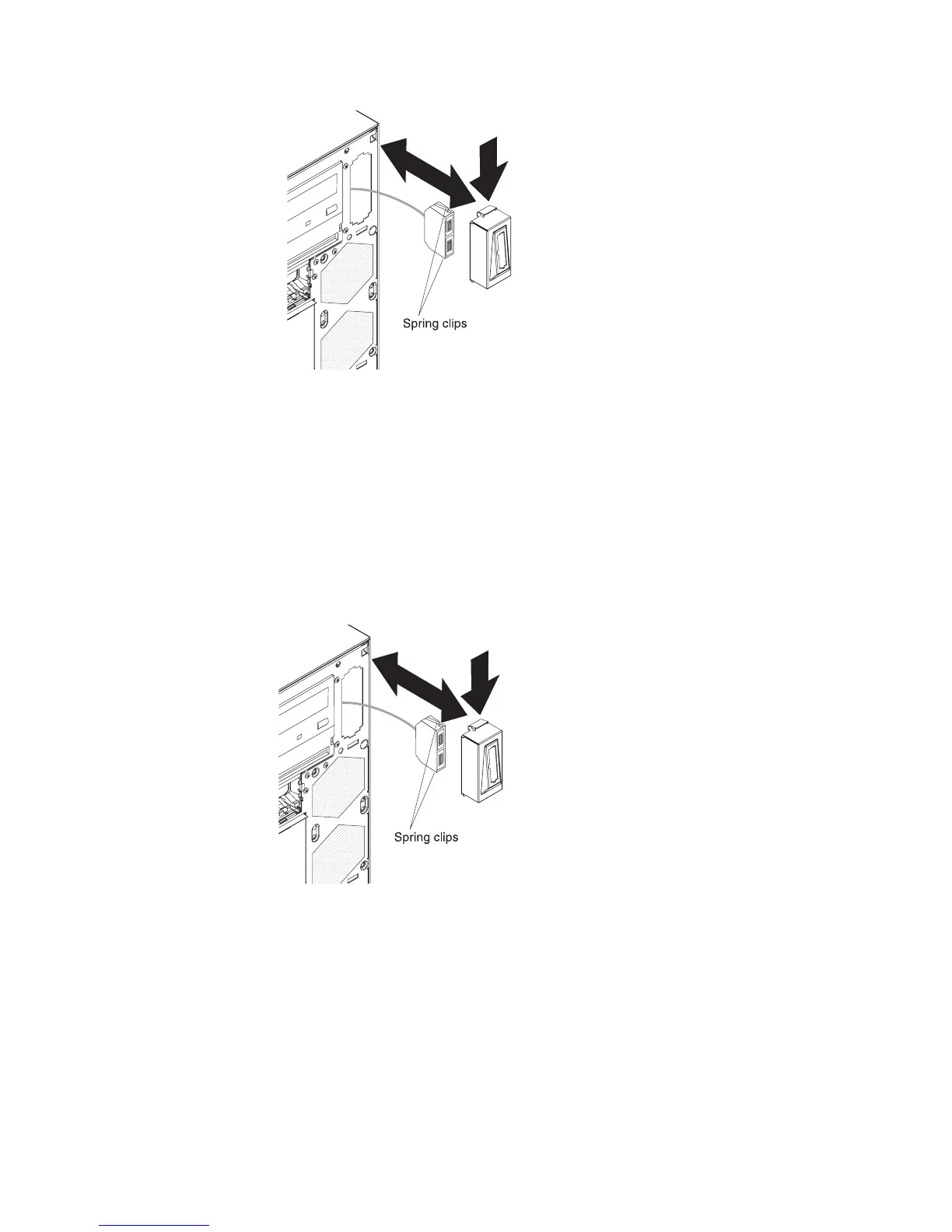

8. Squeeze the spring clips on the sides of the front USB connector assembly
and pull the assembly out of the back of the housing.
9. Carefully pull the front USB cable out of the opening in the chassis.
10. If you are instructed to return the front USB connector assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Installing the front USB connector assembly
To install the front USB connector assembly, complete the following steps:
1. Carefully insert the front USB cable through the opening in the front of the
chassis.
2. Squeeze the spring clips on the sides of the front USB connector assembly and
insert the assembly into the housing through the back of the housing.
3. Place the bottom edge of the housing into the bottom of the opening in the
chassis; then, tilt the top of the housing into position until it clicks into place.
4. Reroute and connect the front USB cable to the front USB connector on the
system board (see “System-board internal connectors” on page 16 for the
location of the front USB connector).
5. Install the upper bezel (see “Installing the upper bezel” on page 150).
6. Install the lower bezel (see “Installing the lower bezel” on page 148).
7. Install the side cover (see “Installing the side cover” on page 146).
8. Lock the side cover if you unlocked it during removal.
200 System x3200 M3 Types 7327 and 7328: Problem Determination and Service Guide
