System-board optional-devices connectors

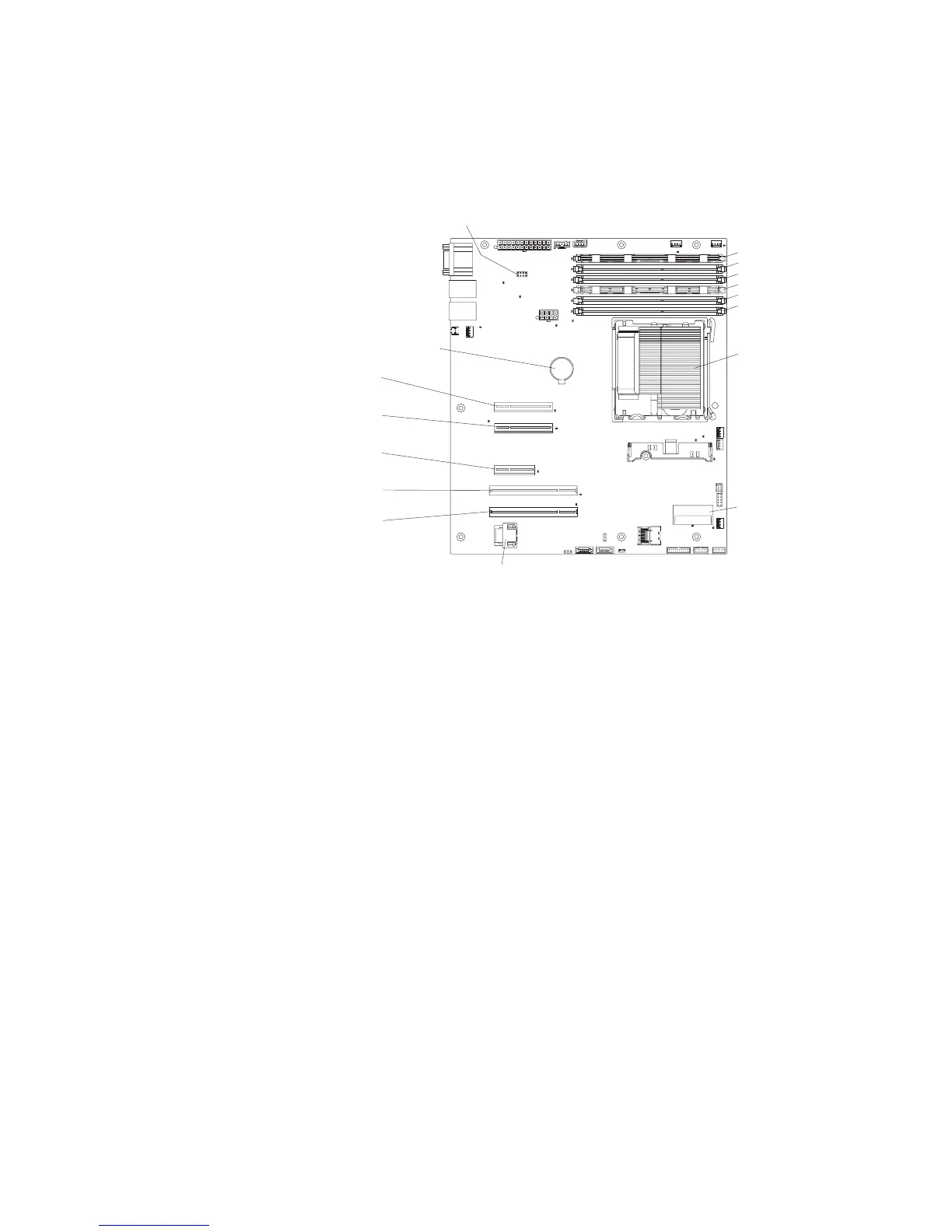

The following illustration shows the system-board connectors for user-installable

optional devices.

Battery

Hypervisor

key connector

Slot 1: PCIe2 x8(8,4,1) 25w

Virtual

media key

connector

DIMM 1

DIMM 2

DIMM 3

DIMM 4

DIMM 5

DIMM 6

ServeRAID-BR10il

SAS/SATA controller

connector

Microprocessor

Slot 2: PCIe2 x8(8,4,1) 25w

Slot 3: PCIe2 x1 10w

Slot 4: PCI 32bit, 33MHz

Slot 5: PCI 32bit, 33MHz

18 System x3200 M3 Types 7327 and 7328: Problem Determination and Service Guide
