Internal connectors, LEDs, and switches
The illustrations in this section show the connectors, light-emitting diodes (LEDs),
and switches on the system board. The illustrations might differ slightly from your
hardware.
System-board internal connectors

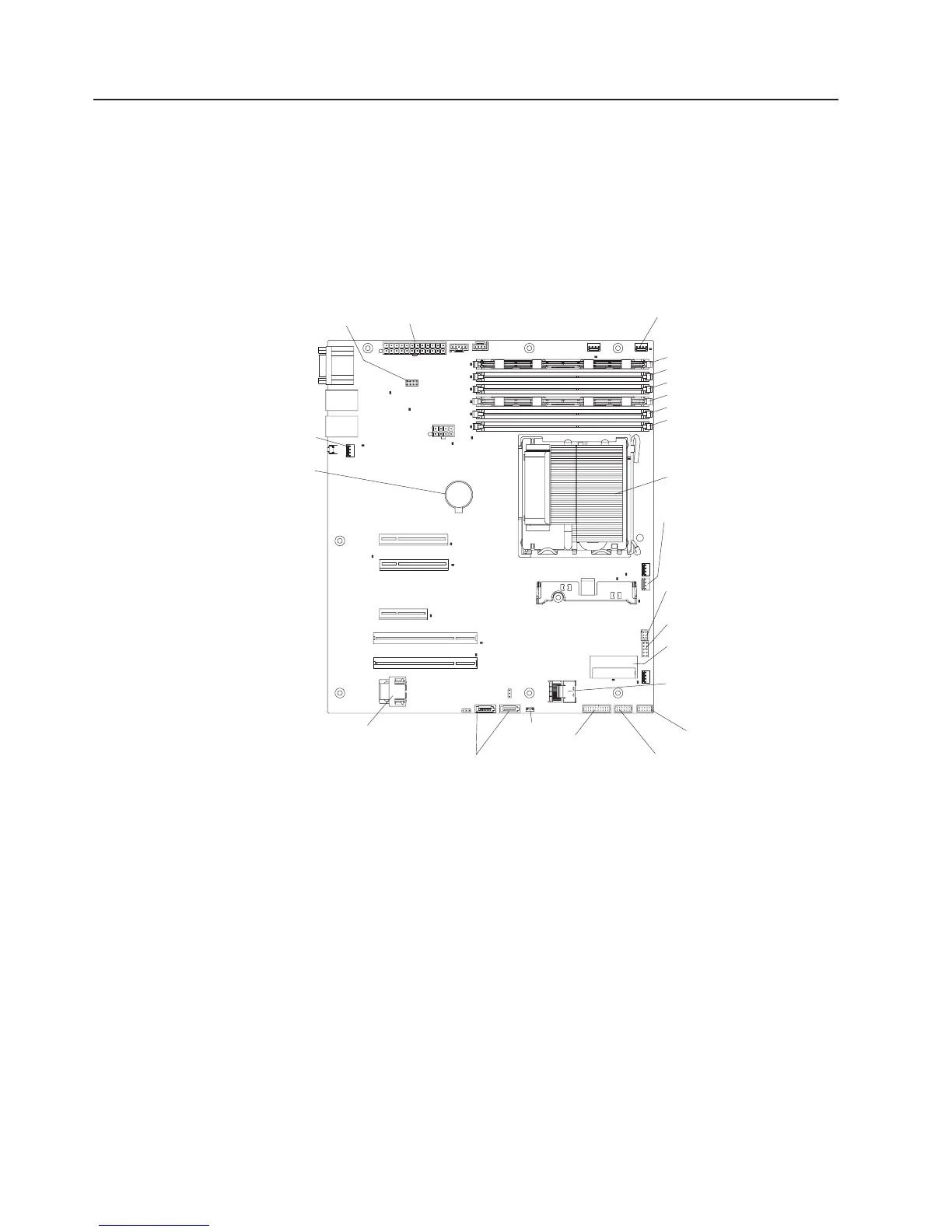

The following illustration shows the internal connectors on the system board.
Battery
Hypervisor
key connector
Optional
internal USB
tape drive
connector
Optical
Drive Signal
Wake
on
LAN
Operator
Information
Panel
Simple-swap
hard disk drive
backplane signal
Virtual
media key
connector
Main
power
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DIMM 5
DIMM 6
Hot-Swap HDD
Backplane config 1
ServeRAID-BR10il
SAS/SATA controller
connector
Microprocessor
Front USB
connector
Hot-Swap HDD
Backplane config 2
HDD fan connector
Microprocessor
fan connector
System fan
connector
16 System x3200 M3 Types 7327 and 7328: Problem Determination and Service Guide

IBM x3200 M3 7327 Specifications

General

Form Factor	Tower
Processor Sockets	1
Chipset	Intel 3420
Memory	Up to 32 GB
Memory Slots	4
Storage	Up to 8 TB
Hard Drive Bays	4
Processor	Intel Xeon 3400 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Expansion Slots	4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Drive Bays	4 total (3.5-inch)
