7. Touch the static-protective package that contains the DIMM to any unpainted
metal surface on the server. Then, remove the new DIMM from the package.
8. Turn the DIMM so that the DIMM keys align correctly with the connector.

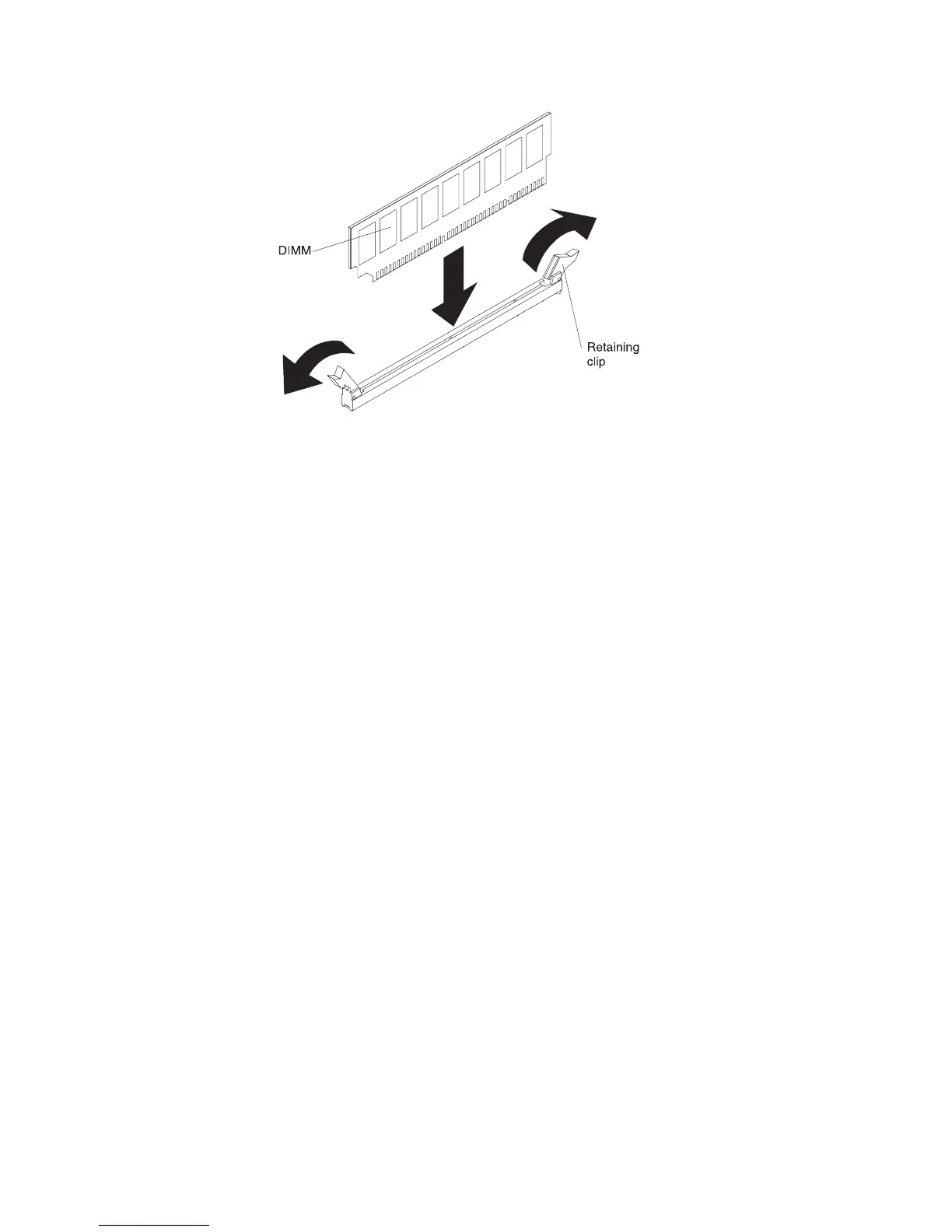

9. Insert the DIMM into the connector by aligning the edges of the DIMM with the
slots at the ends of the DIMM connector. Firmly press the DIMM straight down
into the connector by applying pressure on both ends of the DIMM
simultaneously. The retaining clips snap into the locked position when the DIMM
is firmly seated in the connector. If there is a gap between the DIMM and the
retaining clips, the DIMM has not been correctly installed. Open the retaining
clips, remove the DIMM, and then reinsert it.
174 System x3200 M3 Types 7327 and 7328: Problem Determination and Service Guide

IBM x3200 M3 7327 Specifications

General

Form Factor	Tower
Processor Sockets	1
Chipset	Intel 3420
Memory	Up to 32 GB
Memory Slots	4
Storage	Up to 8 TB
Hard Drive Bays	4
Processor	Intel Xeon 3400 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Expansion Slots	4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Drive Bays	4 total (3.5-inch)
