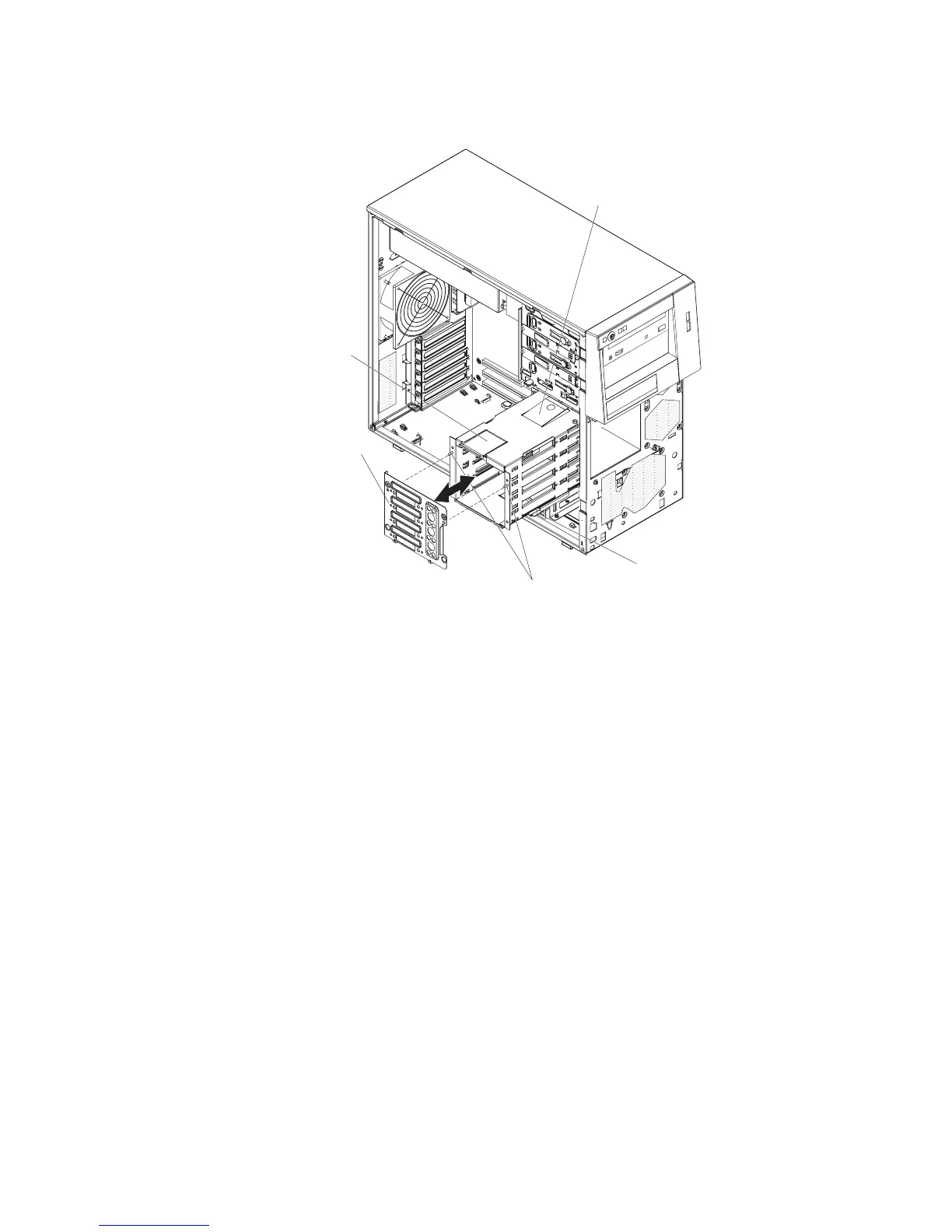

1. Position the bottom edge of the simple-swap backplate on the lower lip of the
drive cage.
Retaining tab
Drive cage
release tab
Retaining
latch
Locating pins
Simple-swap
backplate
2. Tilt the top of the simple-swap backplate toward the drive cage and over the
locating pins until the retaining latch is engaged securely.
3. Press and hold the retaining tab on top of the cage; then, rotate the drive cage
into the chassis until it locks into place.
4. Connect the signal cables to the system board (see “System-board internal
connectors” on page 16 for the location of the Serial ATA drive connectors).
5. Connect the power cables to the simple-swap backplate.
6. Install the hard disk drive fan assembly on the hard disk drive cage (see
“Installing the hard disk drive fan assembly” on page 191).
7. Install the simple-swap hard disk drives that you removed from the hard disk
drive cage (see “Installing a simple-swap hard disk drive” on page 164).
8. Install the lower bezel (see “Installing the lower bezel” on page 148).
9. Install the side cover (see “Installing the side cover” on page 146).
10. Lock the side cover if you unlocked it during removal.
11. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
194 System x3200 M3 Types 7327 and 7328: Problem Determination and Service Guide
