IBM x3200 M3 7327 User Manual

5. Disconnect the cables from the power-supply cage to the system board and all
internal components.

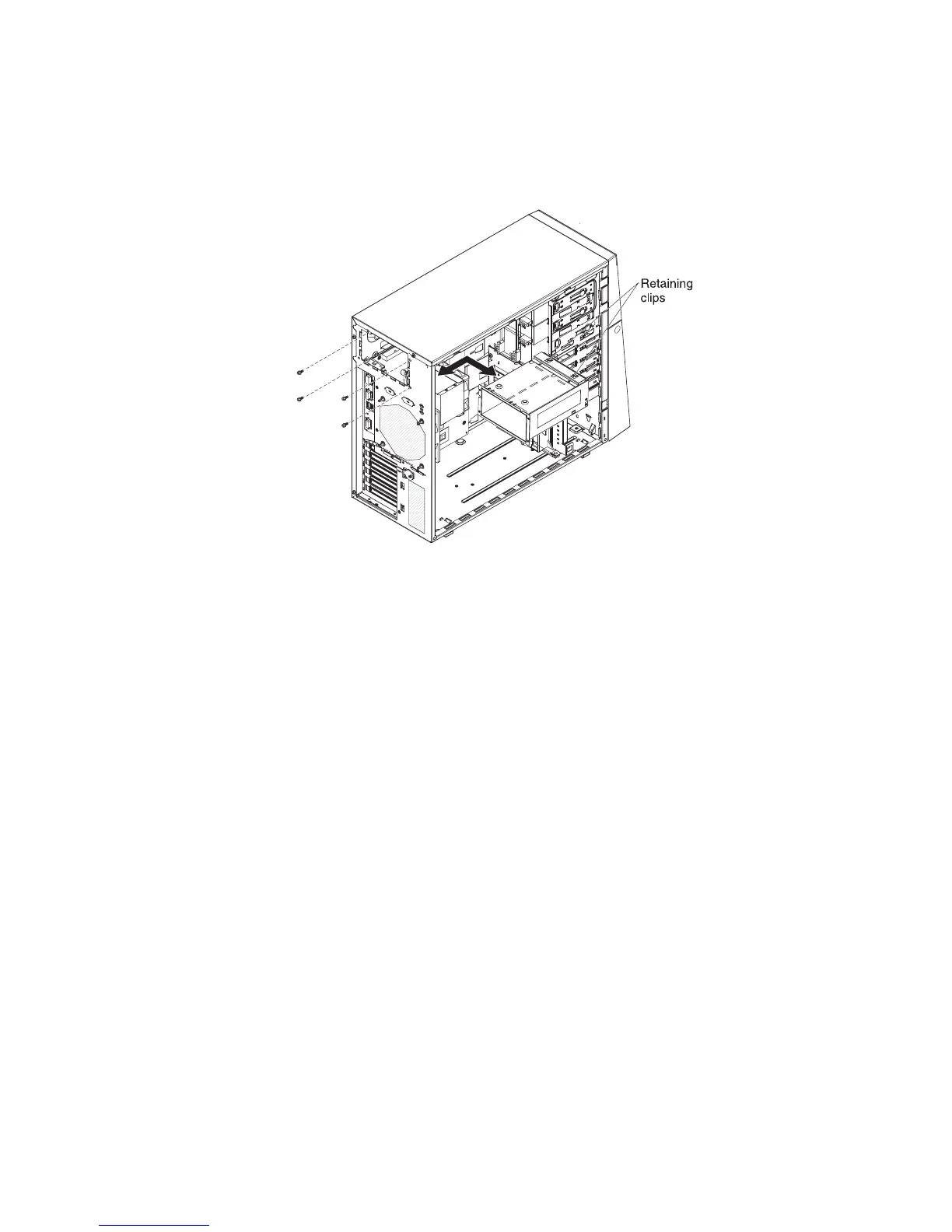

6. Remove the four black screws that secure the power-supply cage to the
chassis; then, slide the cage toward the front of the server to disengage the
retaining clips from the top of the chassis and lift the cage out of the chassis.
7. If you are instructed to return the power-supply cage, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Chapter 5. Removing and replacing server components 203

IBM x3200 M3 7327 Specifications

General

Form Factor	Tower
Processor Sockets	1
Chipset	Intel 3420
Memory	Up to 32 GB
Memory Slots	4
Storage	Up to 8 TB
Hard Drive Bays	4
Processor	Intel Xeon 3400 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Expansion Slots	4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Drive Bays	4 total (3.5-inch)
