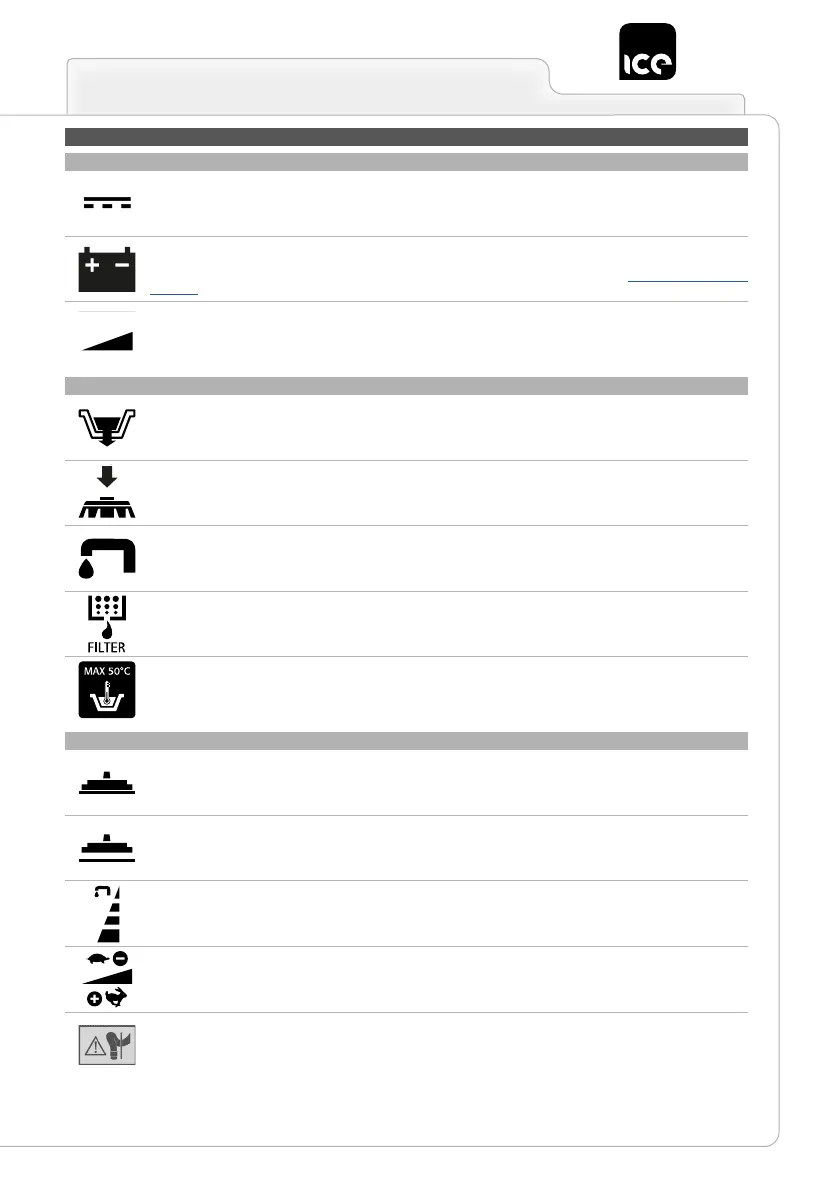

Direct current symbol:
Used on the appliance's registration plate to indicate that the appliance is powered by a DC power supply.
Battery symbol:
Used on the appliance's registration plates to indicate the mass of the batteries used to power the appliance (expressed in
Kg). The value refers to the batteries recommended by the manufacturer (read paragraph titled “TYPE OF BATTERY TO
BE USED”).
Symbol for tank discharge:
Used on the rear of the device to indicate the position of the solution tank drainage cap.
Brush head unit control symbol:
Used on the rear of the appliance, to indicate the position of the brush head control pedal.
Tap position symbol:
Used on the rear of the appliance, to indicate the position of the detergent solution control tap.
Cap/lter position symbol:
Used on the rear of the device to indicate the position of the solution tank cap/lter.
Maximum gradient symbol:
Used on the registration plate of the device, to indicate the maximum gradient that can be safely handled by the device in
work mode.
Symbol of maximum temperature for lling the solution tank:
Used on the side of the device, to indicate the maximum temperature of the water for lling the solution tank safely.
SYMBOLS USED ON THE APPLIANCE
SYMBOLS PRESENT ON THE REGISTRATION PLATE
SYMBOLS PRINTED ON THE APPLIANCE
Detergent ow control symbol.
Used on the rear of the device to indicate the position of the detergent solution ow adjustment lever.
Symbol for work speed regulation (B versions):
Used on the brush head unit to indicate the knob for adjusting the working speed of the device in the version without traction.
Squeegee unit vacuum hose position:
Used on the back of the appliance to identify the correct position for the squeegee unit's vacuum hose. The tube must be
positioned behind the squeegee unit's lifting chain.
Symbol for squeegee in “IDLE” position:
This is used in the rear of the machine to indicate where the squeegee control lever needs to be positioned for idle mode.
Symbol for squeegee in “WORK” position:
This is used in the rear of the machine to indicate where the squeegee control lever needs to be positioned for work mode.
LABELS PRESENT ON THE APPLIANCE
