Ice SCRUB 50 User Manual

22
PREPARING THE
APPLIANCE

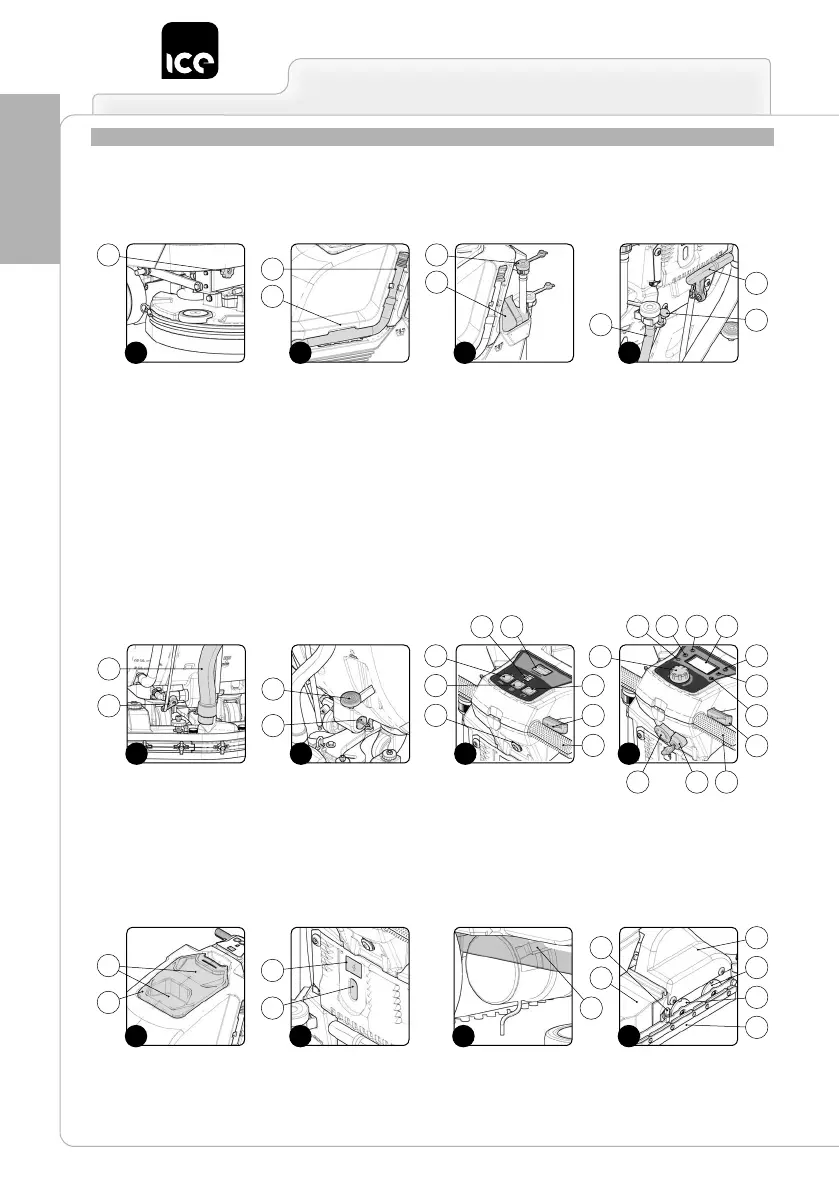

COMPONENT POSITIONING
The basic components of the appliance are as follows:
1. Knob for adjusting the work speed (50D versions) (Fig.1).
2. Recovery tank outlet pipe (Fig.2).
3. Handle for raising the recovery tank (Fig.2).
4. Solution tank cap/measuring device (Fig.3).
5. Tube for quick lling of the solution tank (Fig.3).
6. Tube for solution tank level/drainage (Fig.4).
7. Handle for raising the squeegee unit (Fig.4).
8. Rod for adjusting the detergent solution ow (Fig.4).
9. Tap control lever (Fig.5).
10. Squeegee unit vacuum hose (Fig.5).
11. Brush head control pedal (Fig.6).
12. Solution tank cap/lter (Fig.6).
13. Hour meter display (50D versions) (Fig.7).
14. Battery charge level display (50D versions) (Fig.7).
15. Button for switching brush head gearmotor ON and OFF (50D
versions) (Fig.7).
16. Button for switching vacuum motor ON and OFF (50D versions)
(Fig.7).
17. Button for switching water system solenoid valve ON and OFF
(50D versions) (Fig.7).
18. Dead man's lever (Fig.7).
19. Handlebars (Fig.7).
20. Main switch (50D versions) (Fig.7).
21. Control display (traction versions) (Fig.8).
22. ECO-MODE program selection button (traction versions) (Fig.8).
23. Button for adjusting the water ow in the device water system
(valid only for traction versions with CDS) (Fig.8).
24. Button for enabling or disabling reverse mode (traction versions)
(Fig.8).
25. Brush uncoupling button (traction versions) (Fig.8).
26. Button for adjusting the detergent solution percentage in the
device water system (valid only for traction versions with CDS)
(Fig.8).
27. Knob for adjusting the operation control potentiometer (traction
versions) (Fig.8).
28. Dead man's lever (Fig.8).
29. Handlebars (Fig.8).
30. Key switch for controlling the main system (traction versions)
(Fig.8).
31. Emergency button (BT versions) (Fig.8).
32. Recovery tank cover (Fig.9).
33. Storage compartment (Fig.9).
34. Cap for battery charger socket (battery charger versions only)
(Fig.10).
35. Battery charge LED display (battery charger versions only)
(Fig.10).
36. Electronic brake lever (traction versions only) (Fig.11).
37. Brush head carter guard (50C version) (Fig.12).
38. Right side splash guard retainer knob (50C version) (Fig.12).
39. Right side splash guard (50C version) (Fig.12).
40. Front brush hub (50C version) (Fig.12).
41. Rear brush hub (50C version) (Fig.12).
42. Debris hopper (50C version) (Fig.12).
43. Brush head control button (versions with PM) (Fig.8).
3
4
3
1 5
2
21 4
7
8
6
33
32
35 36
42
38
37
40
41
39
34
10 11 129
7 8
10
9
12
11
15
14 13
17
27
16
24
212243
30 29
23
31
1820
19
25
26
28
65
