7.2-3
- Replace the shipping cap with the stainless steel fitting, as per Figure 7.2-4 below.
- Please ensure the nylon washer is correctly seated between the stainless steel fitting and
the ICE Torus ink reservoir
PLEASE NOTE: the stainless steel fitting has a ‘vent hole’ on one edge, shown below
- Push fit the polythene pipe onto the stainless steel fitting and hand tighten the knurled
flange nut, indicated

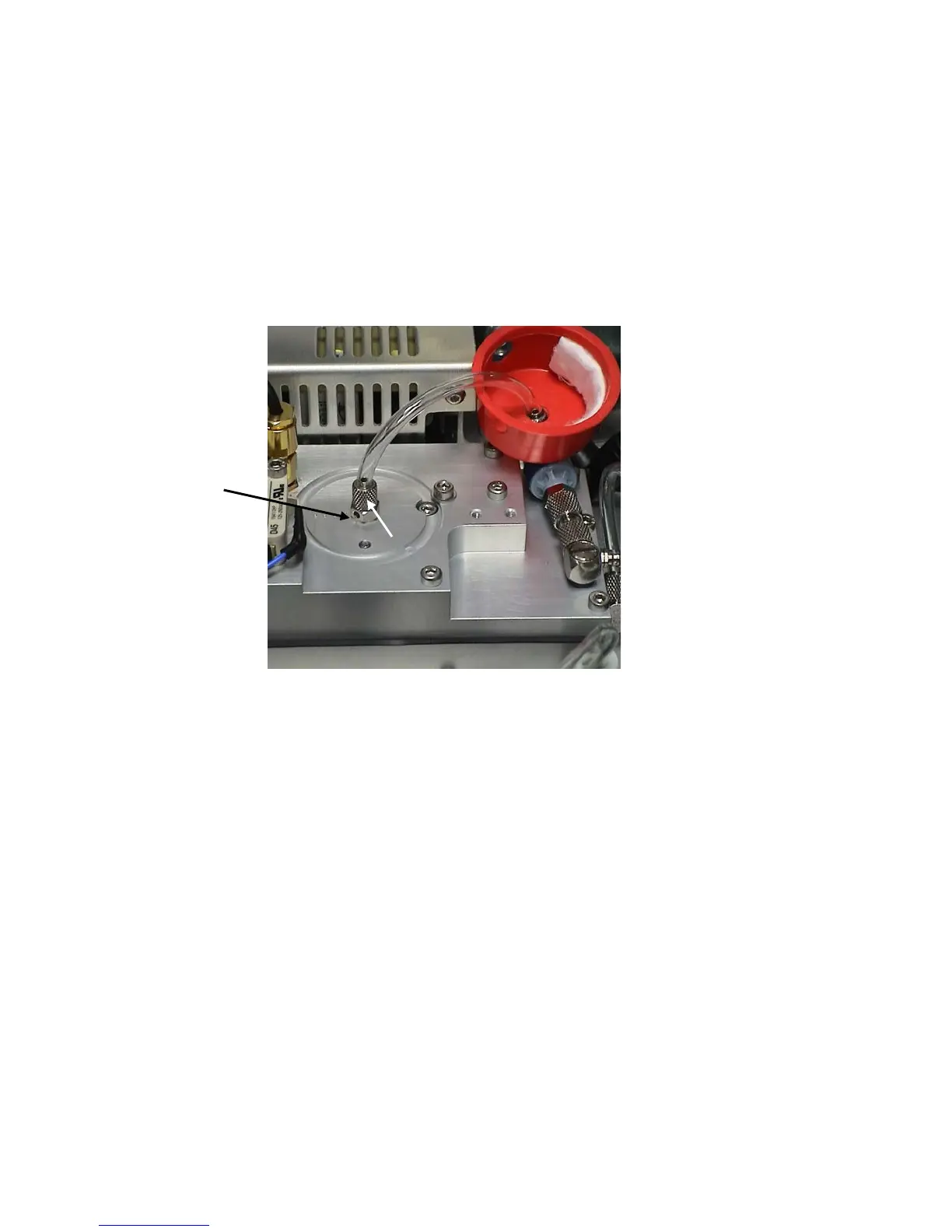

Figure 7.2-4
Knurled Flange Nut
Vent
Hole
