ICM Controls SC 2201 - Coleman 3000 Series

12
SimpleComfort
®
2201
W2 L C Y2EGBOY1R
SimpleComfort
®

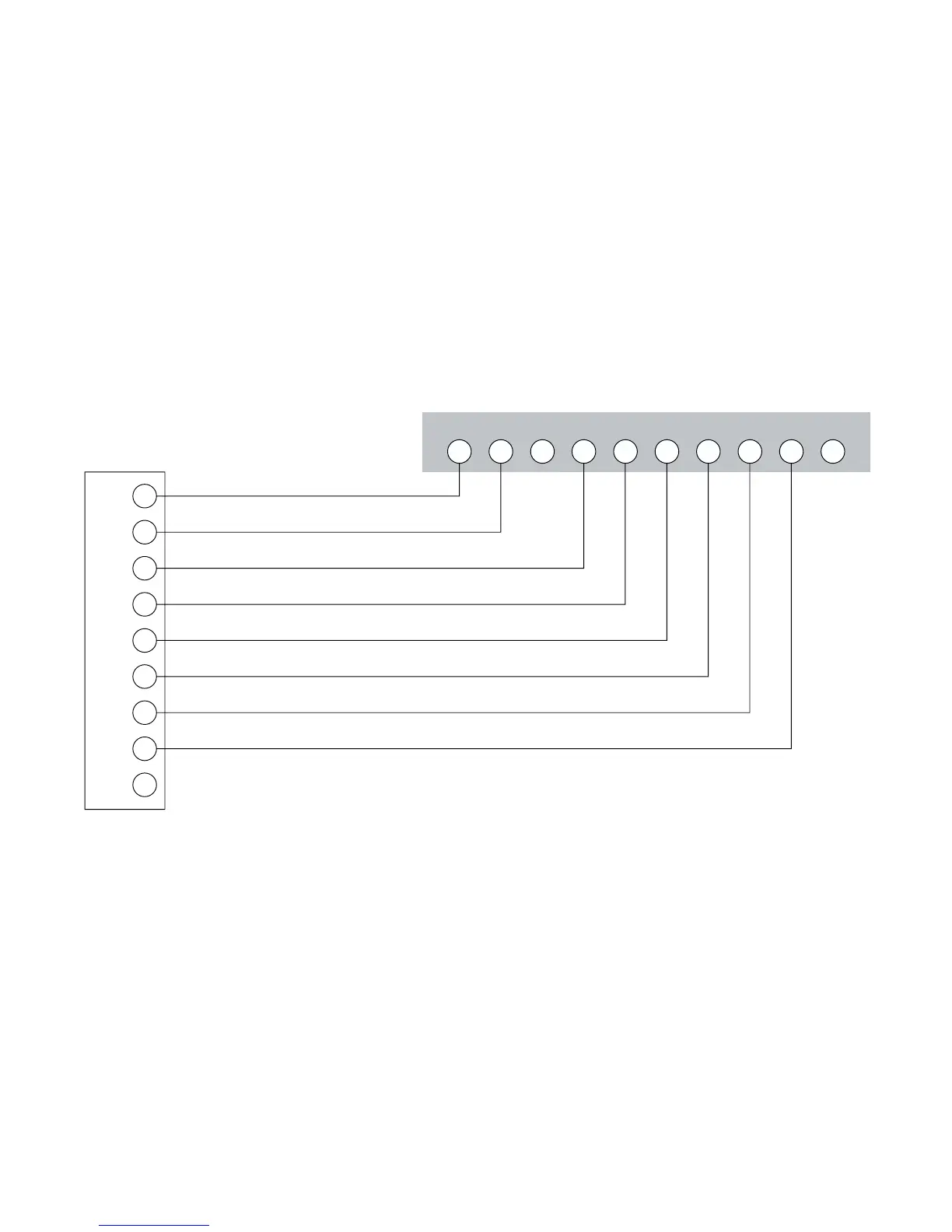

2201 Electronic Thermostat Conversion to:
Coleman 3000 Series Heat Pump Systems
Coleman 3000
Low Voltage Terminal Board
R
Y
B
G
E
W2
L
X
O
24VAC,Return
CompressorContactor
ReversingValve(HeatingMode)
FanContactorCircuit
EmergencyHeatingCircuit
2ndStageHeatingCircuit
SystemMonitorLED
24VAC,Common
