ICM Controls SC 2201 User Manual

11
SimpleComfort
®
2201
W2 L C Y2EGBOY1R
SimpleComfort
®

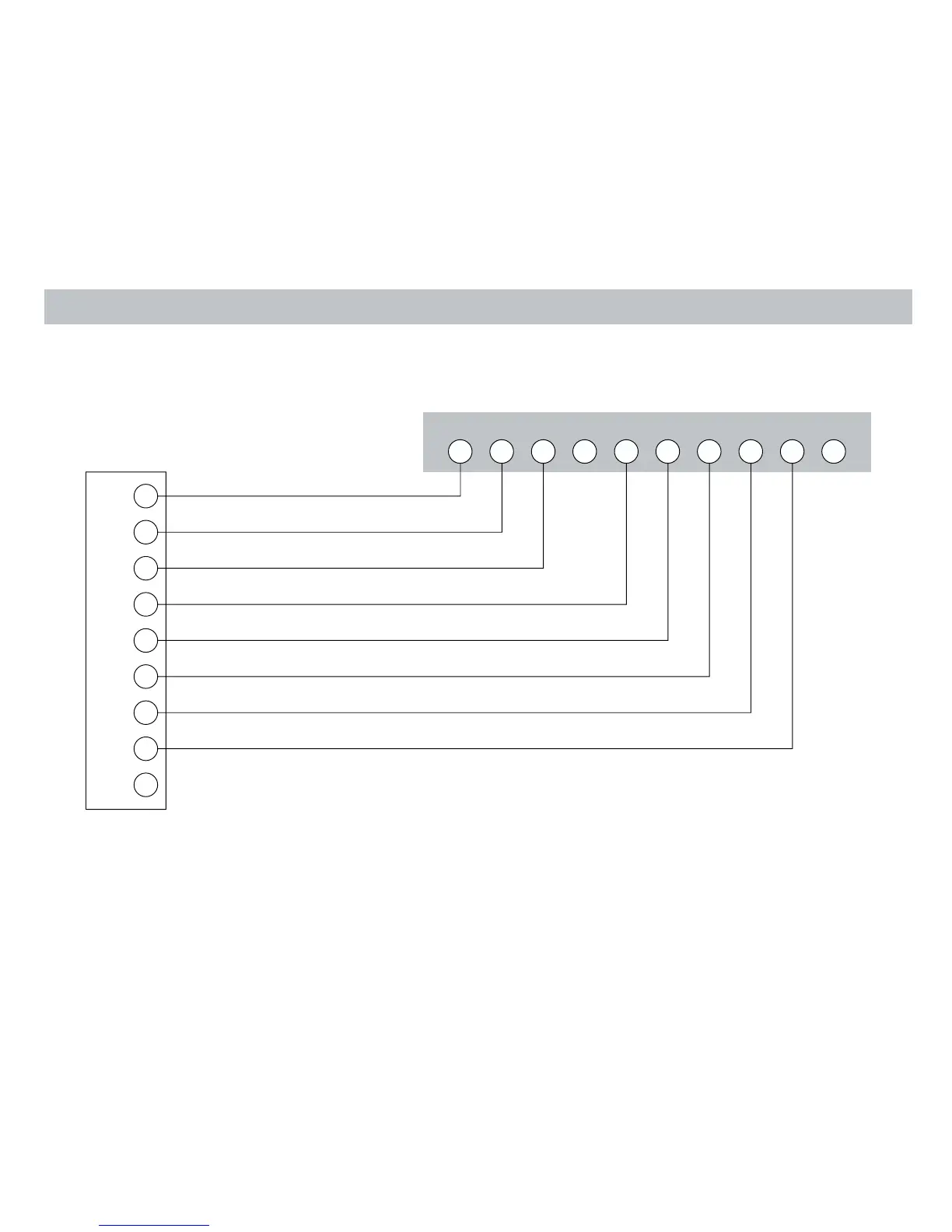

2201 Electronic Thermostat Conversion to:
Carrier Split Stream Condensers and Heat Pump Systems
Carrier Split Stream
Low Voltage Terminal Board
R
Y
O
G
E
W2
L
C
W3
24VAC,Return
CompressorContactor
ReversingValve(CoolingMode)
FanContactorCircuit
EmergencyHeatingCircuit
2ndStageHeatingCircuit
SystemMonitorLED
24VAC,Common
Wiring Diagrams

ICM Controls SC 2201 Specifications

General

Brand	ICM Controls
Model	SC 2201
Category	Thermostat
Language	English
