ICM Controls SC 2201 User Manual

13
SimpleComfort
®
2201
W2 L C Y2EGBOY1R
SimpleComfort
®

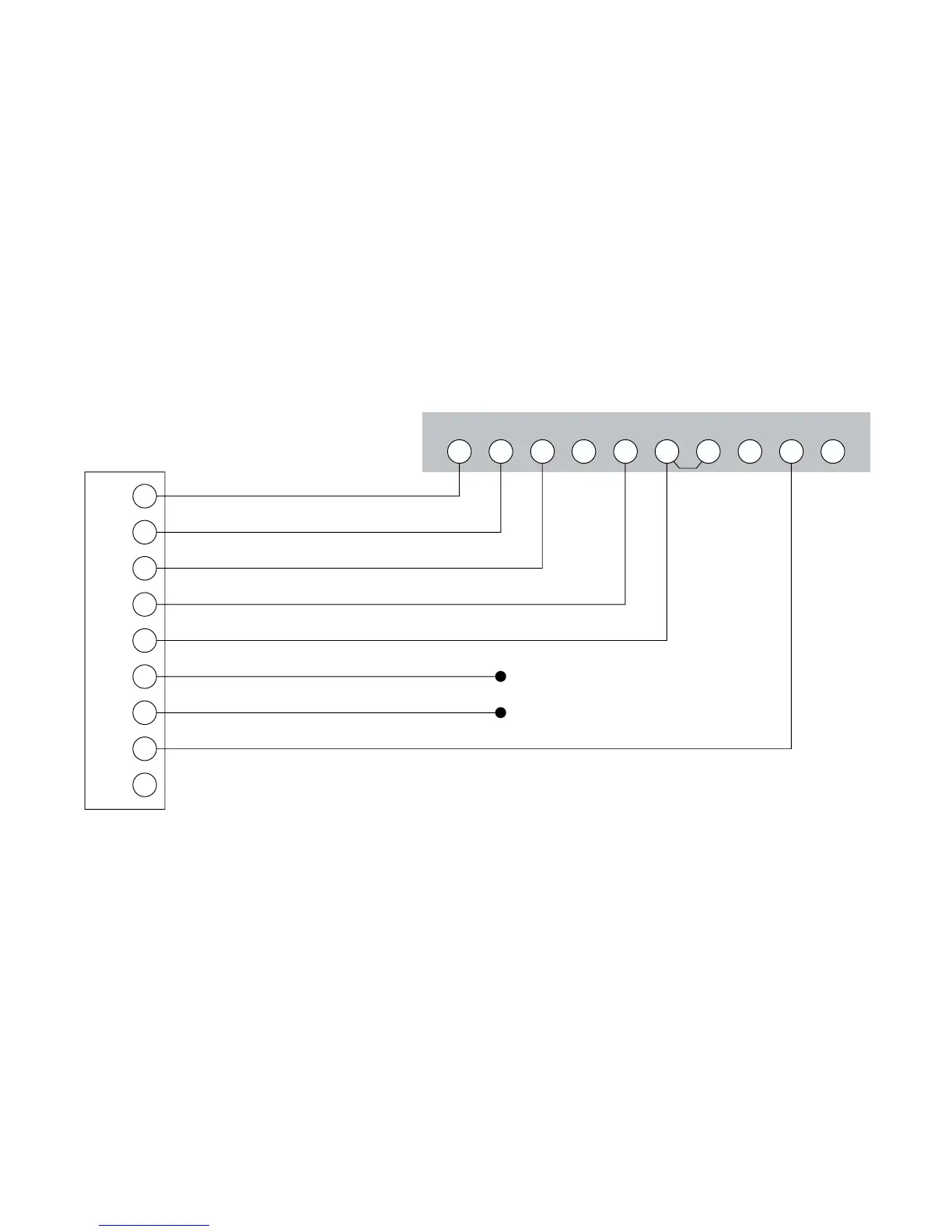

2201 Electronic Thermostat Conversion to:
Comfortmaker CYC Series Heat Pump Systems
Comfortmaker CYC
Low Voltage Terminal Board
R
Y
O
G
W1
W2
X
C
24VAC,Return
CompressorContactor
ReversingValve(CoolingMode)
FanContactorCircuit
2ndStageHeatingCircuit
OutdoorThermostat
DefrostSensor
24VAC,Common
Note 1:E and W2 terminals jumpered at thermostat.
Note 2:W2 terminal on Comfortmaker capped at PCB.
Note 2:X terminal on Comfortmaker capped at PCB.
(capped)
(capped)

ICM Controls SC 2201 Specifications

General

Brand	ICM Controls
Model	SC 2201
Category	Thermostat
Language	English
