SimpleComfort
®
2201
W2 L C Y2EGBOY1R
SimpleComfort
®

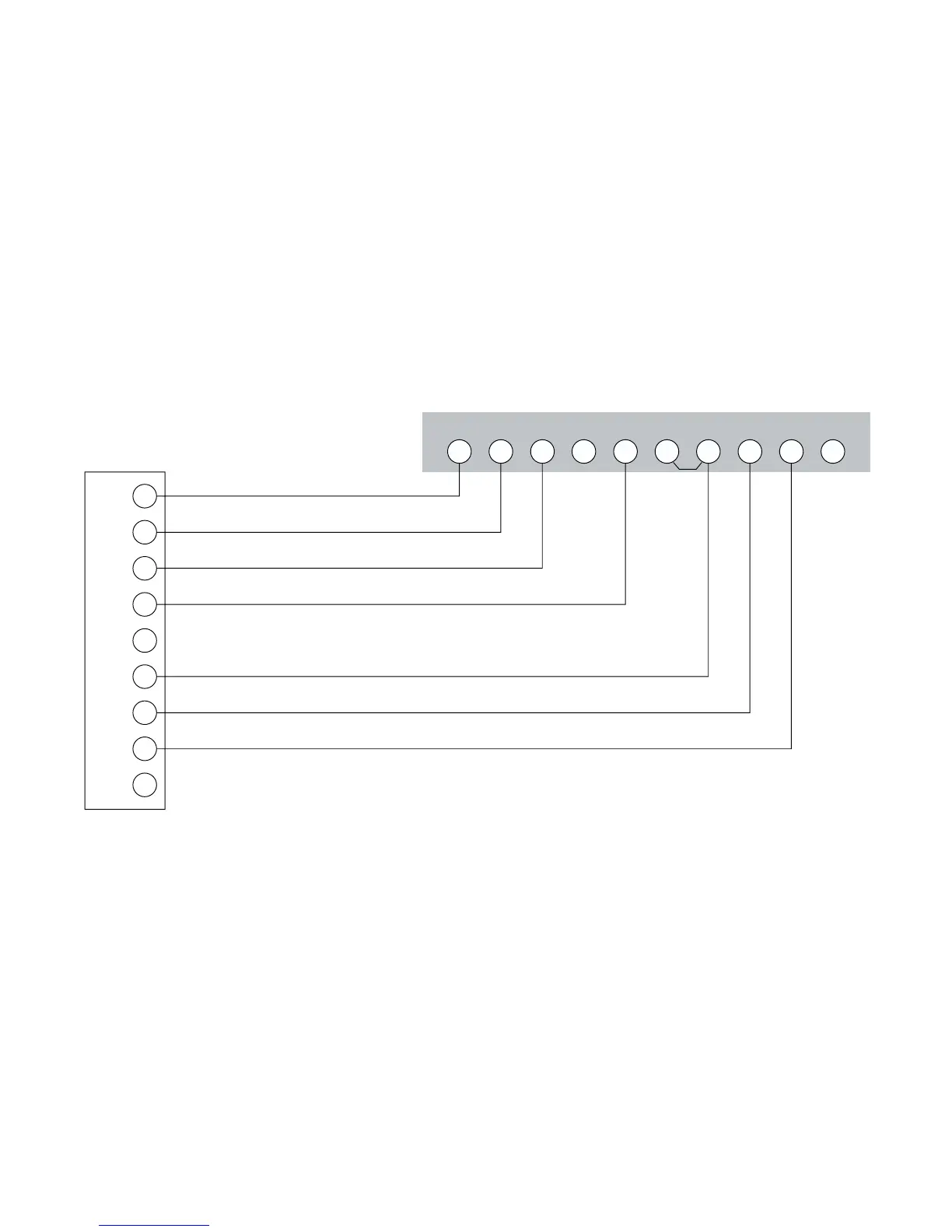

2201 Electronic Thermostat Conversion to:
York -E1CS, -E1FB, E1FH Heat Pump Systems
York -E1CS, -E1FB, E1FH
Low Voltage Terminal Board
R
Y
O
G
W
X
B
24VAC,Return
CompressorContactor
ReversingValve(CoolingMode)
FanContactorCircuit
2ndStageHeatingCircuit
SystemMonitorLED
24VAC,Common
Note 1:E and W2 terminals jumpered at thermostat.
