ICM Controls SC 2201 User Manual

16
SimpleComfort
®
2201
W2 L C Y2EGBOY1R
SimpleComfort
®

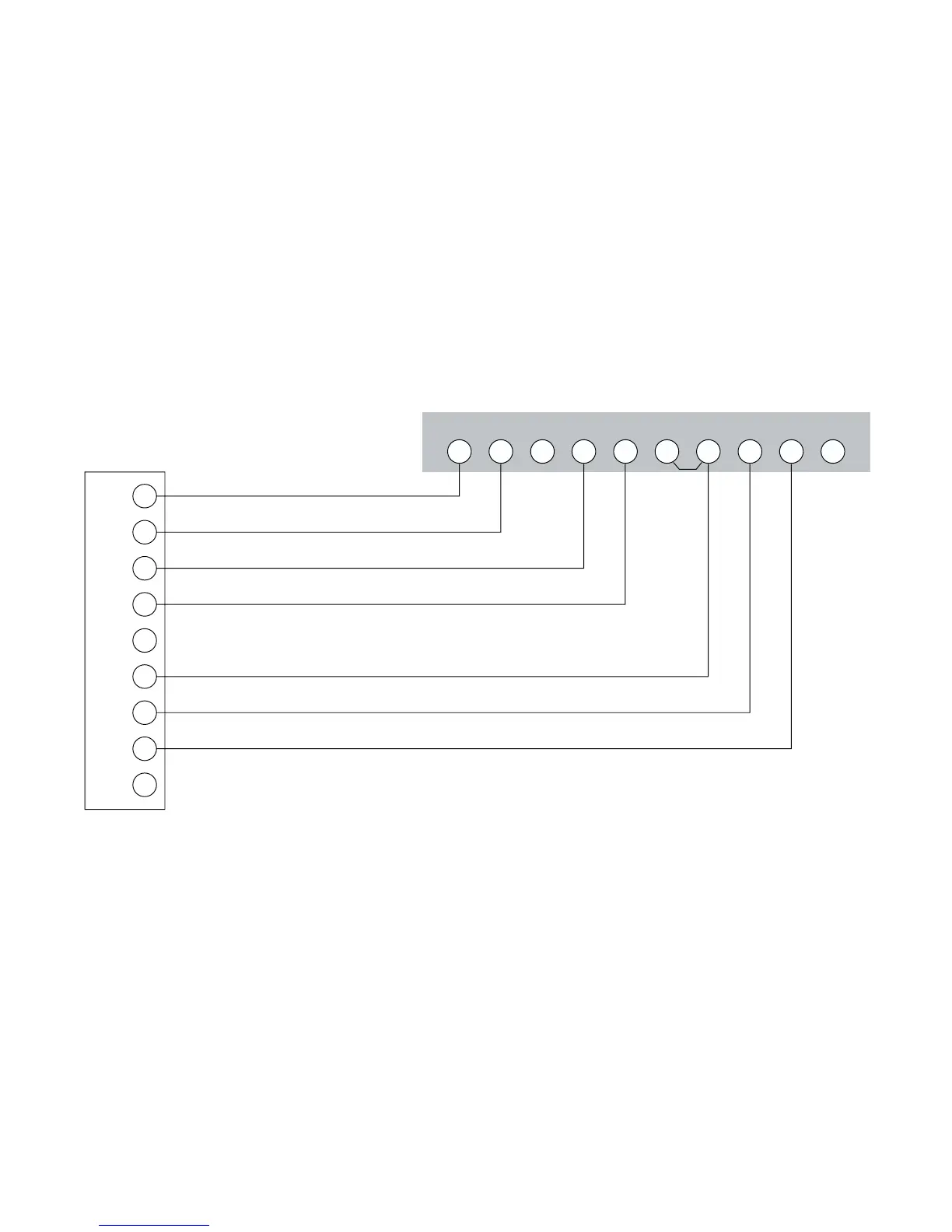

2201 Electronic Thermostat Conversion to:
Rheem/Ruud: -PGB, -PFA, -PCB, -PLA, and -PKA Series Heat Pump Systems
Rheem/Ruud: -PGB, -PFA, -PCB, -PLA, and -PKA
Low Voltage Terminal Board
R
Y
B
G
W2
L
X
O
24VAC,Return
CompressorContactor
ReversingValve(HeatingMode)
FanContactorCircuit
2ndStageHeatingCircuit
SystemMonitorLED
24VAC,Common
Note 1:E and W2 terminals jumpered at thermostat.

ICM Controls SC 2201 Specifications

General

Brand	ICM Controls
Model	SC 2201
Category	Thermostat
Language	English
