BASIC OPERATION

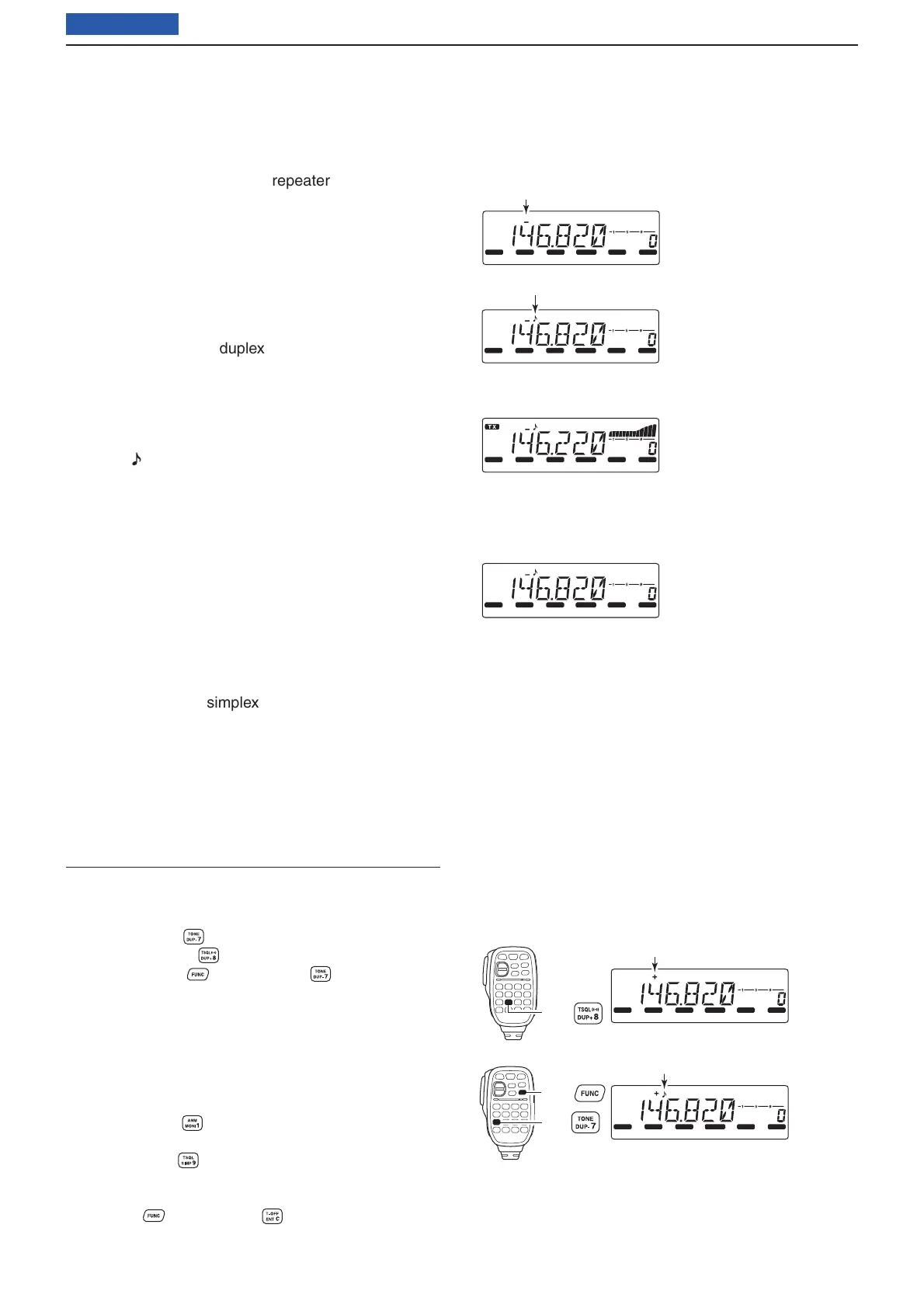

■ Accessing a repeater
q Set the receive frequency (repeater output frequen-
cy). (p. 5)
• For only USA versions:
When the Auto Repeater function is set to “R1”
(p. 16), steps w and e are not necessary.
When the Auto Repeater function is set to “R2”
(p. 16), steps w to r are not necessary.
w Set the frequency offset in the Set mode. (p. 15)
e Hold down [DUP] (LOW) for 1 second, once or twice,
to select the minus duplex or the plus duplex mode.
• The “–” or “+” icon appears to represent the fre-
quency offset direction.
r Push [TONE] several times to turn ON the subau-
dible tone encoder, depending on the repeater re-
quirements.
• The “ ” icon appears
• The 88.5 Hz tone frequency is set as the default.
But some repeaters may require a different tone
frequency to access. Refer to page 13 for setting
the tone frequency.
t Hold down [PTT] to transmit.
• The displayed frequency automatically changes to
the transmit frequency (repeater input frequency).
• If “OFF” appears, confi rm that the frequency offset
is correctly set. (p. 15)
y Release [PTT] to receive.
u Push [MONI] to check whether you can directly re-
ceive the signal from the other station.
i To return to the simplex mode, hold down [DUP]
(LOW) for 1 second, once or twice, to clear the “–” or
“+” icon.
o To turn OFF the subaudible tone encoder, push
[TONE] several times until no tone icon appears.
Using the HM-133V
z Set the receive frequency (repeater output frequen-
cy). (p. 5)
x Set the frequency offset in the Set mode. (p. 15)
c Push [DUP–] to select the minus duplex mode,
or push [DUP+] to select the plus duplex mode.
v Push [FUNC] then [TONE] to turn ON the
subaudible tone encoder, depending on the repeat-
er requirements.
• Refer to page 13 for setting the tone frequency.
• When the repeater requires a different tone sys-
tem, see page 14.
b Hold down [PTT] to transmit.
n Release [PTT] to receive.
m Push [MONI] to check whether you can directly
receive the signal from the other station.
, Push [SIMP] to return to the simplex mode.
• The “+” or “–” icon disappears.
. To turn OFF the subaudible tone encoder, push
[FUNC] then [T-OFF] .
LOCK
S E T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
Appears.
Push [DUP] (LOW)
to select the duplex mode.
LOCK
S E T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
Appears
Push [TONE] to turn ON
the subaudible tone encoder.
LOCK
S E T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
While transmitting
(The displayed frequency changes to the transmit frequency)
While receiving
LOCK
S E T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
Push
Appears
Push ,
then .
Appears
[i.e.]: Select the minus duplex mode, and then turn ON
the subaudible tone encoder.
[i.e.]: Select the plus duplex mode, and then turn ON
the subaudible tone encoder.
