CONNECTION AND MAINTENANCE
■ Optional UT-108 installation
Install the optional UT-108 unit as follows:
q Turn the power OFF, then disconnect the DC power cable.
w Unscrew the 4 cover screws, then remove the bottom
cover.
e Install the unit as shown in the diagram below.
r Replace the bottom cover and screws, then re-connect the
DC power cable.
■ Optional UT-109 or UT-110
installation
q Turn the power OFF, then disconnect the DC power cable.
w Unscrew the 4 cover screws, then remove the bottom
cover.

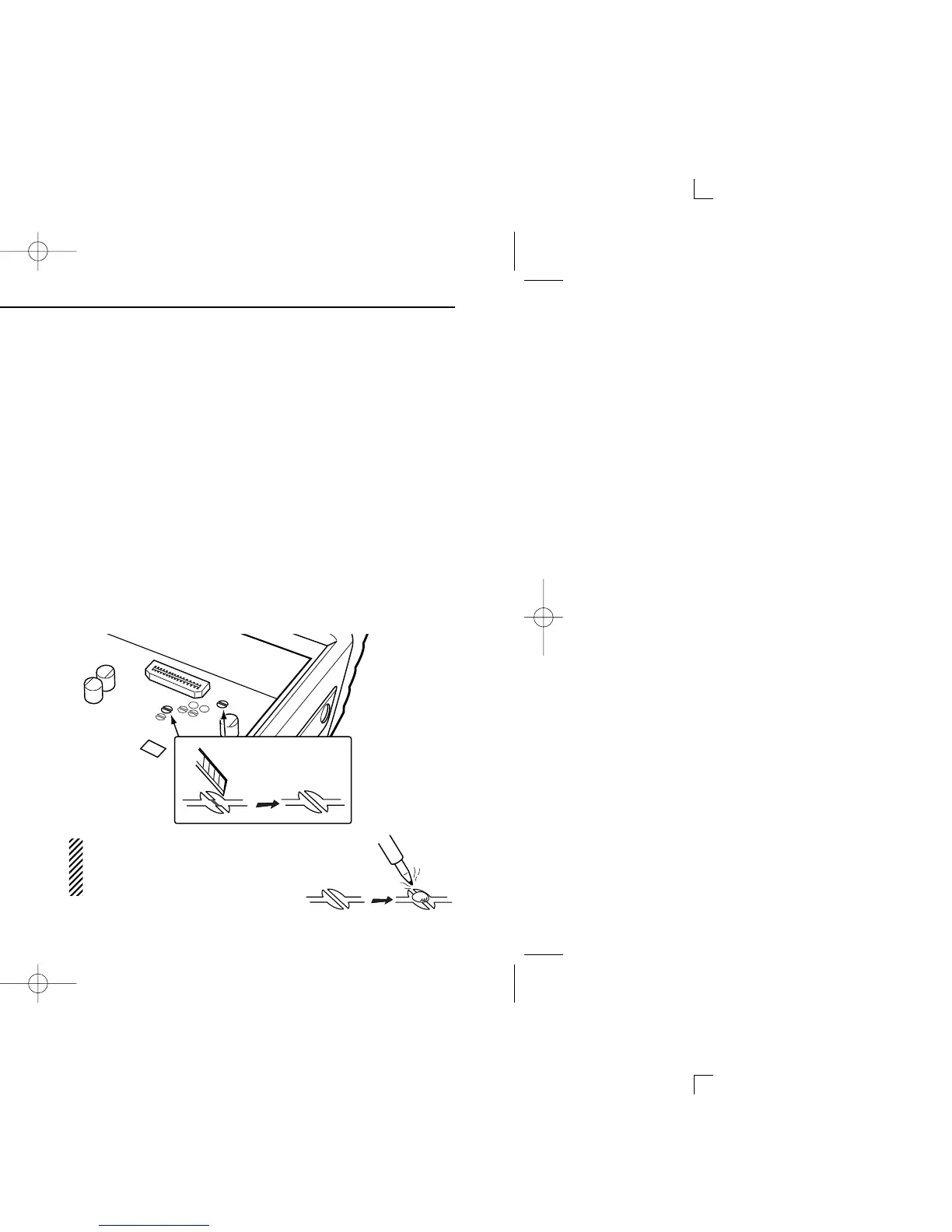

e Cut the pattern on the PCB at the TX mic circuit (MIC) and
RX AF circuit (DISC) as shown below.
r Install the scrambler unit as described in the installation of
optional UT-108 as on the page at left.
t Replace the bottom cover and screws, then re-connect the
DC power cable.
NOTE: Be sure to re-solder the above
disconnected points when you remove
the scrambler units. Otherwise no TX
modulation or AF output is available.
