Icom IC-7300 - D Center Mode; D Fixed Mode

5
SCOPE OPERATION
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
2
1

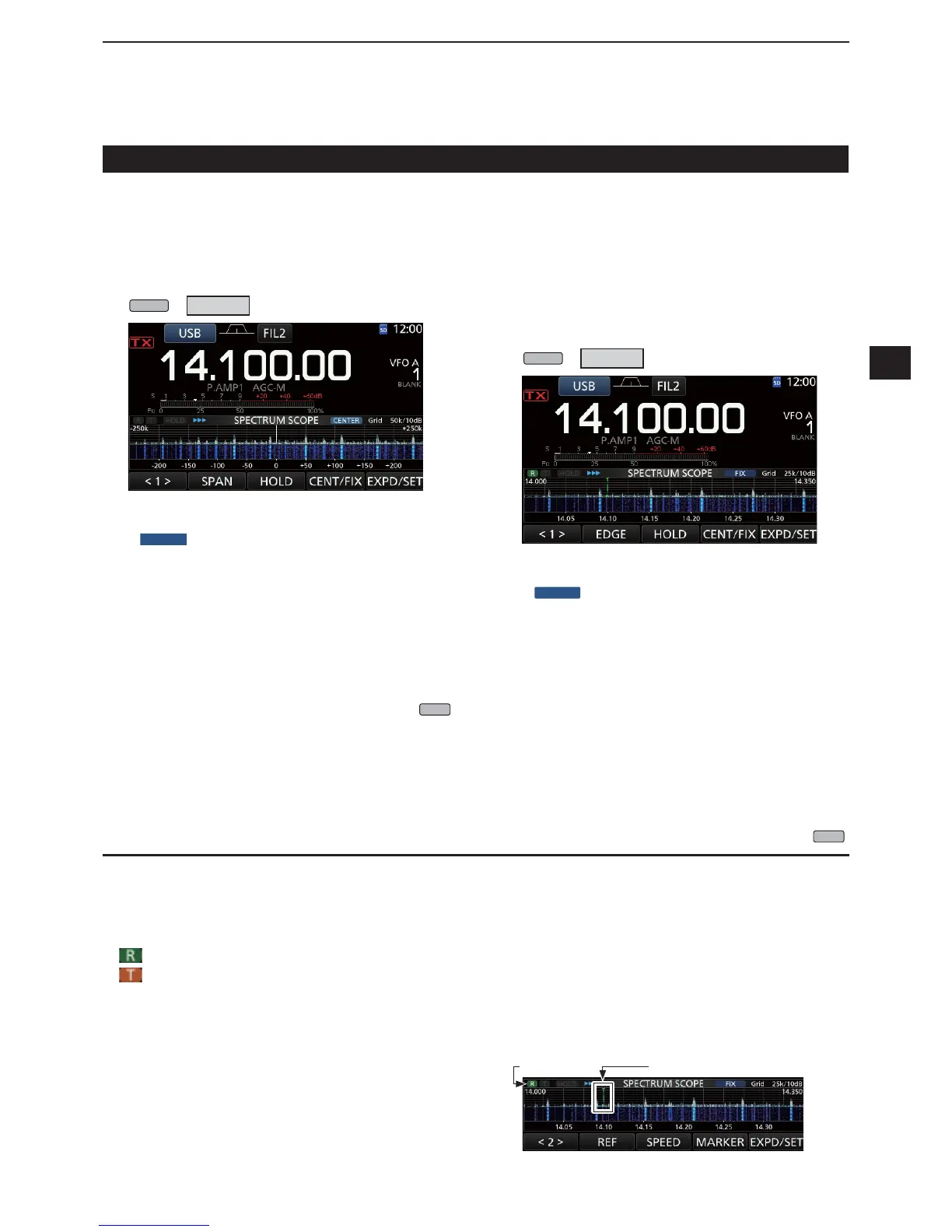

5-2
D Center mode
Displays signals around the operating frequency
within the selected span. The operating frequency is
always displayed in the center of the screen.
1. Open the SPECTRUM SCOPE screen.
MENU
»
SCOPE
2. Touch [CENT FIX].
•“
CENTER
” is displayed when the Center mode is
selected.
LTouch [CENT FIX] to toggle between the Center and
Fixed modes.
3. Touch [SPAN] several times to select the scope
span.
• Selectable span 
2.5, 5.0, 10, 25, 50, 100, 250 and 500 kH
LTouch [SPAN] for 1 second to select the 2.5 kH
span.
4. To exit the SPECTRUM SCOPE screen, push
EXIT
.
2. Touch [CENT FIX].
•“
FIX
” is displayed when the Fixed mode is
selected.
LTouch [CENT FIX] to toggle between the Center and
Fixed modes.
3. Touch [EDGE] several times to select the Edge
frequency.
L When the operating frequency moves outside
the upper or lower Edge frequency, “ ” or “ ”
is dispalyed in the upper side corners of the
SPECTRUM SCOPE screen.
The frequency is outside the lower edge.
The frequency is outside the higher edge.
When the frequency goes further away, “Scope Out
of Range” is displayed.
4. To exit the SPECTRUM SCOPE screen, push
EXIT
.
D Fixed mode
'LVSOD\VVLJQDOVZLWKLQDVSHFL¿HGIUHTXHQF\UDQJH
The selected frequency band activity can easily be
observed this mode.
Three Fixed Edge bands can be set for each amateur
frequency band covered by the transceiver in the
SCOPE SET screen.
1. Open the SPECTRUM SCOPE screen.
MENU
»
SCOPE
D Mar er
The Marker displays the operating frequency in the
SPECTRUM SCOPE screen.
•
Touch [MARKER] to select the marker.
• When the Center mode is selected
TX, Marker OFF
• When the Fixed mode is selected
RX TX, RX
L When the Maker is displayed and the frequency is
out of range, “ ” or “ ” is displayed in the upper
side corners of the SPECTRUM SCOPE screen.
The frequency is outside the lower edge.
The frequency is outside the higher edge.
About RX Mar er
In the Fixed mode, the RX Marker displays the
RSHUDWLQJIUHTXHQF\ZLWKLQDVSHFL¿HGIUHTXHQF\
range. So, the transceiver always displays the RX
marker in the scope screen.
In the Center mode, the operating frequency stays on
the Center of the screen. Thus, the transceiver does
not display the RX Marker.
LWhen the Hold function is ON, the RX Marker is displayed
to display the operating frequency’s position.
Spectrum scope screen (Continue)
Center mode screen
Fixed mode screen
MarkerMarker icon
RX Marker ON (Fixed mode)
