1-1

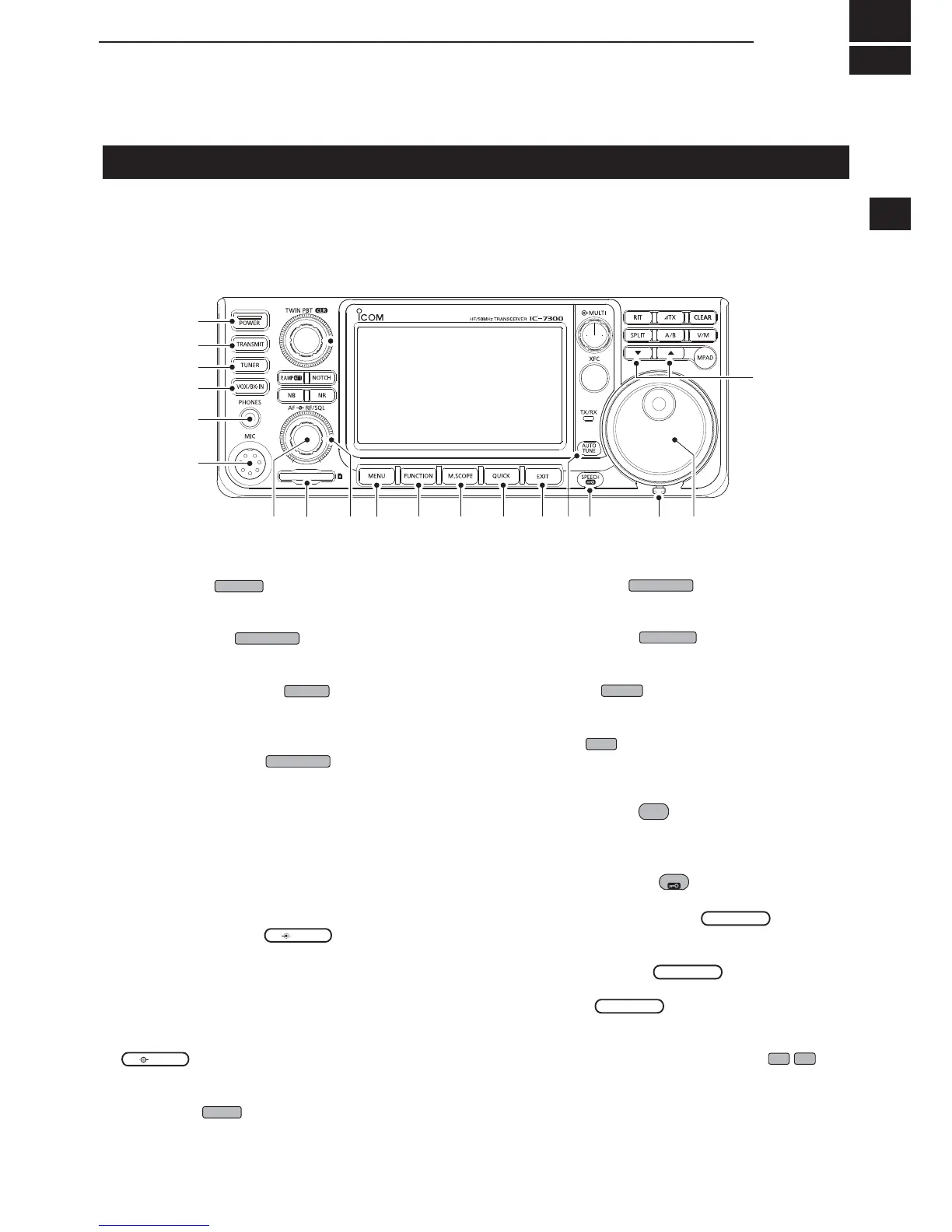

Front panel
q POWER KEY
POWER
(p. 3-1)
Turns the transceiver ON or OFF.
w TRANSMIT KEY
TRANSMIT
(p. 3-9)
Toggles between transmit and receive.
e ANTENNA TUNER KEY
TUNER
(p. 7-1)
Turns the antenna tuner ON or OFF, or activates
the tuner.
r VOX/BREAK-IN KEY
VOX/BK-IN
Turns the VOX function (p. 4-7) and Break-in
function (p. 4-12) ON or OFF.
t HEADPHONE JACK [PHONES] (p. 2-1)
Connects to a standard stereo headphones.
y MICROPHONE CONNECTOR [MIC] (p. 2-1)
Connects to the supplied or an optional microphone.
u VOLUME CONTROL
AF RF/SQL
(p. 3-1)
Adjusts the audio output level.
i SD CARD SLOT [SD CARD] (p. 6-1)
Accepts an SD card.
o RF GAIN CONTROL/SQUELCH CONTROL
AF RF/SQL
(p. 3-9)
Adjusts the RF gain and squelch threshold levels.
!0 MENU KEY
MENU
(p. 1-6)
Opens the MENU screen.
q
w
e
r
t
y
i !0 !1 !2 !3 !4 !6 !7u o !8!5
!9
!1 FUNCTION KEY
FUNCTION
(p. 1-6)
Displays the FUNCTION screen.
!2 MINI SCOPE KEY
M.SCOPE
(p. 5-1)
Displays the Mini Scope or Spectrum Scope.
!3 QUICK KEY
QUICK
(p. 1-6)
Displays the QUICK MENU.
!4 EXIT KEY
EXIT
(p. 1-6)
Exits a setting screen or returns to the previous
screen.
!5 AUTO TUNE KEY
AUTO
TUNE
(p. 4-13)
Automatically tunes the operating frequency to a
received CW signal.
!6 SPEECH/LOCK KEY
SPEECH
(p. 3-9)
Announces the operating frequency or receiving
mode, or electronically locks
MAIN DIAL
.
!7 TENSION ADJUSTER
Adjusts the friction of
MAIN DIAL
.
!8 MAIN DIAL
MAIN DIAL
(p. 3-3)
Changes the operating frequency.
!9 MEMORY CHANNEL UP/DOWN KEY
Ÿ
/
ź
Changes the Memory channel.
This section describes the keys, controls and dials that you use to operate the IC-7300.
Refer to the pages posted beside each key, control, or dial for details.
