34
7
DSC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

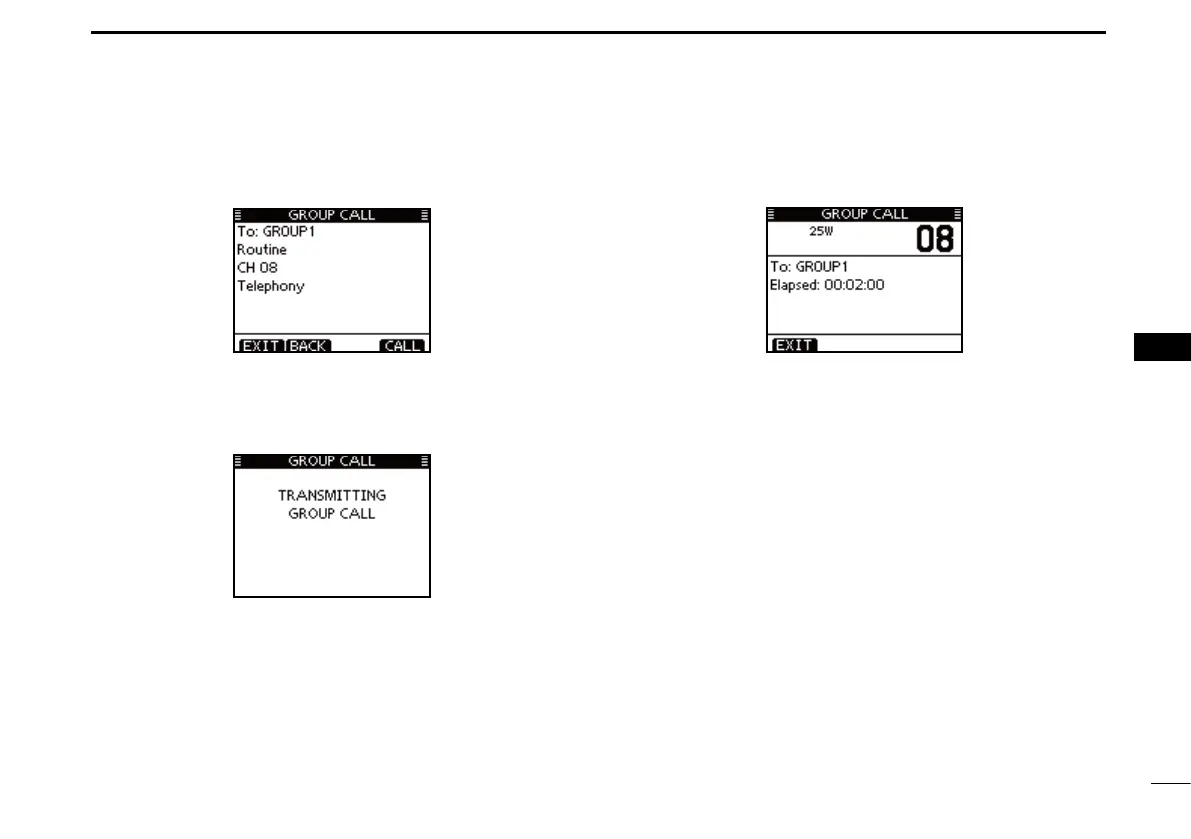

r A confirmation screen is displayed.
 •Conrmthecallcontents.
Push [CALL] to transmit the Group call. t
 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel
becomes clear.
After the Group call has been transmitted, the following y
screen is displayed.
Announce the information using the microphone. u
After the announcement, push [EXIT] to return to the nor- i
mal operating mode.
