Icom IC-M506 Instruction Manual

45
7
DSC OPERATION
New2001New2001

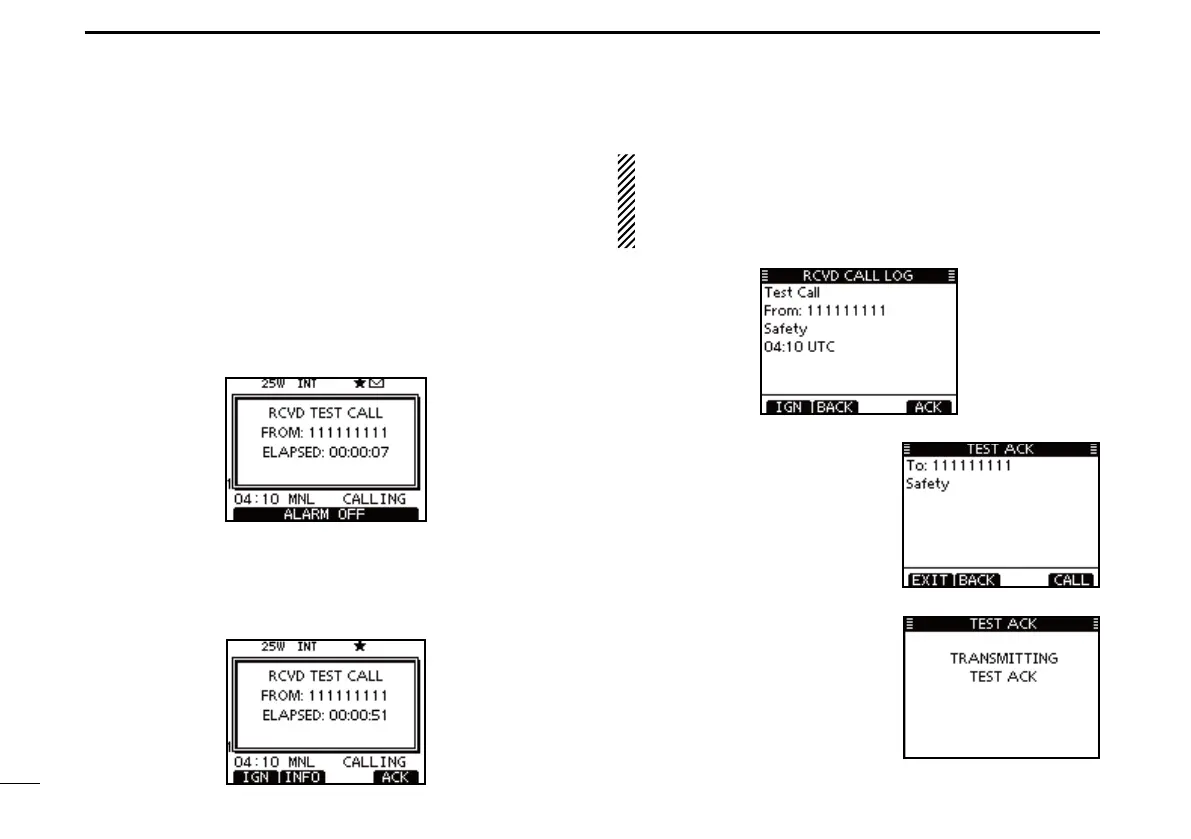

D Transmitting a Test Acknowledgement call
When the “TEST ACK” in DSC settings is set to ‘Auto’
(p. 68), the transceiver automatically transmits a reply call
when receiving a Test call.
Quick ACK:
q When a Test call is received, alarm sounds and the screen
shown below is displayed.
Push [ALARM OFF] to stop the alarm.
 •Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
Push [ACK]. w
 •Push[IGN]toignorethecallandreturntothenormaloperating
mode.
 •Push[INFO]todisplaytheTestcallinformation.
About Received call information:
•Push[IGN]toignorethecallandreturntothenormaloperating
mode.
•Push[BACK]toreturntothepreviousscreen.
•Push[ACK]togotothenextstep.
The Test ACK confirmation e
screen is displayed.
Push [CALL] to transmit the
acknowledgement call.
 •Push [EXIT] to return to the
normal operating mode.
While transmitting the ac- r
knowledgement call, the
screen shown below is dis-
played, and then returns to
the normal operating mode.
