NMEA 2000 CONNECTION (Depending on versions)
10
Description ■
NMEA 2000 is a communication standard used to connect
various marine devices and display units in the vessel.
The IC-M506 can easily connect to a NMEA 2000 network
with its plug-and-play functionality, and display the informa-
tion provided from the devices on the network.
D NMEA 2000 settings
Select the sensors in NMEA 2000 network which sends data
to the transceiver.

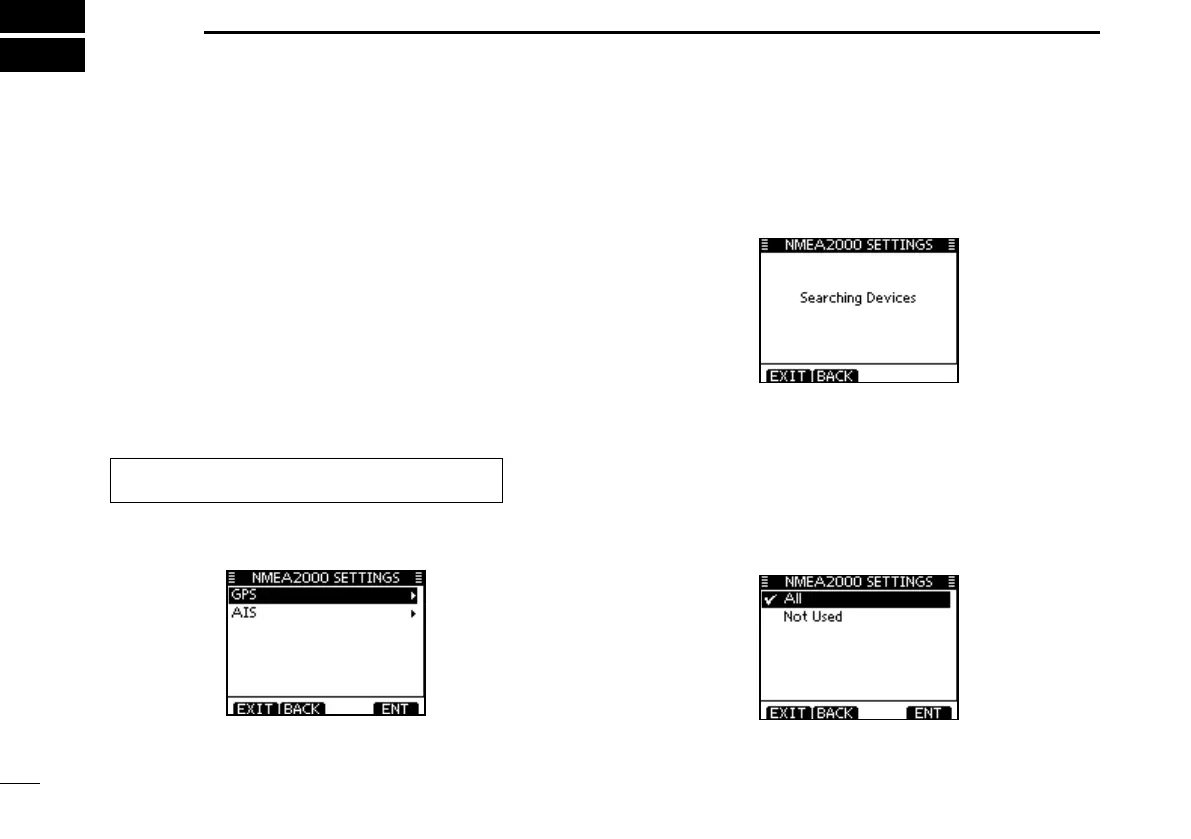

q Enter “NMEA 2000 SETTINGS” menu in the menu
screen.
w Select the type of data from the menu screen and push
[ENT].
e The transceiver starts searching the devices connected to
NMEA 2000 network.
r The list of connected device is displayed.
t Select the device to send the data to transceiver and push
[ENT].
 •Push[INFO]todisplaythedetailofdevice.
 •IfthetransceiverisconnectedtobothNMEA0183andNMEA
2000 devices, the NMEA 2000 device has priority. Select “Not
Used” if you want to use NMEA 0183 devices.
 •Push[BACK]toreturntothepreviousscreen.
y Push [EXIT] to exit the MENU screen.
MENU ➪ NMEA 2000
(Push [MENU]) (Select icon)
