OPTIONAL INSTALLATIONS
TV-R7100
TV RECEIVE ADAPTER

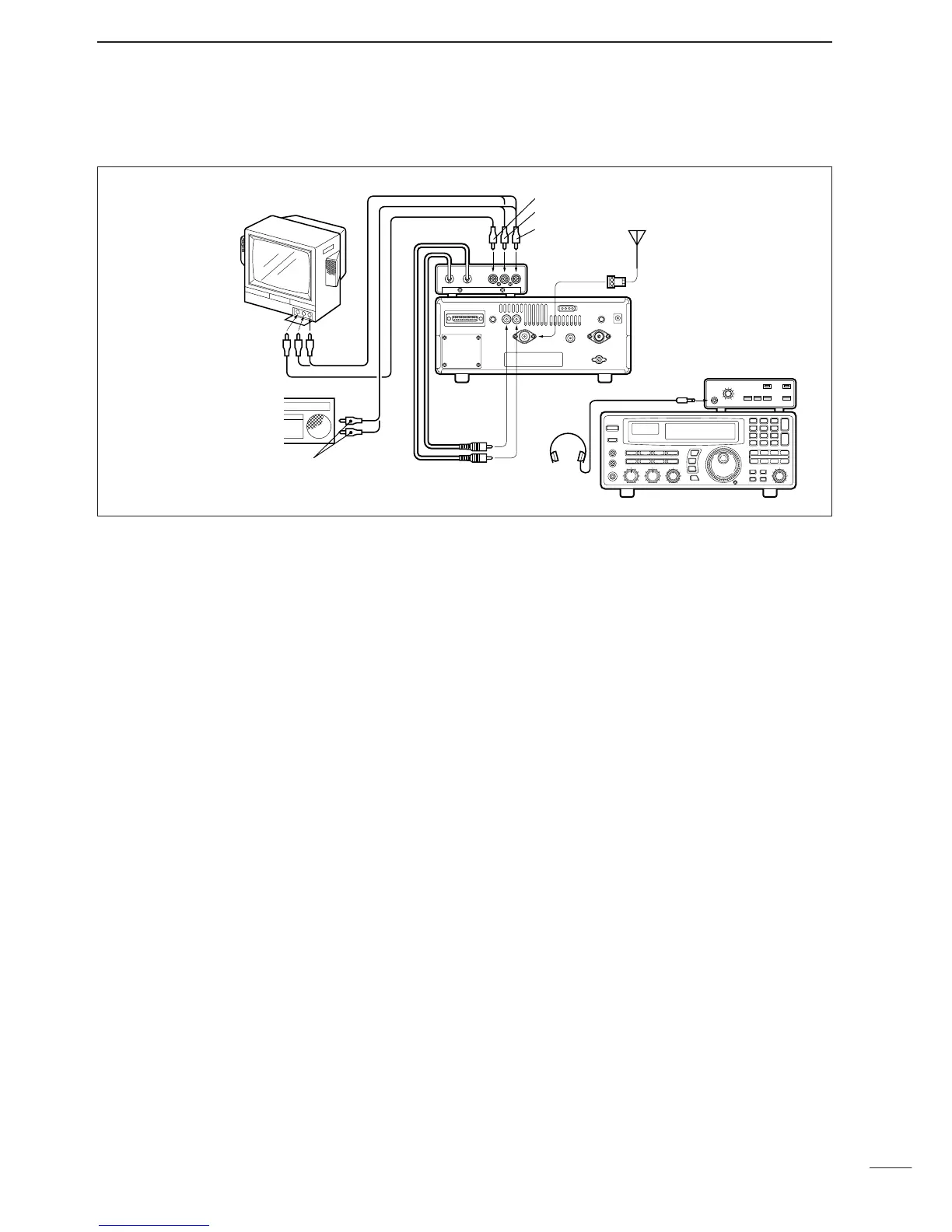

D Connections
D Operation
Turn on the TV-R7100, IC-R8500 and all connected
equipment.
Select WFM mode.
Push OUT [FM/TV] on the TV-R7100 to select
“TV” when receiving TV broadcasts or ATV.
Push IN [FM/TV] on the TV-R7100 to select “FM”
when receiving FM broadcasts in stereo.
Set the frequency of the audio center frequency of
the desired TV or FM signals by the main dial or di-
rect keypad entry.
The FM center indicator on the IC-R8500’s function dis-
play is useful for tuning.
Pictures appear on your TV screen and sound is emitted.
D TV-R7100 specifications
General
Power supply requirement:9 V negative ground
(supplied from the IC-
R8500)
Current drain:Approx. 100 mA
(when receiving no sig-
nal)
Dimensions:110(W)×35(H)×200(D) mm;
4.3(W)×1.4(H)×7.9(D) in
(projections not included)
Weight:750 g; 1.7 lb
Headphone jack impedance:32 (approx.)
TV receiver
Video carrier input frequency:15.2 MHz
(U.S.A. ver-
sion)
16.2 MHz
(Europe ver-
sion)
Audio carrier input frequency:10.7 MHz
Audio intermediate frequency:4.5 MHz
(U.S.A. version)
5.5 MHz
(Europe version)
Video output level:1 V p-p (75 )
Audio output level:300 mVrms/47 k load
(U.S.A. version)
400 mVrms/47 k load
(
Europe
version
)
FM receiver
Intermediate frequency:10.7 MHz
Selectivity:230 kHz/–6 dB
Audio output level:300 mV/47 k
Stereo separation:More than 30 dB (1 kHz)
TV-R7100
stereo
headphones
Antenna
yellow
white*
red
[IF OUT]
red from
[IF IN]
black from
[TV CONTROL]
Red to right
White to left
Yellow: no connection
Red to right*
White to left
Yellow to video
*When the TV set
has only one audio
jack, connect the
white cable only.
[AGC]
