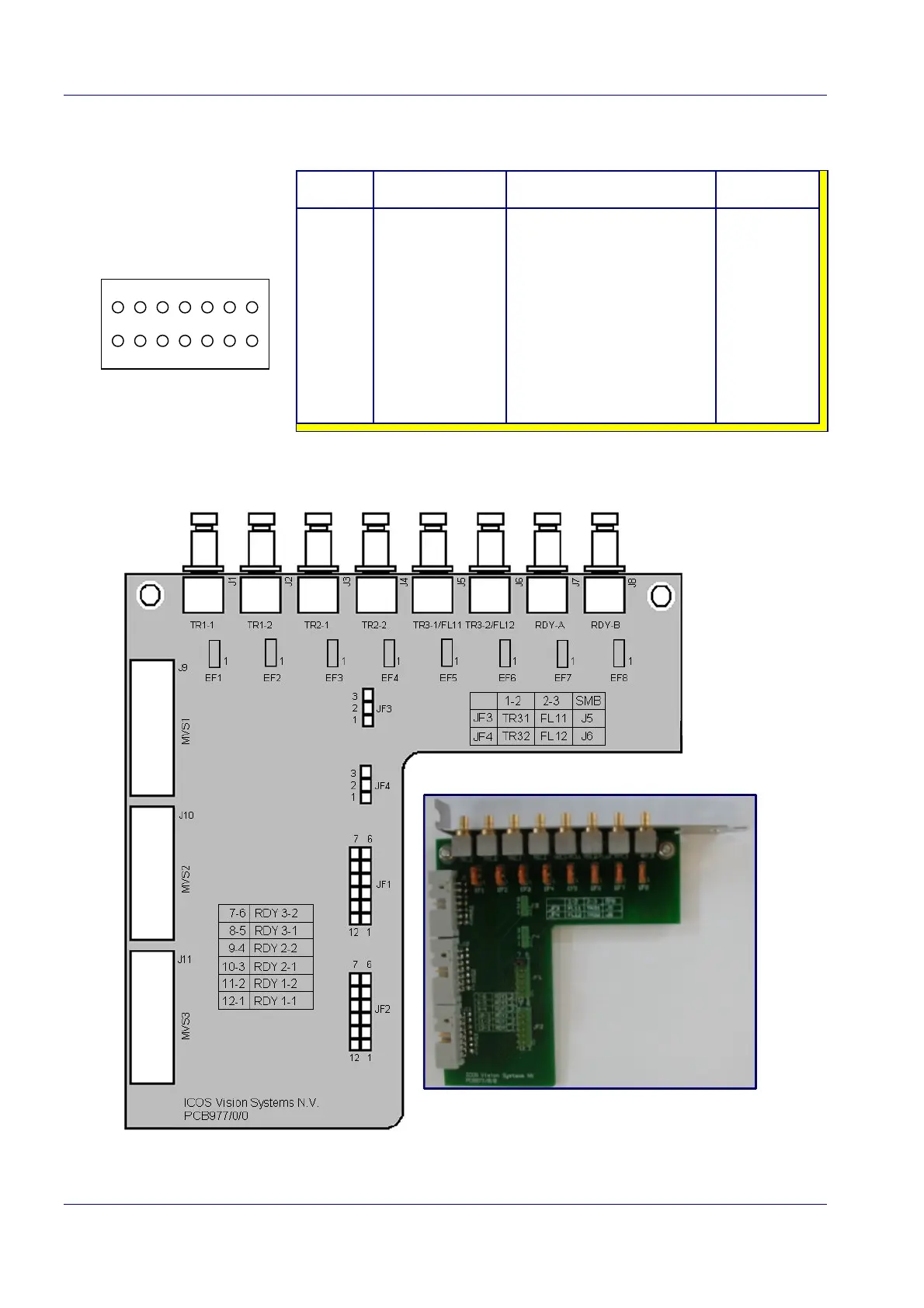

C1: flash trigger connector
Pin assignments:
Pin # Signal name Function Direction
8-14
1
2
3
4
5
6
7
GND
FLASH1
TRRDY1
TRIN1
FLASH2
TRRDY2
TRIN2
NC
Ground
Flash channel 1
Trigger ready channel 1
Trigger input channel 1
Flash channel 2
Trigger ready channel 2
Trigger input channel 2
Not Connected
-
output
output
input
output
output
input
-
Note: A Flash trigger board, using SMB snap-on connectors, is available for easy connection.
