Hardware

MVS6000 System Level Manual/1.0/Dec-2001 2-5

2.1.5 Communication

· PCI pipe communication

· RS232 communication:

The following baud rates are supported: 110, 300, 600, 1200, 2400, 4800, 9600, 14400,

19200, 38400, 57600, 115200.

Note:

ICOS provides the WinCommDll.dll for the communication (see page 5-2). This

driver is available for WinNT4.0 and Win2000 (and can also be used for the ISA

and HS3L communication on MVS3xx and MVS100/200).

When no serial communication is used, the baud rate should be set to 0. This

will improve the performance of the system.

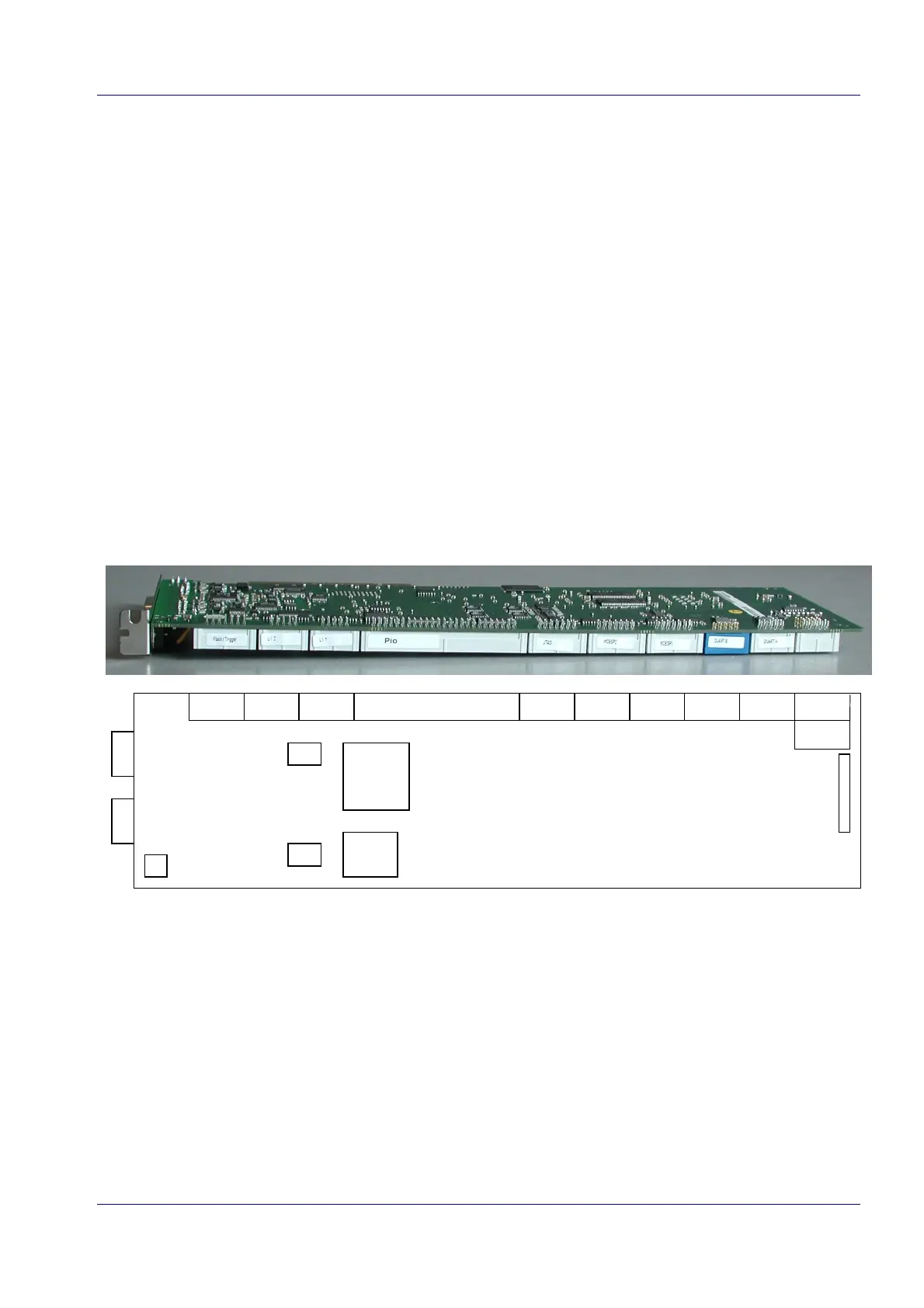

2.1.6 Flat Cable Connectors

The connectors at the topside of the board are labeled:

Each connector is explained in detail on the next page.

C1 C2 C3 C4 C5 C6 C7 C8 C9 C10

C11

xilinx

plx

SW2

SW1

JF4

JF3
