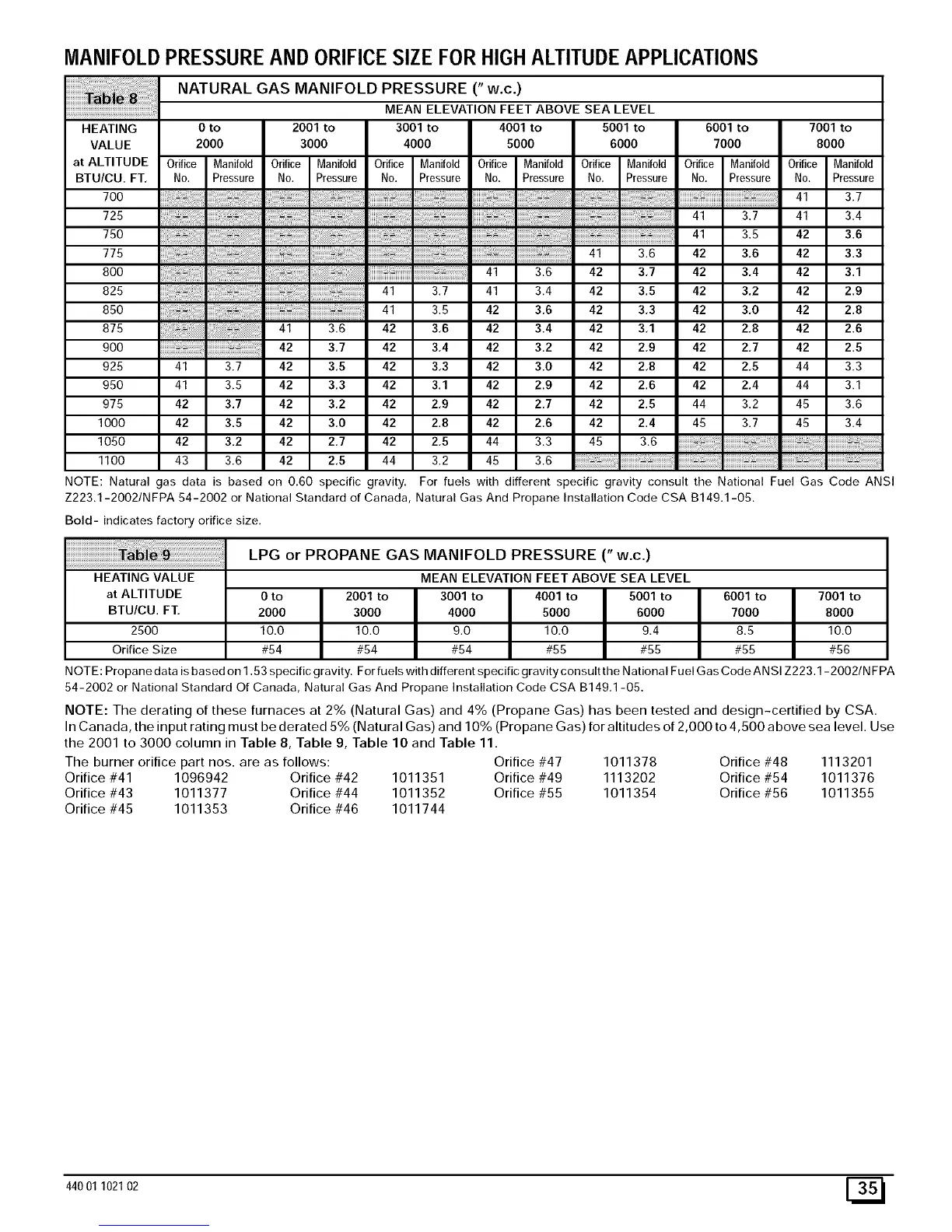

MANIFOLDPRESSUREAND ORIFICESIZE FORHIGHALTITUDEAPPLICATIONS
iiiiiiiiiiiiiiiiiliiiii
NATURAL GAS MANIFOLD PRESSURE (" w.c.)
.............................................................. MEAN ELEVATION FEET ABOVE SEA LEVEL
HEATING 0 to 2001 to 3001 to 4001 to 5001 to 6001 to 7001 to
VALUE 2000 3000 4000 5000 6000 7000 8000
at ALTITUDE Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold
BTU/CU. FT. No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure
700 41 3.7
725 41 3.7 41 3.4
750 41 3.5 42 3.6
775 41 3.6 42 3.6 42 3.3
800 41 3.6 42 3,7 42 3,4 42 3.1
825 41 3.7 41 3.4 42 3.5 42 3.2 42 2.9
850 41 3.5 42 3.6 42 3,3 42 3,0 42 2.8
875 41 3.6 42 3,6 42 3.4 42 3,1 42 2,8 42 2.6
900 42 3.7 42 3.4 42 3.2 42 2,9 42 2.7 42 2.5
925 41 3.7 42 3,5 42 3,3 42 3.0 42 2,8 42 2,5 44 3.3
950 41 3.5 42 3.3 42 3.1 42 2.9 42 2.6 42 2.4 44 3.1
975 42 3.7 42 3,2 42 2,9 42 2.7 42 2.5 44 3.2 45 3.6
1000 42 3.5 42 3.0 42 2.8 42 2.6 42 2.4 45 3.7 45 3.4
1050 42 3.2 42 2,7 42 2.5 44 3.3 45 3.6
1100 43 3.6 42 2,5 44 3.2 45 3.6
NOTE: Natural gas data is based on 0.60 specific gravity.
Z223.1-2002/NFPA 54-2002 or National Standard of Canada, Natural Gas And Propane Installation Code CSA B149.1-05.
Bold- indicates factory orifice size.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i : i!i ! ! ! ! i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i
HEATING VALUE
at ALTITUDE
BTU/CU. FT.
2500
Orifice Size
_!% _i_i_i_i_i_i_i_i_i_i_i_i_i_!_i_i_i_i_i_i_i_i_i_i_i_i_i__i_i_i_i_i_i_i_i_i_i_i_!%:;ii_i_i_i_i_i_i_i_i_i_i_i_i¸_¸_;_¸i¸_%i_¸i_¸i_¸i_¸i_¸i_iiiiiiiiiiiiiiiiii!_i_i_i!ii!ii!ii!ii!ii!ii!ii!ii!i!ii!iiiiiiiiiiiiiiiiiiiiiiiiiiii!_i_i_i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!i!i
For fuels with different specific gravity consult the National Fuel Gas Code ANSI
LPG or PROPANE GAS MANIFOLD PRESSURE (" w.c.)
MEAN ELEVATION FEET ABOVE SEA LEVEL
0 to 2001 to 3001 to 4001 to 5001 to
2000 3000 4000 5000 6000
10.0 10.0 9.0 10.0 9.4
#54 #54 #54 #55 #55
6001 to 7001 to
7000 8000
8.5 10.0
#55 #56
NOTE: Propane data isbased on 1.53 specific gravity. For fuels with different specific gravity consult the National Fuel Gas Code ANSI Z223.1-2002/N FPA
54-2002 or National Standard Of Canada, Natural Gas And Propane Installation Code CSA B149.1-05.
NOTE: The derating of these furnaces at 2% (Natural Gas) and 4% (Propane Gas) has been tested and design-certified by CSA.
In Canada, the input rating must be derated 5% (Natural Gas) and 10% (Propane Gas) for altitudes of 2,000 to 4,500 above sea level. Use
the 2001 to 3000 column in Table 8, Table 9, Table 10 and Table 11.
The burner orifice part nos. are as follows: Orifice #47 1011378 Orifice #48 1113201
Orifice #41 1096942 Orifice #42 1011351 Orifice #49 1113202 Orifice #54 1011376
Orifice #43 1011377 Orifice #44 1011352 Orifice #55 1011354 Orifice #56 1011355
Orifice #45 1011353 Orifice #46 1011744
44001 102102 E_
