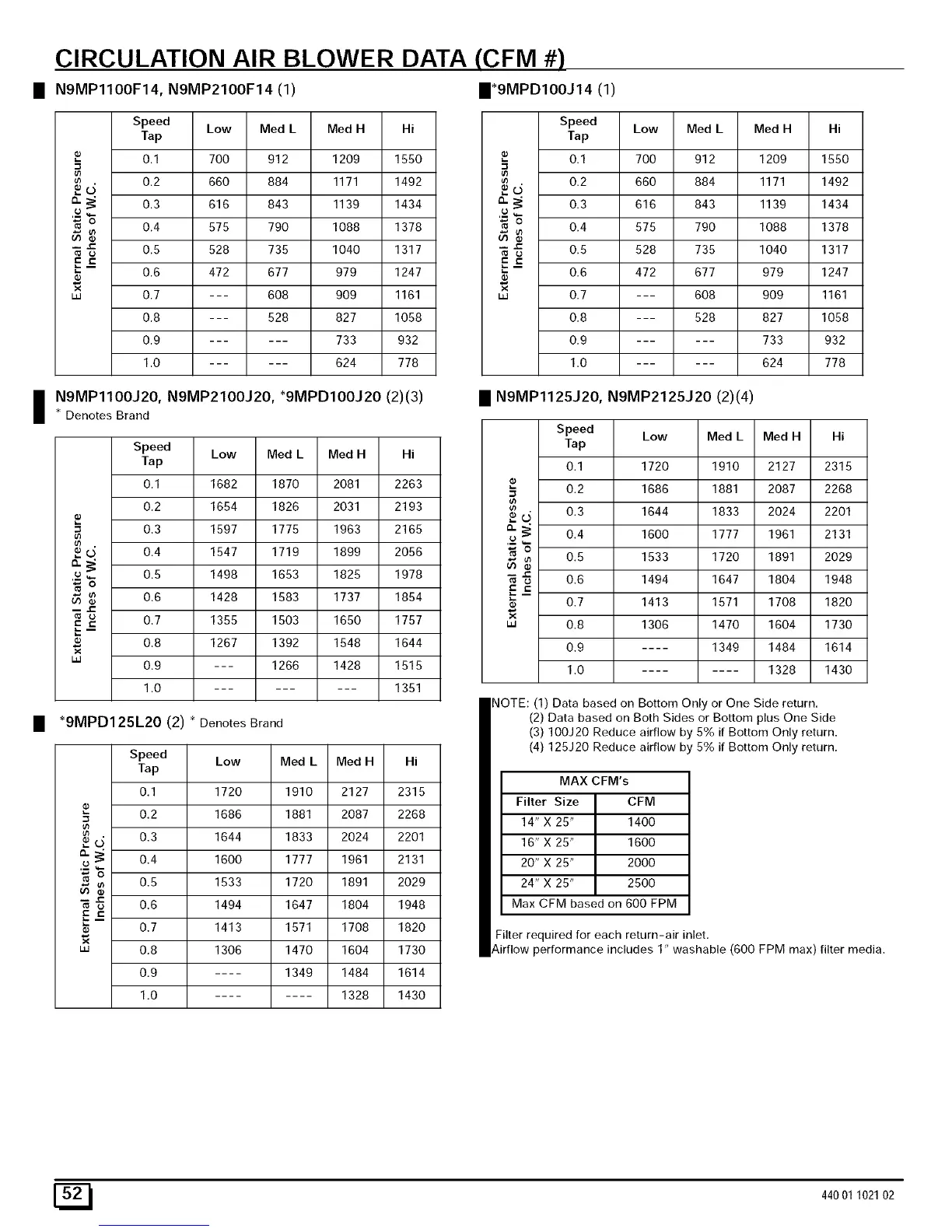

CIRCULATION AIR BLOWER DATA (CFM #)
I N9MP1100F14, N9MP2100F14 (1) 1*9MPD100J14 (1)
_d
k. ,
m
X
_J
Speed
_p
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Low Med L Med H
700 912 1209
660 884 1171
616 843 1139
575 790 1088
528 735 1040
472 677 979
--- 608 909
--- 528 827
...... 733
...... 624
Hi Speed Low Med L
Tap
1550 '_ 0.1 700 912
1492 _ cj 0.2 860 884
k.
1434 a. _ 0.3 816 843
O
',_ o 0.4 575 790
1378 _ ¢_
1317 _ .c 0.5 528 735
1247 _ -- 0.6 472 677
X
1161 uJ 0.7 --- 608
1058 0.8 --- 528
932 0.9 ......
778 1.0 ......
Med H Hi
1209 1550
1171 1492
1139 1434
1088 1378
1040 1317
979 1247
909 1161
827 1058
733 932
624 778
I N9MP1100J20, N9MP2100J20, *9MPD100J20 (2)(3)
* Denotes Brand
I
Speed Low Med L Med H Hi
Tap
0.1 1682 1870 2081 2263
0.2 1654 1826 2031 2193
= 0.3 1597 1775 1963 2165
_ 0.4 1547 1719 1899 2056
° 0.5 1498 1653 1825 1978
'go
_ 0.6 1428 1583 1737 1854
_ 0.7 1355 1503 1650 1757
--
0.8 1267 1392 1548 1644
x
w 0.9 --- 1266 1428 1515
1.0 ......... 1351
*gMPD125L20 (2) * Denotes Brand
Speed Low Med L Med H Hi
Tap
0.1 1720 1910 2127 2315
0.2 1686 1881 2087 2268
. 0.3 1644 1833 2024 2201
,9 _ 0.4 1600 1777 1961 2131
_o
_ 0.5 1533 1720 1891 2029
° 0.6 1494 1647 1804 1948
0.7 1413 1571 1708 1820
w 0.8 1306 1470 1604 1730
0.9 .... 1349 1484 1614
1.0 ........ 1328 1430
II N9MP1125J20, N9MP2125J20 (2)(4)
Speed Low Med L Med H Hi
Tap
0.1 1720 1910 2127 2315
,e 0.2 1686 1881 2087 2268
d 0.3 1644 1833 2024 2201
,£ 0.4 1600 1777 1981 2131
_ 0.5 1533 1720 1891 2029
"_ 0.6 1494 1647 1804 1948
0.7 1413 1571 1708 1820
uJ 0.8 1306 1470 1604 1730
0.9 .... 1349 1484 1614
1.0 ........ 1328 1430
NOTE: (1) Data based on Bottom Only or One Side return.
(2) Data based on Both Sides or Bottom plus One Side
(3) 100J20 Reduce airflow by 5% if Bottom Only return.
(4) 125J20 Reduce airflow by 5% if Bottom Only return.
MAX CFM's
Filter Size CFM
14"X 25" 1400
16"X 25" 1600
20"X 25" 2000
24"X 25" 2500
Max CFM based on 600 FPM
Filter required for each return-air inlet.
)erformance includes 1" washable (600 FPM max) filter media.
