Installation and Servicing
SECTION 1 - GENERAL
CH FLOW
COND DRAIN
GAS INLET
CH RETURN
PRV
DATA PLATE
Underside View - Pipe Dimensions to Wall
Water Connections and Gas Connection
W A L L
EXTERNAL ENCLOSURE

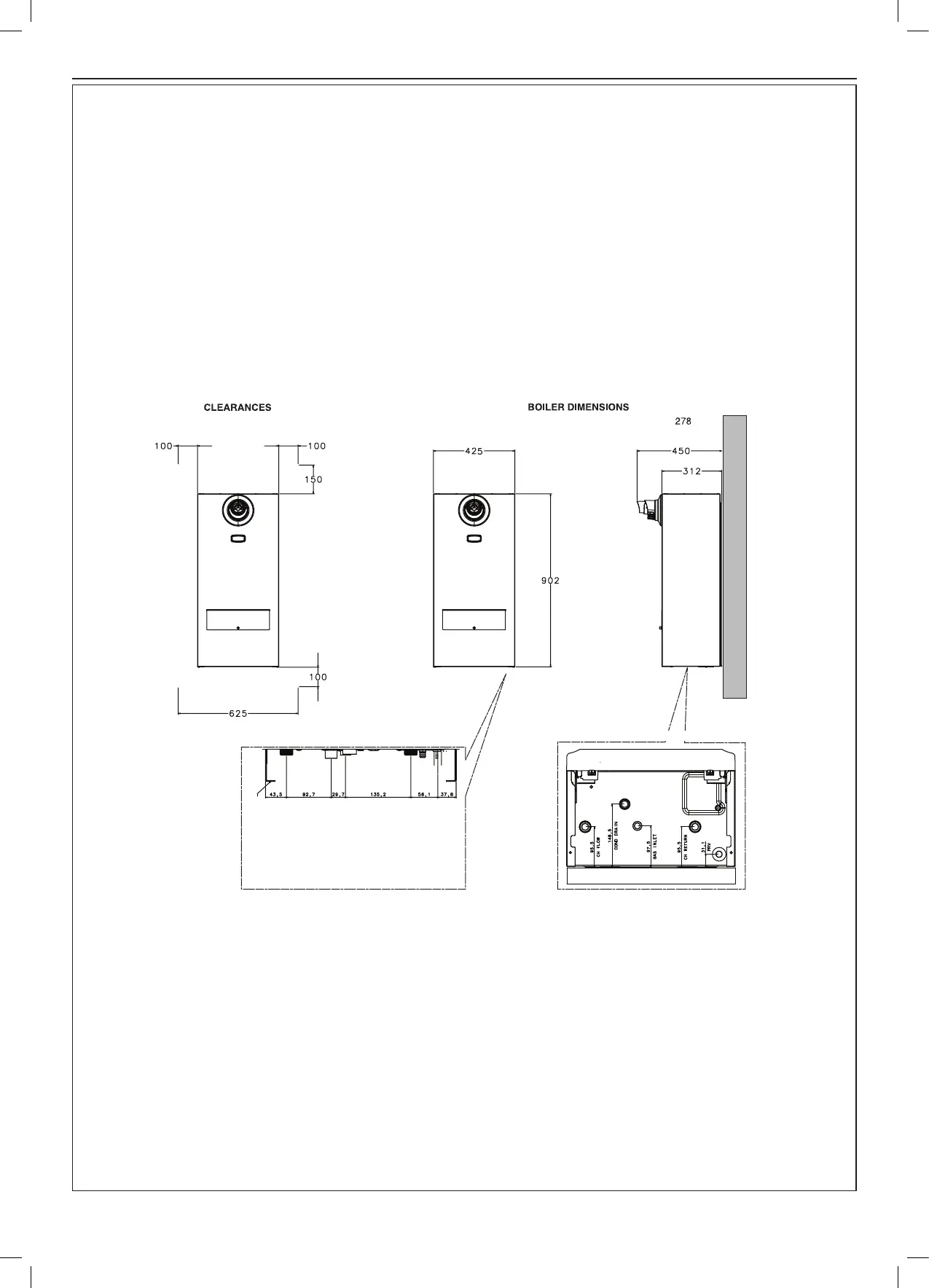

1.17 BOILER DIMENSIONS, SERVICES & CLEARANCES - EXTERNAL
all dimensions in mm
The boiler connections are made on the boiler connection tails.
Refer to Section 2.19.
The following minimum clearances must be maintained for
operation and servicing.
Additional space will be required for installation, depending upon
site conditions.
