Installation and Servicing
SECTION 2 - INSTALLATION
Note that item numbers are linked to the spares list
240
522
241
242
523
524
239
521
520
605
501
501

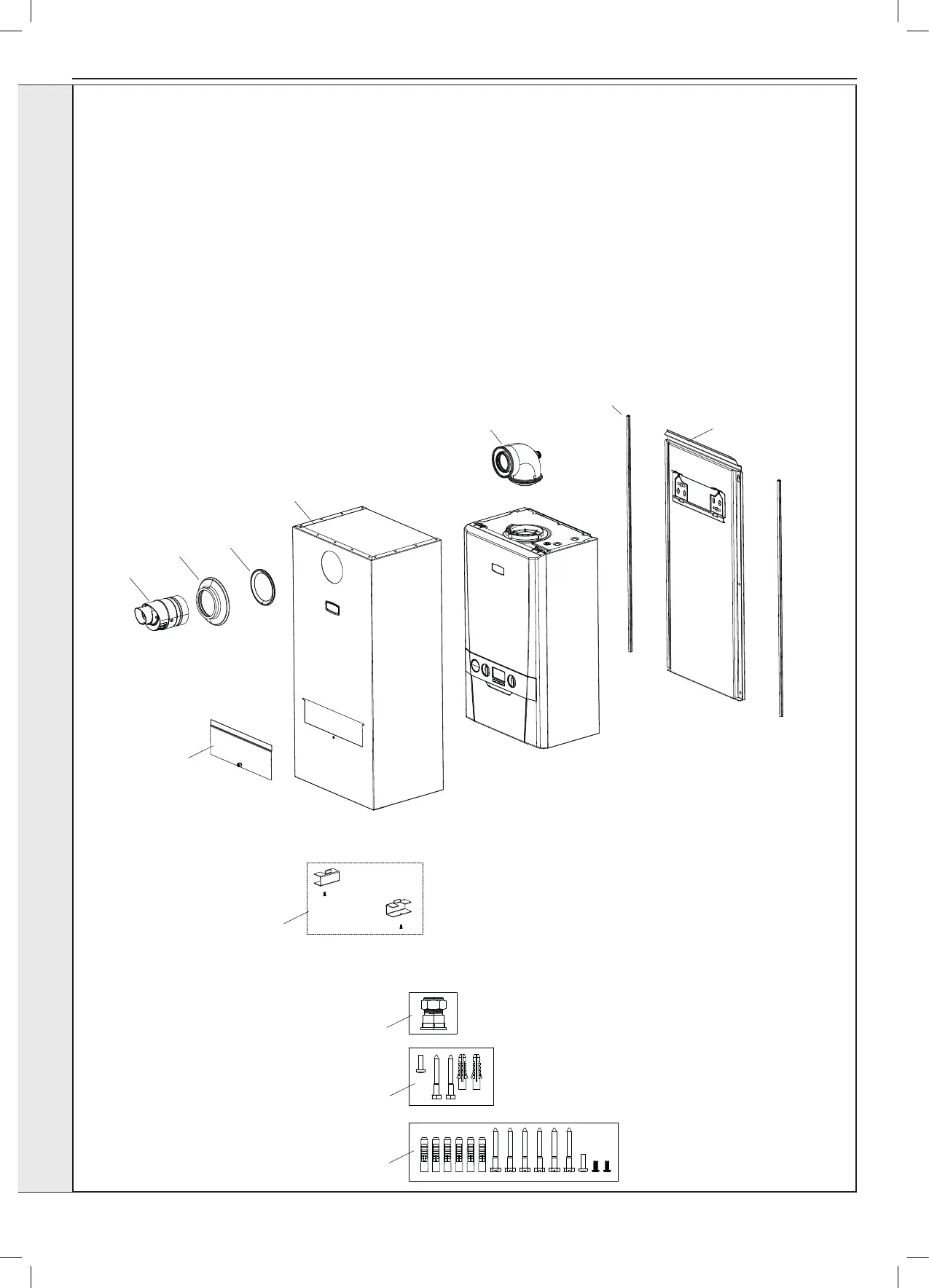

2.2 EXTERNAL BOILER ASSEMBLY - Exploded View
239 Flue Turret
240 Flue Terminal
241 Flue Terminal Seal
242 External Flue Terminal Aperture Seal
501 Internal Boiler Accessory Pack
501 External Boiler Accessory Pack
520 Wall Mounting Bracket Assembly
521 Wall Mounting Bracket Seal Kit
522 Front Removable Panel
523 Securing Bracket Kit
524 Front Panel Assembly
605 PRV Compression Coupler
