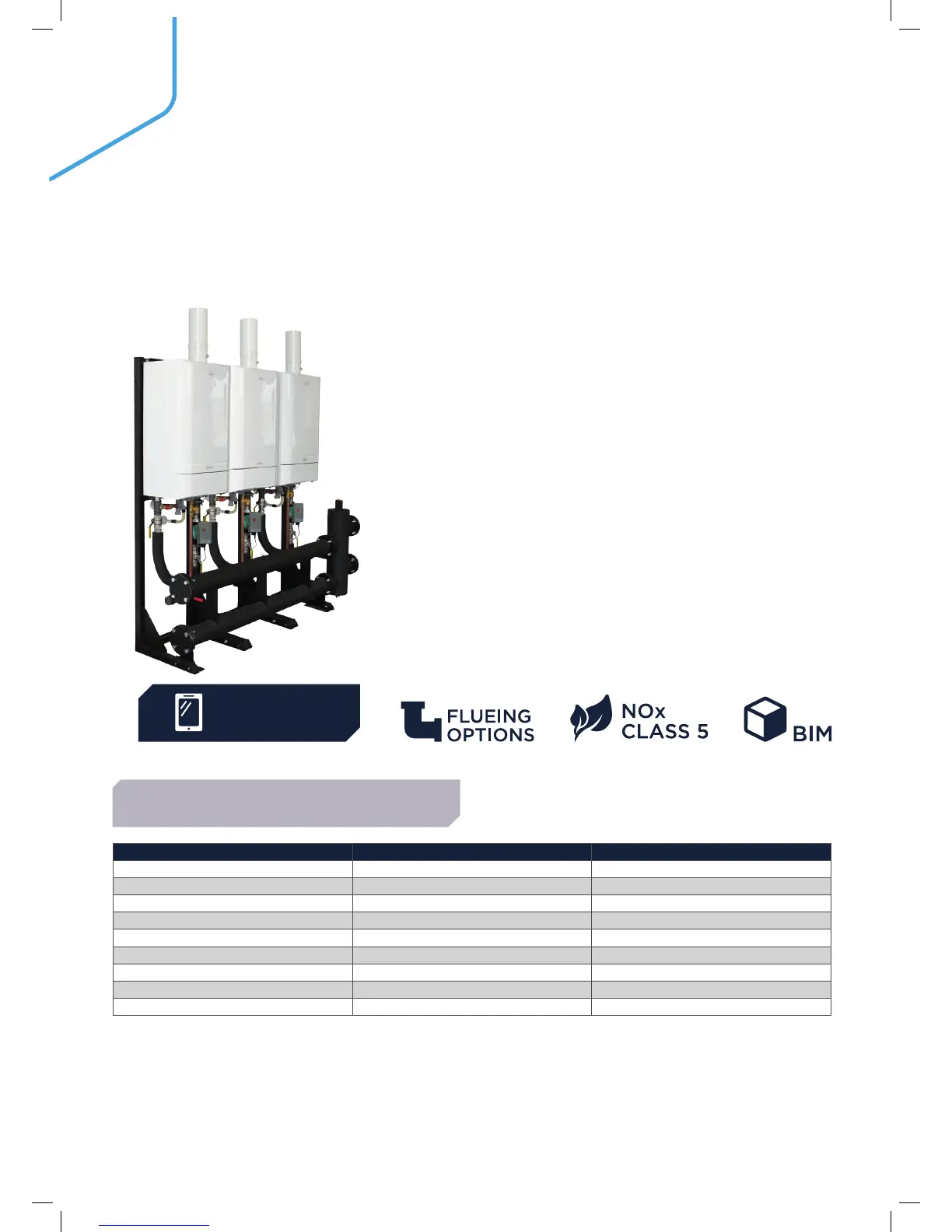

EVOMAX CASCADE
FRAME & HEADER KITS
BOILER FRAME AND HEADER KITS
The Frame and Header Kits are suitable for modular (cascade) boiler
installations, and are available up to a maximum output of
600 kW, in both in-line and back-to-back arrangements.
IN-LINE KITS
Kits include flow & return headers with mixing header and gas
header, all with fixing brackets. For easy connection flexible stainless
steel pipe and connections are supplied together with pressure relief
valves, boiler shut off valves and drain cock.
Appropriately sized ErP modulating shunt pumps are also included.
Flow, return and low loss headers together with the flexible boiler
connections are all pre insulated. Separate single boiler frame kits
are available for use with in-line kits if required.
BACK-TO-BACK KITS
Kits include all the in-line contents plus the required special frame
kits for such compact installations. Both types of kit are available
for the following number of boilers and sizes. Mixing header kits and
modulating pump kits are also available separately.
In-line kits do not include the support frame as the boilers can be wall mounted, but a frame kit is
available if the wall is unsuitable to facilitate boiler mounting.
For full details of all configurations & specifications, please refer to the installation manual.
MODELS SIZE
2 boilers 30-100 DN80
2 boilers 120-150 DN80
3 boilers 30-100 DN80
3 boilers 120-150 DN100
4 boilers 30-100 DN100
4 boilers 120-150 DN100
5 boilers 30-100 DN100
5 boilers 120 DN100
6 boilers 30-100 DN100
Please note, the Evomax boilers are to be ordered separately.
