SYSTEM CONFIGURATIONS
The Multiline Flue Cascade is one of the latest additions to the flue accessory range from Ideal, designed
specifically for the Evomax range. Available for installations up to 600kW as both a starter kit and extension pack
the Multiline system enables Evomax boilers installed as open flue to be connected via a common flue header. This
creates a single flue connection point for a flue specialist to design to knowing that the boiler installation is efficient
and safe.
The Cascade flue system is supplied in two kits. A Starter Kit & an Extension Kit.
Wire retaining clips are also provided to prevent movement of the tube connections
due to expansion and contraction. These must be fitted to the ductwork to ensure safe
operation of the system.
• Simple system ordering with a
starter kit and extension kits
• Starter kit includes, appliance
connection, non-return flue damper,
condensate tee and trap and all
clips to secure the flue
• Extension pack includes appliance
connection, non-return flue damper,
and all clips to secure the flue
• Available for both 80/125 & 100/150
flue adaptor applications
• For installations up to 600kW
• Type B23 flue
• Designed specifically to work
efficiently with Evomax appliances
with commissioning simply
completed by selecting Multiline
flue from the installer set up menu
• The perfect addition for Evomax
installations using either the
standard height or low frame and
header kits
PRODUCTS STARTER KIT EXTENSION KIT
1 End Cap
R
2 Siphon / Condensate trap
R
3 Collector Pipe (200 dia)
R R
4 Elbow (90 x 100)
R R
5 Non-Return Valve Connector (100 x 150)
R R
6 Non-Return Valve Body (150 x 100 or 80)
R R
7 Flue Extension Tube (100 or 80)
R R
8 Air Intake Grill
R R
9 Flue Connector (100/150 or 80/125)
R R
OPTION GAS TYPE EVOMAX MODELS
MAX NUMBER
OF BOILERS
MAX SYSTEM
CAPACITY
1
Natural gas
Combinations of 100,
120, 150
6 600kW
2
Combinations
that include a
30, 40, 60 or 80
6 400kW
3 Propane
Combinations of
30P, 40P, 60P, 80P
6 400kW
MULTILINE CASCADE
The Multiline Flue Cascade is one of latest additions to the fl ue accessory range from
Ideal, designed specifi cally for the Evomax range. Available for installations up to
600kW as both a starter kit and extension pack the Multiline system enables Evomax
boilers installed as open fl ue to be connected via a common fl ue header. This creates
a single fl ue connection point for a fl ue specialist to design to knowing that the boiler
installation is effi cient and safe.
MULTILINE FLUE CASCADE.
EVOMAX.
• Simple system ordering with a starter kit
and extension kits
• Starter kit includes, appliance
connection, non-return fl ue damper,
condensate tee and trap and all clips to
secure the fl ue
• Extension pack includes appliance
connection, non-return fl ue damper, and
all clips to secure the fl ue
• Available for both 80/125 & 100/150 fl ue
adaptor applications
• For installations up to 600kW
• Designed specifi cally to work
effi ciently with Evomax appliances with
commissioning simply completed by
selecting Multiline fl ue from the installer
set up menu
• The prefect addition for Evomax
installations using either the standard
height or low frame and header kits
Ideal Commercial Boilers
PO Box 103, National Avenue
Kingston upon Hull
East Yorkshire, HU5 4JN
T: 01482 440237
commercial@idealboilers.com
IDEALCOMMERCIALBOILERS.COM

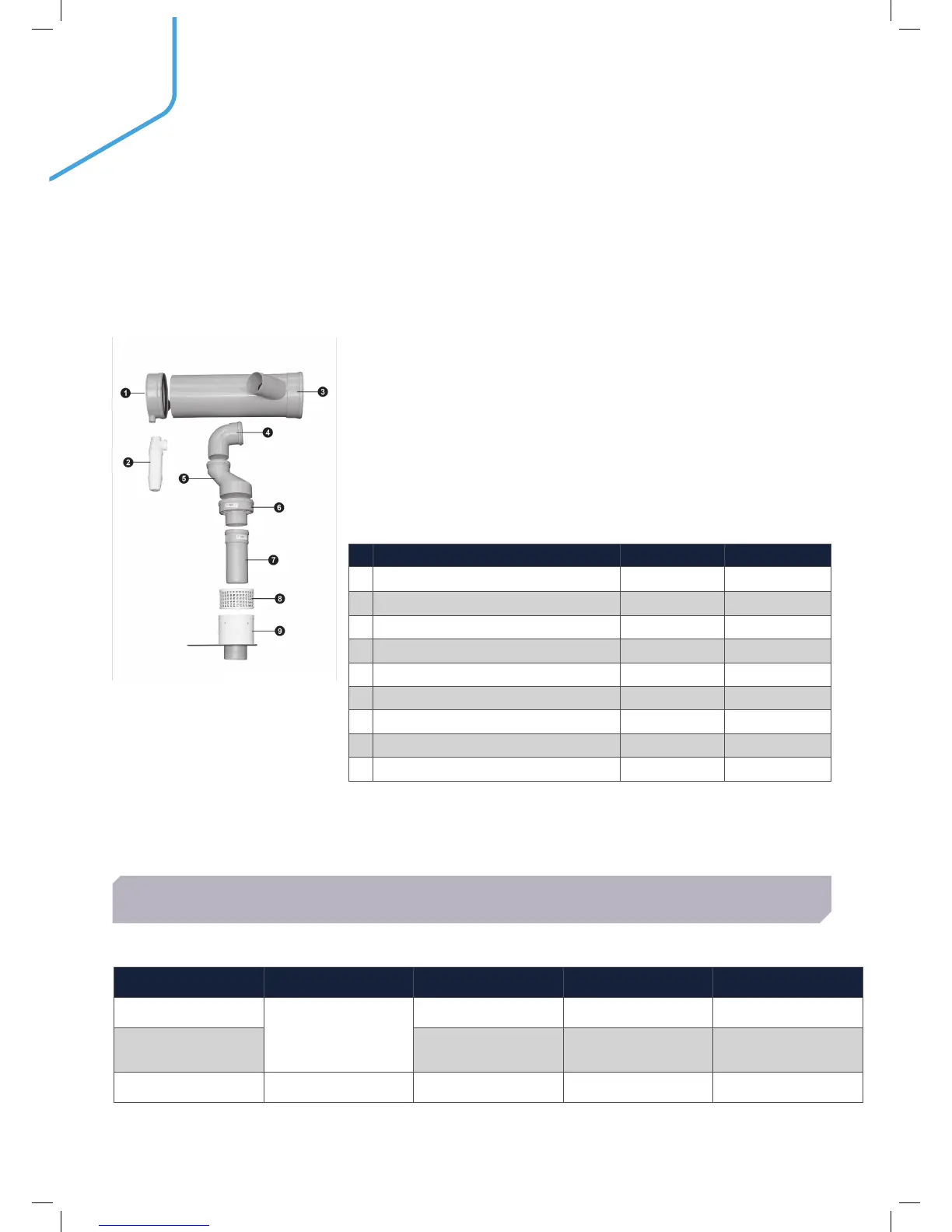

The Cascade fl ue system is supplied in two kits. A Starter Kit & Extension Kit.
Wire retaining clips are also provided to prevent movement of the tube connections by the infl uence of
expansion and contraction. These must be fi tted to the ductwork to ensure safe operation of the system.
PRODUCTS STARTER KIT EXTENSION KIT
1 End Cap
P
2 Siphon
P
3 Collector Pipe (200 dia)
P P
4 Elbow (90
0
x 100)
P P
5 Non-Return Valve Connector (100 x 150)
P P
6 Non-Return Valve Body (150 x 100 or 80)
P P
7 Flue Extension Tube (100 or 80)
P P
8 Air Intake Grill
P P
9 Flue Connector (100/150 or 80/125)
P P
CASCADE FLUE KITS
