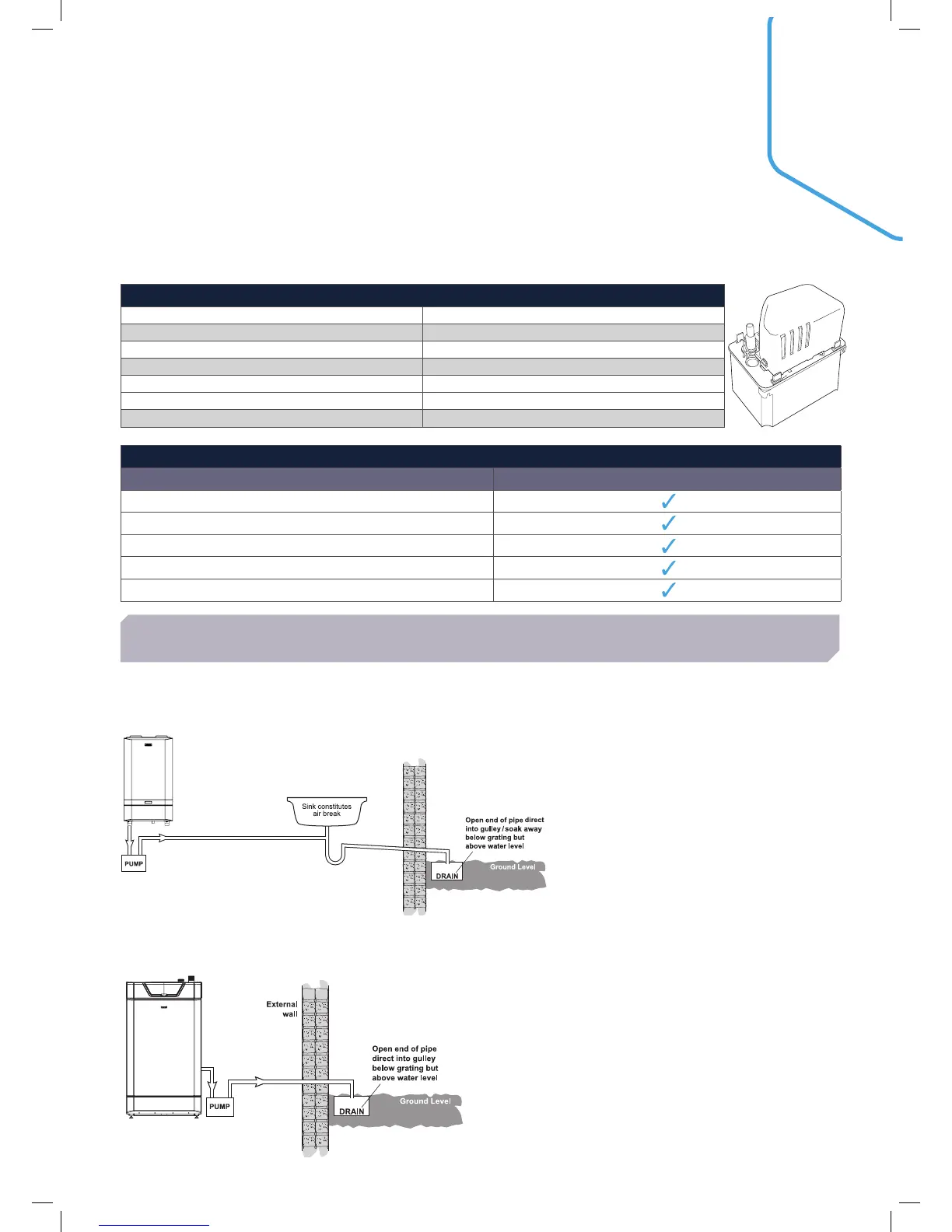

TYPICAL CONDENSATE SYSTEMS
CONDENSATE PUMPS
The condensate pump is designed to collect and remove condensate and can be used
with high efficiency condensing boilers.
TECHNICAL INFORMATION
Maximum flow rate 440 litres/hour
Electrical supply 230V AC / 50-60 Hz 0.8amps
Alarm contact NC 4 Amps resistive
Overheat protection 130˚C
Tank Capacity 2.0 Litres
Maximum vertical head 4.5m
Maximum horizontal length 30m
IDEAL COMMERCIAL BOILERS - CONDENSATE PUMP COMPATABILITY
BOILER COMPATABLE
EVOMAX - 30 - 150kW
IMAX XTRA - 80 - 280kW
IMAX XTRA EL - 320 - 1240kW
EVOMOD - 250 - 1000kW
EVOJET - 150 - 1450kW
1. INTERNAL TO SINK WASTE UPSTREAM OF SINKWASTE TRAP
2. TERMINATION TO DRAIN / GULLEY
SEE GUIDE FOR FULL INSTALLATION INSTRUCTIONS AND SYSTEM OPTIONS
