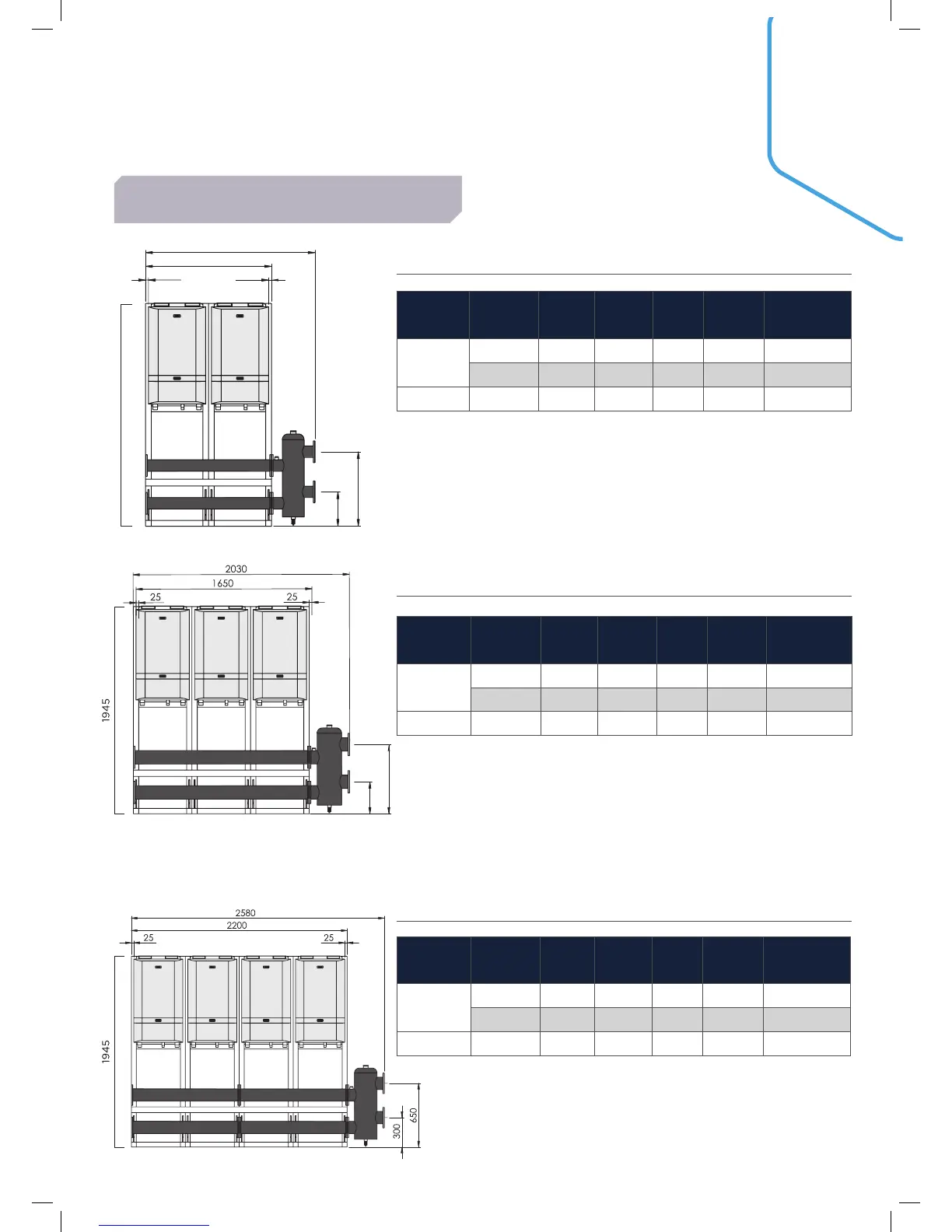

IDEAL Evomax 30 Product Guide

17
FRAME & HEADER KITS
300
650
300
650
1100
25
1480
25
2 X EVOMAX 30 - 150 KW
3 X EVOMAX 30 - 150 KW
4 X EVOMAX 30 - 150 KW
HEADER
KITS
RATING
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN
FLANGE
SIZE
CONCENTRIC
FLUE
UIN209799
30-80kW 1945 1100 552 DN80 80/125
100kW 1945 1100 552 DN80 100/150
UIN209798 120-150kW 1945 1100 552 DN80 100/150
HEADER
KITS
RATING
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN
FLANGE
SIZE
CONCENTRIC
FLUE
UIN209801
30-80kW 1945 1650 552 DN80 80/125
100kW 1945 1650 552 DN80 100/150
UIN209800 120-150kW 1945 1650 552 DN100 100/150
HEADER
KITS
RATING
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN
FLANGE
SIZE
CONCENTRIC
FLUE
UIN209803
30-80kW 1945 2200 552 DN100 80/125
100kW 1945 2200 552 DN100 100/150
UIN209802 120-150kW 1945 2200 552 DN100 100/150
1945
300
650
300
650
1100
25
1480
25
300
650
300
650
1100
25
1480
25
Measurements are without boilers attached. 100-150kW boilers are deeper than Frame and Header Kit.
Measurements are without boilers attached. 100-150kW boilers are deeper than Frame and Header Kit.
Measurements are without boilers attached. 100-150kW boilers are deeper than Frame and Header Kit.
