IDEAL Evomax 30 Product Guide

18

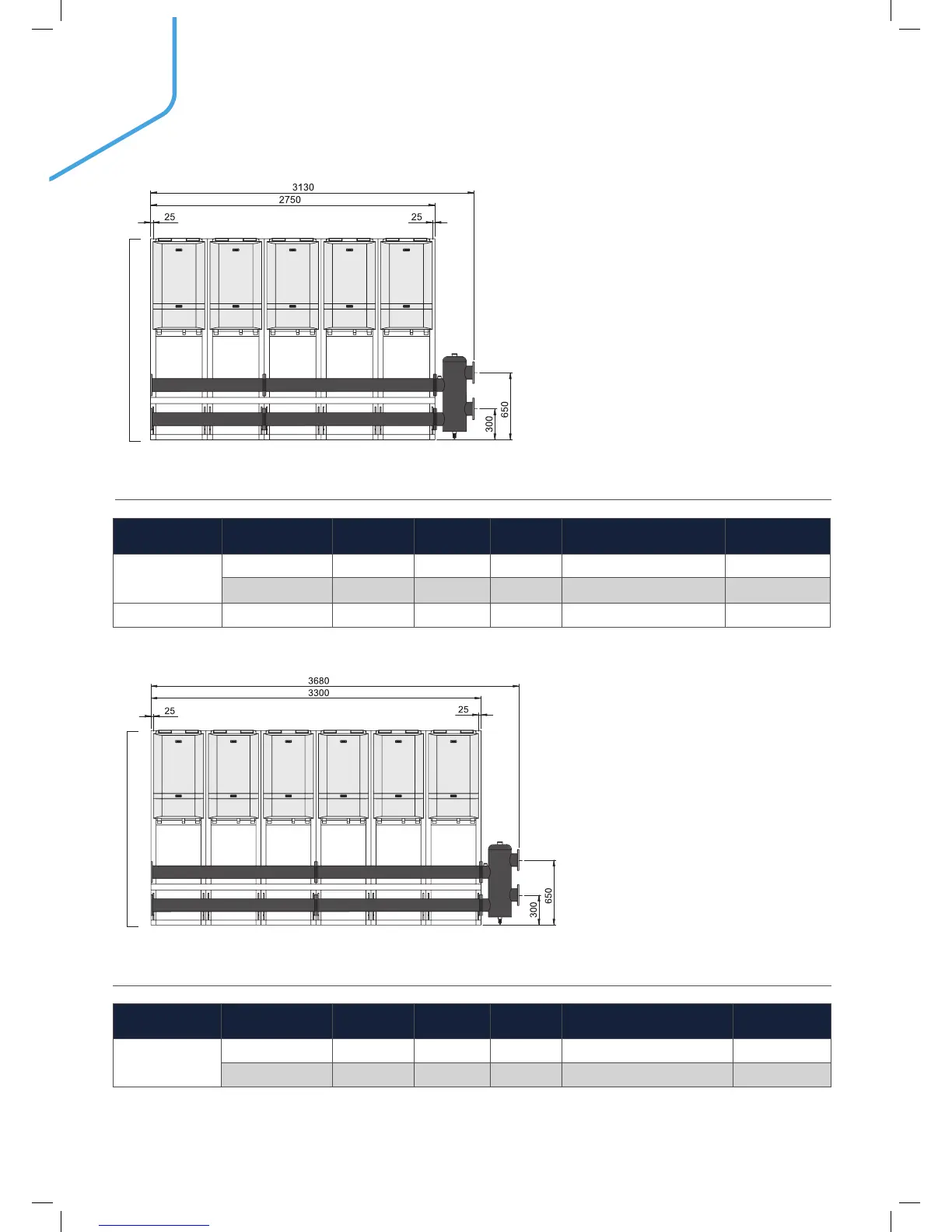

5 X EVOMAX 30 - 120 KW
6 X EVOMAX 30 - 100 KW
300
650
300
650
1100
25
1480
25
1945
300
650
300
650
1100
25
1480
25
1945 1945
HEADER KITS RATING
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN FLANGE SIZE
CONCENTRIC
FLUE
UIN209805
30-80kW 1945 2750 552 DN100 80/125
100kW 1945 2750 552 DN100 100/150
UIN209804 120kW 1945 2750 552 DN100 100/150
HEADER KITS RATING
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN FLANGE SIZE
CONCENTRIC
FLUE
UIN209806
30-80kW 1945 3300 552 DN100 80/125
100kW 1945 3300 552 DN100 100/150
Measurements are without boilers attached. 100-120kW boilers are deeper than Frame and Header Kit.
Measurements are without boilers attached. 100kW boilers are deeper than Frame and Header Kit.
