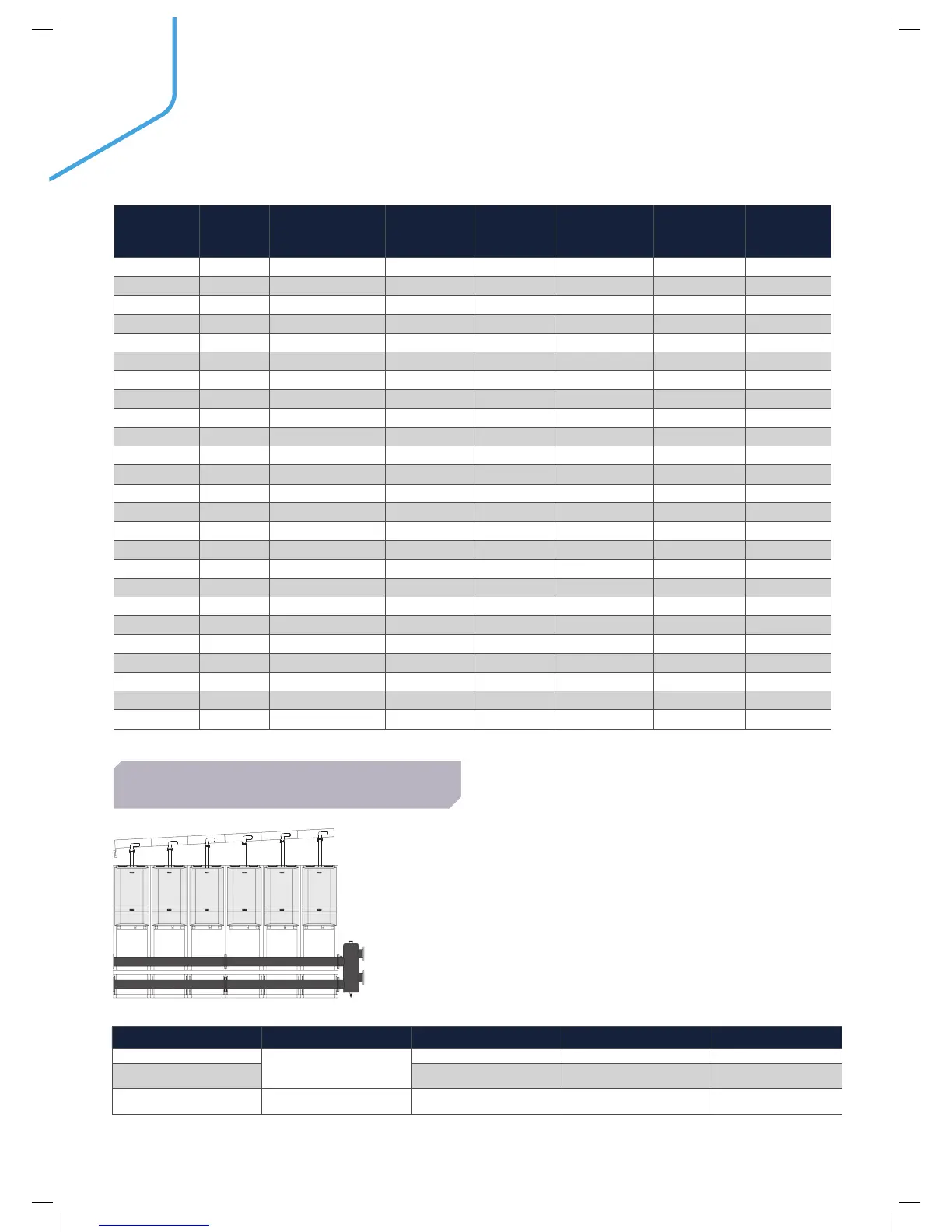

TOTAL OUTPUT
REQUIRED KW
NO. OF
BOILERS
SIDE BY SIDE OPTION –
BOILER MODELS
SIDE BY SIDE
FOOTPRINT SIZE
W X D (MM)
HEADER KIT
PRODUCT NO.
SIDE BY SIDE
BOILER
MODELS
BACK TO BACK
FOOTPRINT SIZE
W X D (MM)
FRAME/HEADER
PRODUCT NO.
BACK TO BACK
360 3 120 2030x663 209800 120 1480x1276 209902
370 5 30, 40, 3 x 100 3130x573 209805 30, 40, 3 x 100 2030x1096 209907
380 4 80, 3 x 100 2030x573 209801 80, 2 x 100 1480x1096 209903
390 3 2 x 120 + 150 2030x663 209800 2 x 120 + 150 1480x1276 209902
400 4 100 2580x573 209803 100 1480x1096 209905
410* 5 30, 80, 3 x 100 3130x573 209805 30, 80, 3 x 100 2030x1096 209907
420 3 120, 2 x 150 2030x663 209800 120, 2 x 150 1480x1276 209902
430* 5 30, 4 x 100 2580x573 209805 30, 4 x 100 1480x1096 209905
440* 5 40, 4 x 100 2580x573 209805 40, 4 x 100 1480x1096 209905
450 3 150 2030x663 209800 150 1480x1276 209902
460* 5 60, 4 x 100 3130x573 209805 60, 4 x 100 2030x1096 209907
470* 6 30, 40, 3 x 100 3680x573 209806 30, 40, 3 x 100 2030x1096 209908
480 4 120 2580x663 209802 120 480x1276 209904
490* 6 30, 60, 4 x 100 3680x663 209806 30, 60, 4 x 100 2030x1096 209908
500 5 100 3130x573 209805 100 2030x1096 209908
510 4 3 x 120 + 150 2580x663 209802 3 x 120 + 150 1480x1276 209904
520* 6 40, 80, 4 x 100 3680x573 209806 40, 80, 4 x 100 2030x1096 209908
530* 6 30, 5 x 100 3680x573 209806 30, 5 x 100 2030x1096 209908
540 4 2 x 120, 2 x 150 2580x663 209802 2 x 120, 2 x 150 1480x1276 209904
550 N/A N /A N /A N/A N/A N /A
560* 6 60, 5 x 100 3680x573 209806 60, 5 x 100 2030x1096 209908
570 4 120, 3 x 150 2580x663 209802 120, 3 x 150 1480x1276 209904
580* 6 80, 5 x 100 3680x573 209806 80, 5 x 100 2030x1096 209908
590 N/A N /A N /A N /A N/A N /A
600 4 150 2580x663 209802 150 1480x1276 209904
SYSTEM DESIGN OPTIONS - CONTINUED
OPTION GAS TYPE EVOMAX MODELS MAX NUMBER OF BOILERS MAX SYSTEM CAPACITY
1
Natural gas
Combinations of 100, 120, 150 6 600kW
2
Combinations that include a
30, 40, 60 or 80
6 400kW
3 Propane
Combinations of
30P, 40P, 60P, 80P
6 400kW
Allows Evomax boilers installed as open flue to be connected via a
common flue header, creating a single line connection point
Basic kit includes, appliance connection, non-return flue damper,
condensate tee and trap and all clips to secure the flue
Extension pack includes appliance connection, non-return
flue damper, and all clips to secure the flue
Available for both 80/125 & 100/150 flue adaptor applications
• For installations up to 600kW as both a starter kit and extension pack
Flue height = 570mm from the top of the first boiler in the system.
Increase the height 29mm for each adjacent boiler.
* Not suitable configuration for multiline flue
FEATURES AND BENEFITS
MULTILINE FLUE CASCADE
