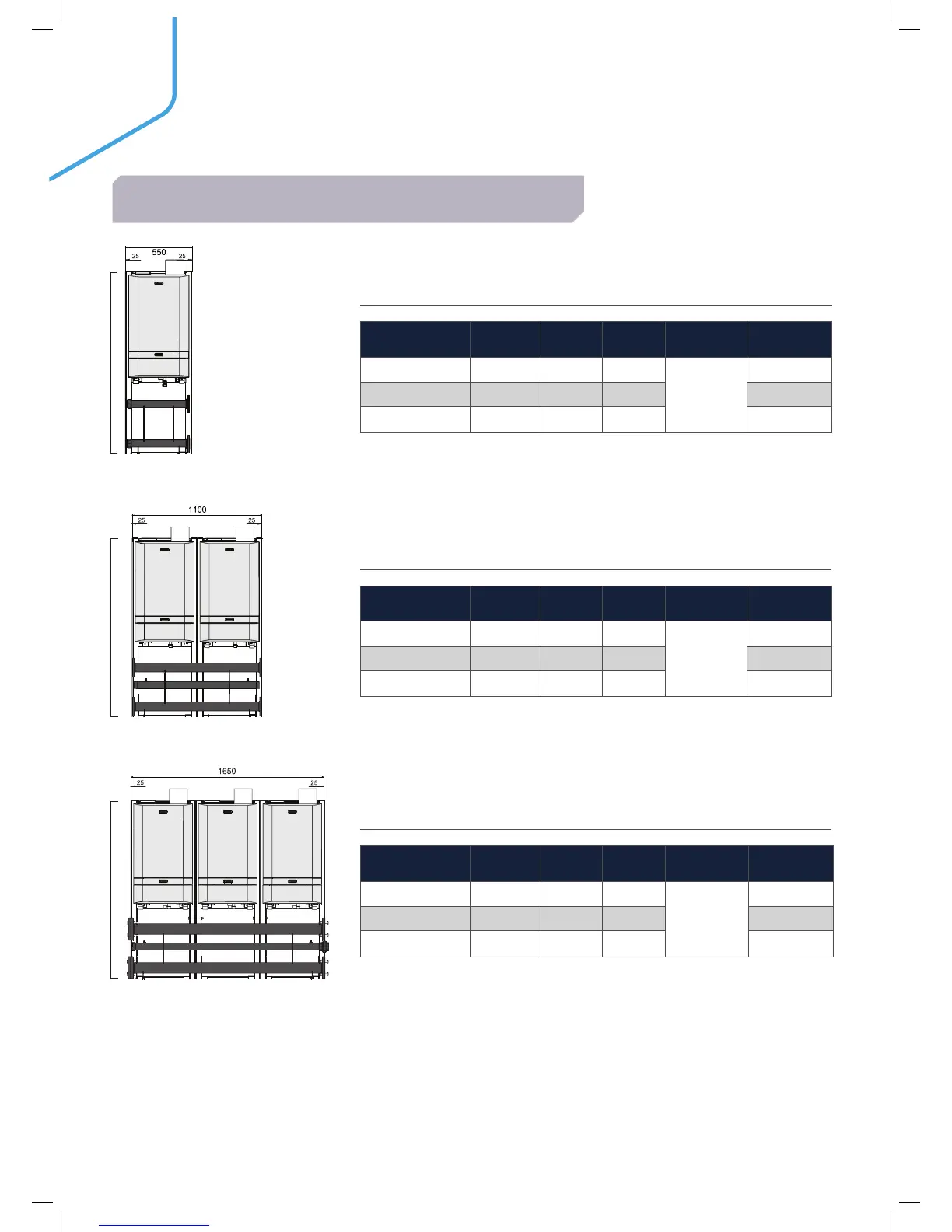

LOW HEIGHT FRAME & HEADER KITS
HEADER KITS
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN FLANGE
SIZE
CONCENTRIC
FLUE
30-80kW 1550 550 642
DN50
(2”BSP)
80/125
100-120kW 1550 550 642 100/150
150kW 1550 550 642 100/150
1 X EVOMAX 30 - 150 KW
1550
HEADER KITS
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN FLANGE
SIZE
CONCENTRIC
FLUE
30-80kW 1550 1650 642
DN80
80/125
100-120kW 1550 1650 642 100/150
150kW 1550 1650 642 100/150
3 X EVOMAX 30 - 150 KW
1550
HEADER KITS
HEIGHT
(mm)
LENGTH
(mm)
DEPTH
(mm)
DN FLANGE
SIZE
CONCENTRIC
FLUE
30-80kW 1550 1100 642
DN65
80/125
100-120kW 1550 1100 642 100/150
150kW 1550 1100 642 100/150
2 X EVOMAX 30 - 150 KW
1550
Measurements are without boilers attached. 150kW boilers are deeper than Low Height Frame and Header
Measurements are without boilers attached. 150kW boilers are deeper than Low Height Frame and Header
Measurements are without boilers attached. 150kW boilers are deeper than Low Height Frame and Header
