28

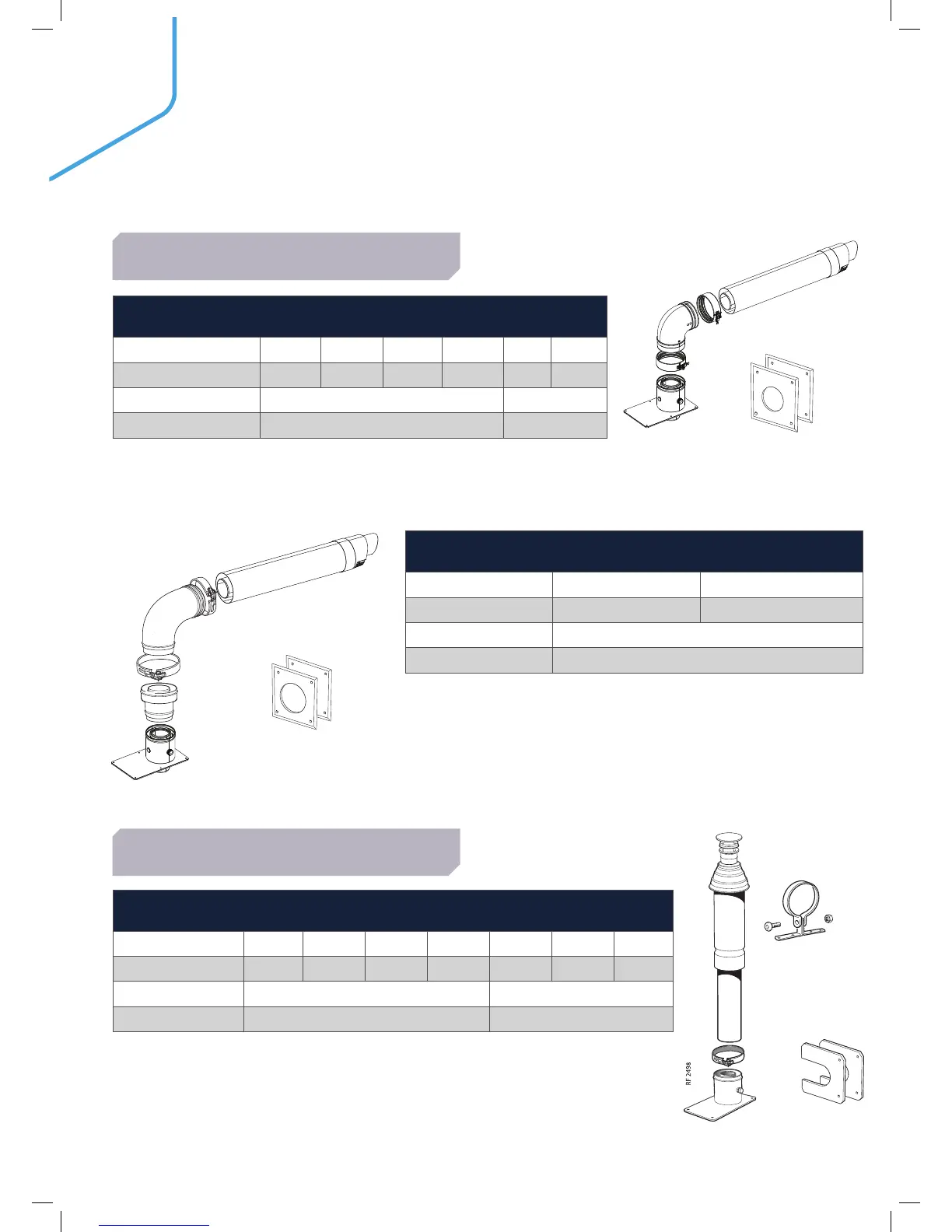

CONCENTRIC FLUE OPTIONS (C TYPE)
EVOMAX HORIZONTAL CONCENTRIC FLUE APPLICATION ~ MAXIMUM
LENGTHS AND PRESSURE DIFFERENTIALS
Model 30/30P 40/40P 60/60P 80/80P 100 120
Max flue length (m) 42 42 7.5 12 14.3 17.6
Flue Size 80/125 100/150
Wall flue kit No 213267 213269
EVOMAX VERTICAL CONCENTRIC FLUE APPLICATION ~ MAXIMUM LENGTHS AND
PRESSURE DIFFERENTIALS
Model 30/30P 40/40P 60/60P 80/80P 100 120 150
Max flue length (m) 42 42 7. 5 12 14.3 17.6 7.5
Flue Size 80/125 100/150
Wall flue kit No 213264 213266
EVOMAX 60 & 80 HORIZONTAL CONCENTRIC FLUES
OF LONGER LENGTHS (LARGER FLUE DIAMETER)
Model 60/60P 80/80P
Max flue length (m) 30 35
Flue Size 100/150
Wall flue kit No 213268
CONTENTS
• Boiler adapter + screws (x6)
• 90° elbow
• Terminal
• Locking collars (x2)
• Wall plates (x2)
CONTENTS
• Boiler adapter + screws (x6)
• Increaser
• 90° elbow
• Terminal
• Locking collars (x2)
• Wall plates (x2)
CONTENTS
• Boiler adapter + screws (x6)
• Terminal
• Locking Collar
• Finishing plates (x2)
• Bracket
To comply with CE certification, Evomax boilers must be fitted with
Ideal concentric flues (when using concentric flue type).
HORIZONTAL WALL FLUE KIT
VERTICAL ROOF FLUE KIT
