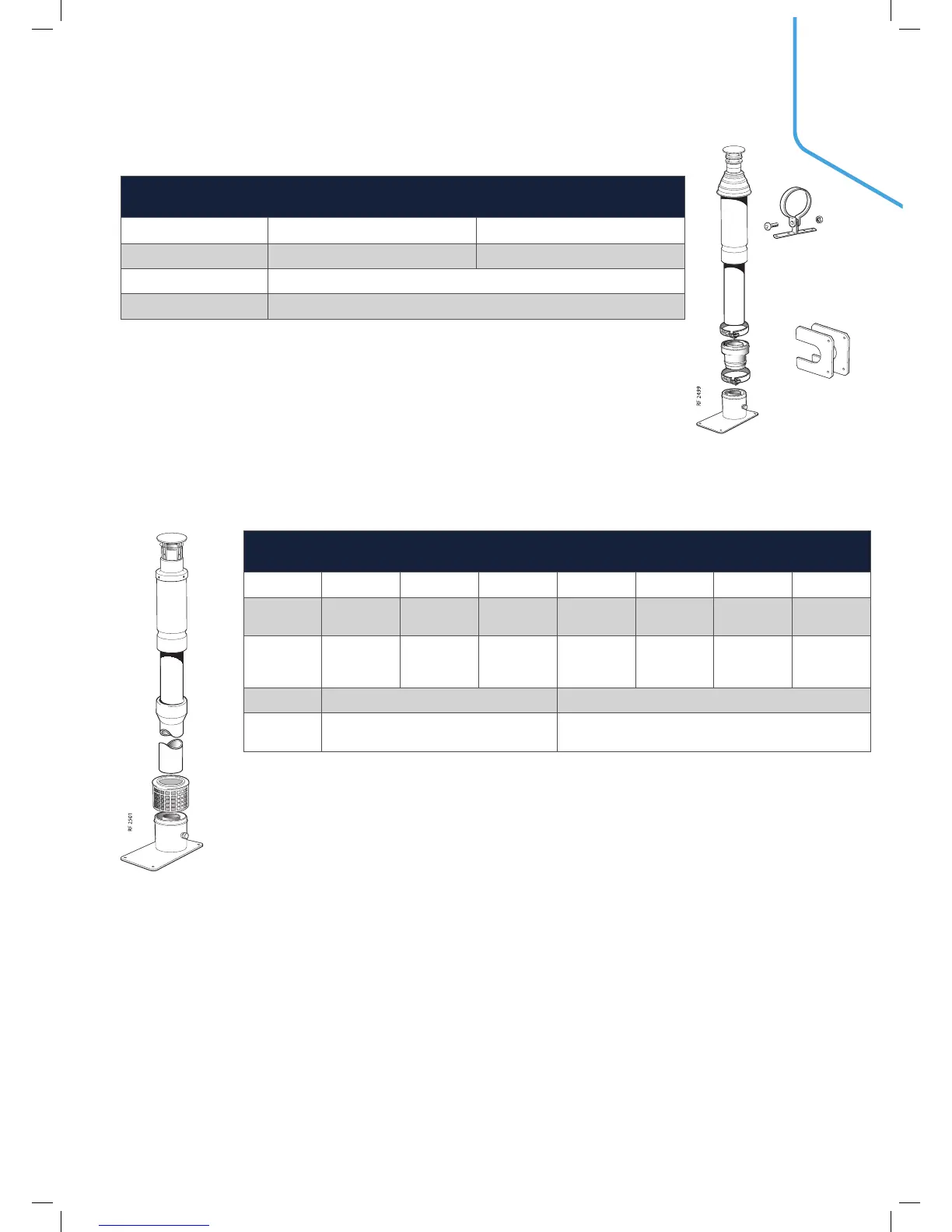

OPEN FLUE OPTIONS (B TYPE)
EVOMAX 60 & 80 VERTICAL CONCENTRIC FLUES OF
LONGER LENGTH
Model
60/60P 80/80P
Max flue length (m) 30 35
Flue Size 100/150
Wall flue kit No 213265
CONTENTS
• Boiler adapter + screws (x6)
• Increaser
• Terminal
• Locking Collars (x2)
• Finishing plates (x2)
• Bracket
CONTENTS
158662 / 158663
Boiler adapter +
screws (x6)
• Air inlet grille*
158769 / 158770
• Terminal
158771 / 158772
• Extension tube (x2)**
* The boiler / adapter & air inlet grille must be fitted to all installations.
** At least 1 off extension tube MUST be used in the installation. This may be suitably cut to length if required.
To comply with CE certification, Evomax boilers must be fitted with an Ideal boiler adapter.
• B type flues must use the inlet grille.
• C type flues must use a complete Evomax flue.
EVOMAX VERTICAL CONCENTRIC FLUE APPLICATION ~ MAXIMUM LENGTHS AND PRESSURE
DIFFERENTIALS
Model 30/30P 40/40P 60/60P 80/80P 100 120 150
Max flue
length (m)
65 70 25 22 20 49 32
Max flue
press diff
(Pa)
140 225 150 312 220 365 430
Flue Size 80/125 100/150
Wall flue
kit No
158662 + 158771 + 158769 158663 + 158772 + 158770
