IDEC MICROSmart FC6A Series User Manual

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-113
2: P RODUCT S PECIFICATIONS

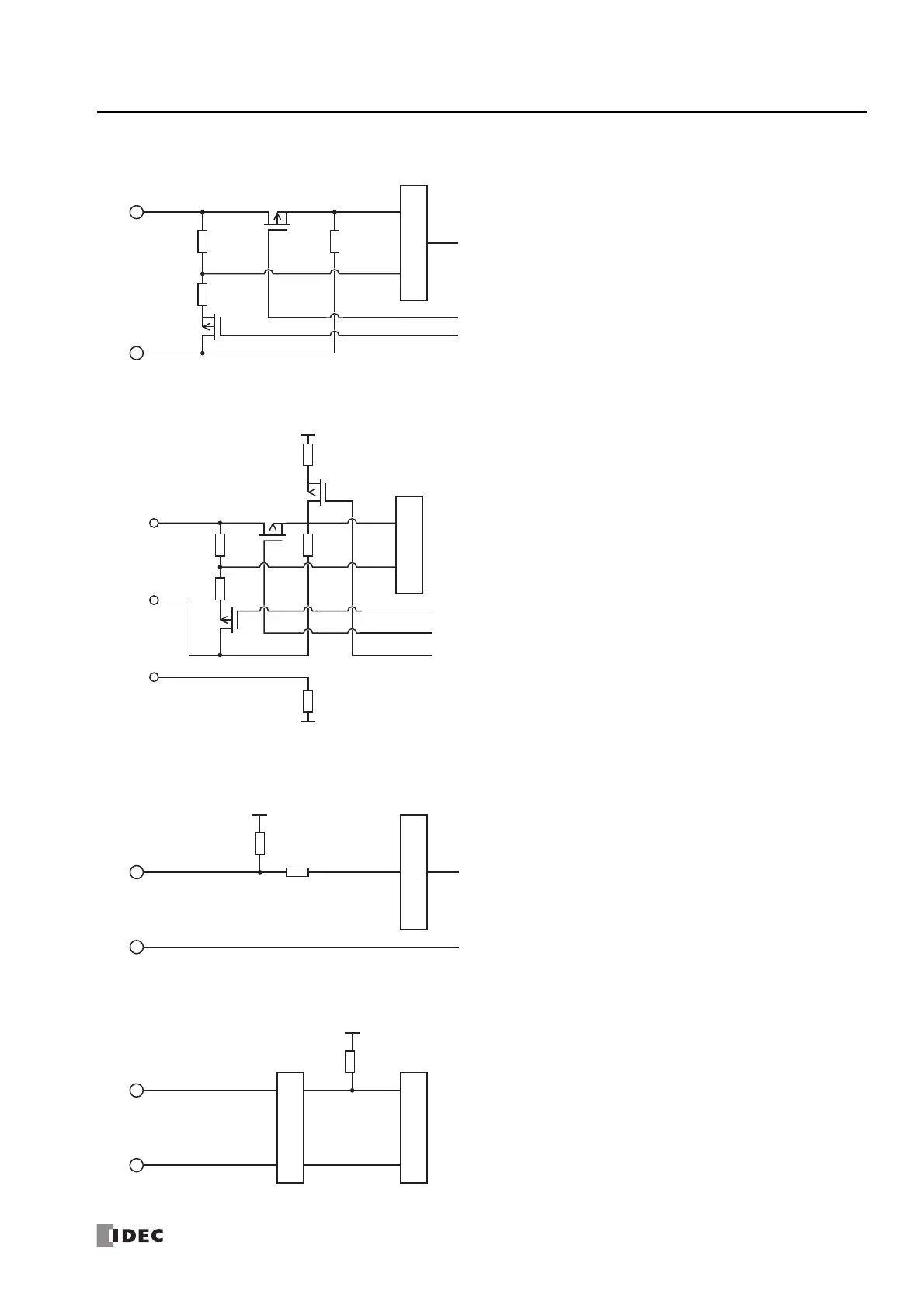

Input Internal Circuit
FC6A-J2C1, FC6A-J2C4, FC6A-J4A1, FC6A-J4A4, FC6A-J8A1, FC6A-J8A4, FC6A-L06A1, FC6A-L06A4
FC6A-J4CN1, FC6A-J4CN4, FC6A-L03CN1, FC6A-L03CN4
FC6A-J8CU1, FC6A-J8CU4
FC6A-J4CH1Y, FC6A-J4CH4Y
Multiplexer
Input Circuit
10 Ω2 MΩ
39 kΩ
Switching Signal
+
–
Multiplexer
Switching Signal
A
+
B
B’
–
Voltage Supply
Voltage Supply
10 Ω
2 MΩ
39 kΩ
Multiplexer
Input Circuit
+
–
Voltage Supply
Input Circuit
Isolation
+
˗
Voltage Supply
