2: P RODUCT S PECIFICATIONS
Analog I/O Modules
Three type of analog I/O modules are available: analog input modules equipped with input terminals, analog output modules
equipped with output terminals, and analog mixed I/O modules equipped with both input and output terminals.
Parts Description
(1) Type Label
Indicates the analog I/O module type no. and specifications.
(2) Power LED [PWR]
This LED turns on when the power is supplied to the analog I/O module.
(3) Terminal Name Label
Indicates terminal numbers.
(4) Cable Terminal
Two types of terminals are separately available: the terminal block type (3.81 mm pitch) and the terminal block type (5.08
mm pitch).
(5) Expansion Connector
Connects the expansion modules and the CPU module.

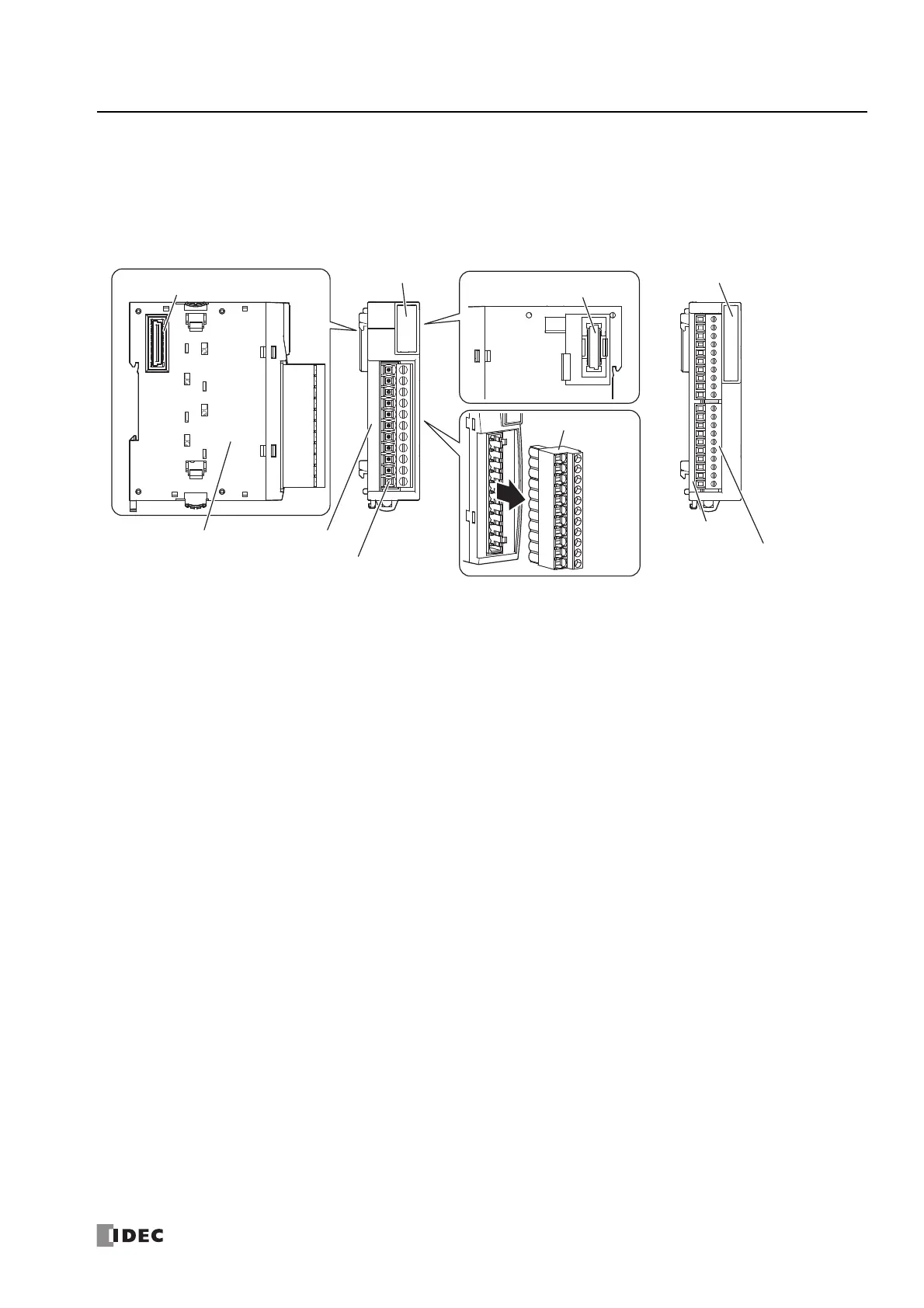

Example: FC6A-J2C1 Example: FC6A-L06A1
(2) Power LED
[
PWR
]
(2) Power LED
[
PWR
]
(5) Expansion Connector
(5) Expansion Connector
(3) Terminal Name Label
(4) Cable Terminal
(1) Type Label
(4) Cable Terminal
(4) Cable Terminal
(3) Terminal Name Label
