IDEC MICROSmart FC6A Series User Manual

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-177
2: P RODUCT S PECIFICATIONS

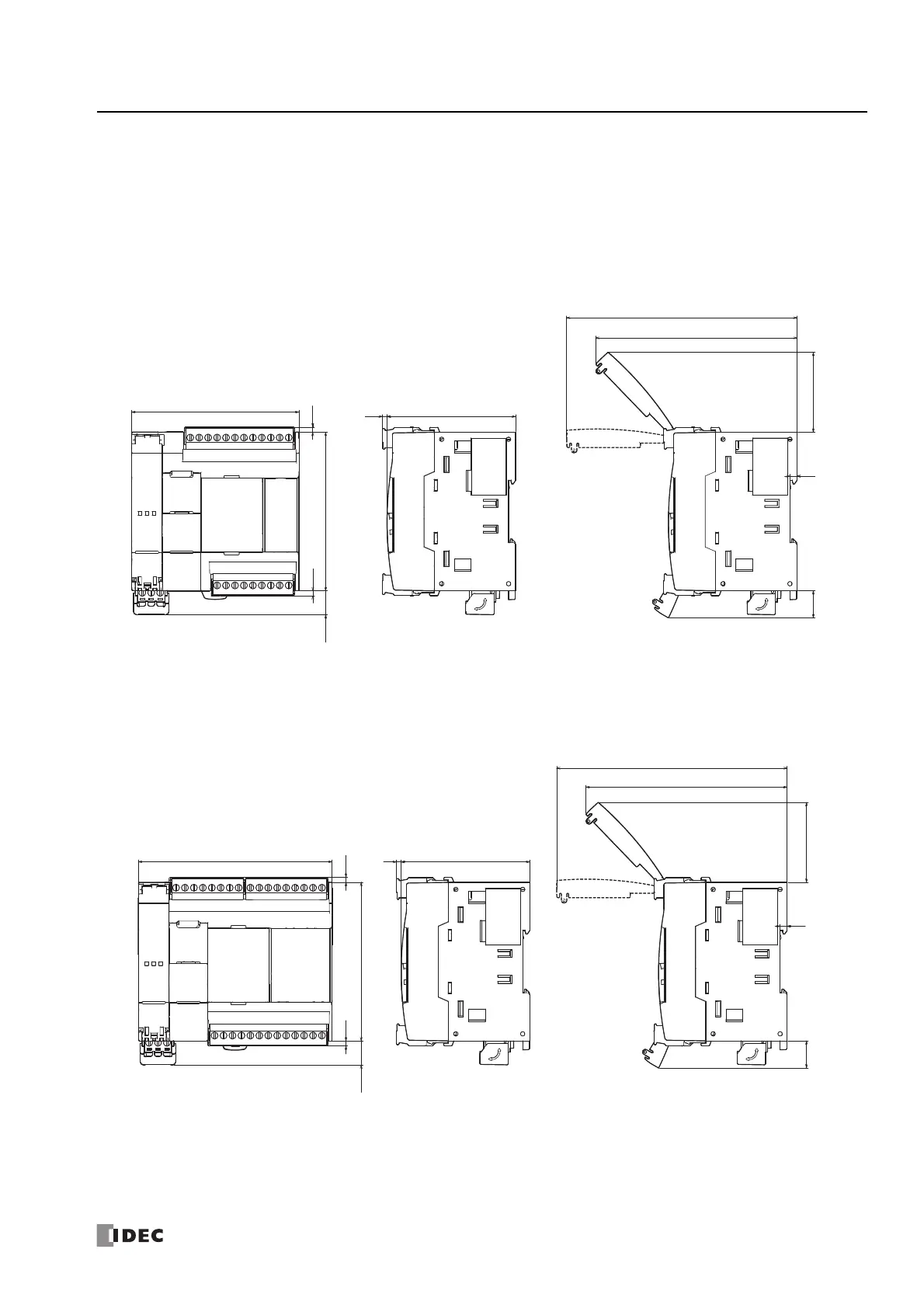

Dimensions
CPU Modules
All-in-One CPU module
*1 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
*1 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
16-I/O Type: Screw fastened type:FC6A-C16R1AE, FC6A-C16R1CE, FC6A-C16K1CE, FC6A-C16P1CE,
FC6A-C16R1DE, FC6A-C16K1DE, FC6A-C16P1DE
Push-in type: FC6A-C16R4AE, FC6A-C16R4CE, FC6A-C16K4CE, FC6A-C16P4CE,
FC6A-C16R4DE, FC6A-C16K4DE, FC6A-C16P4DE
24-I/O Type: Screw fastened type:FC6A-C24R1AE, FC6A-C24R1CE, FC6A-C24K1CE, FC6A-C24P1CE
Push-in type: FC6A-C24R4AE, FC6A-C24R4CE, FC6A-C24K4CE, FC6A-C24P4CE
45.4
114.3
130.9
15.4
73.0
[3.3]
2.7
2.9 [8.1]
2.9 [8.1]
95.0
90.0
13.6
[12.6]
4.0
All dimensions in mm.
*1
*1
*1
*1
45.4
114.3
130.9
15.4
73.0
[3.3]
2.7
2.9 [8.1]
110.0
2.9 [8.1]
90.0
13.6
[12.6]
4.0
All dimensions in mm.
*1
*1
*1
*1
