IDEC MICROSmart FC6A Series User Manual

2: P RODUCT S PECIFICATIONS
2-178 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

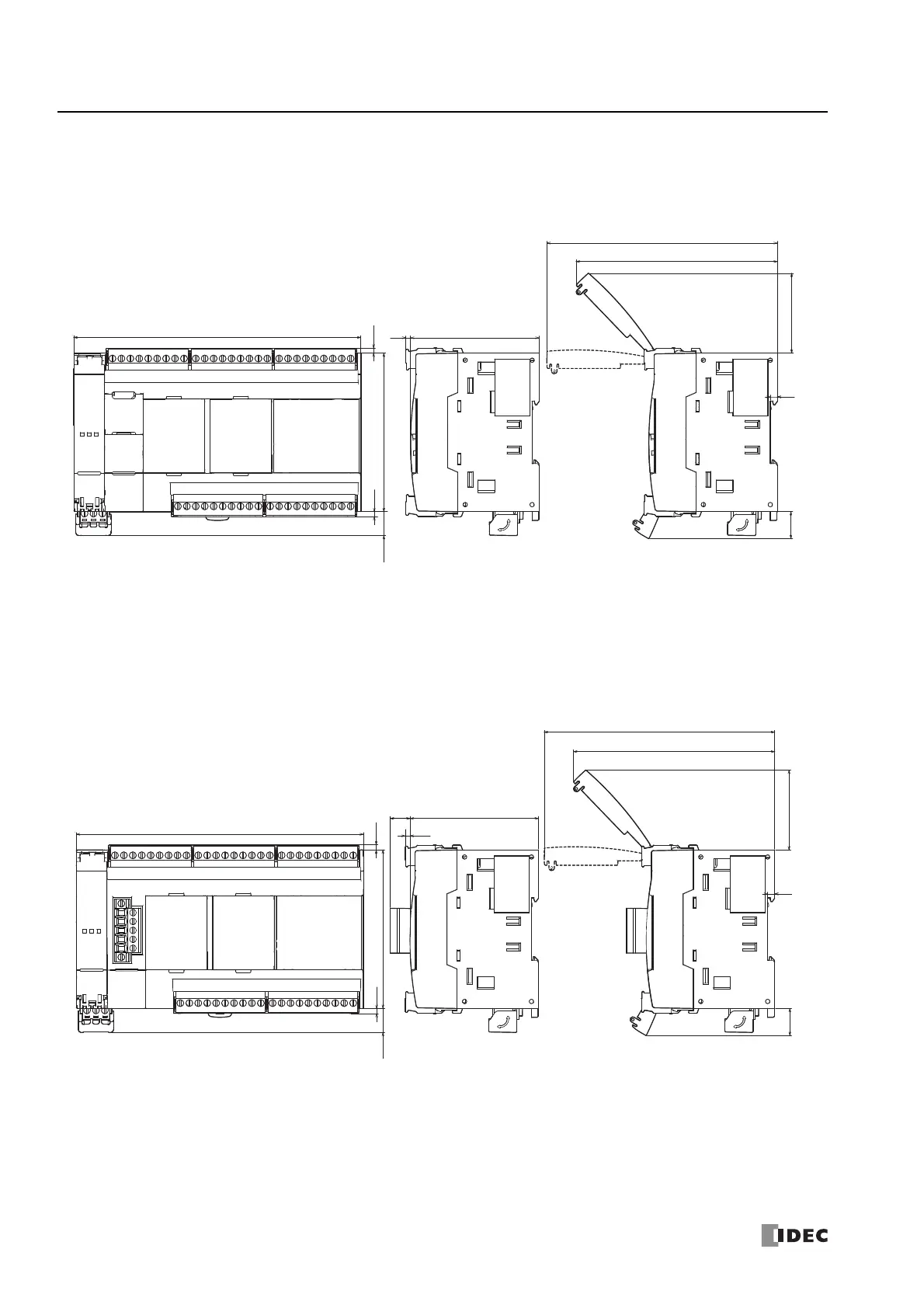

*1 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
CAN J1939 All-in-One CPU module
*1 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
40-I/O Type: Screw fastened type:FC6A-C40R1AE, FC6A-C40R1CE, FC6A-C40K1CE, FC6A-C40P1CE,
FC6A-C40R1DE, FC6A-C40K1DE, FC6A-C40P1DE
Push-in type: FC6A-C40R4AE, FC6A-C40R4CE, FC6A-C40K4CE, FC6A-C40P4CE,
FC6A-C40R4DE, FC6A-C40K4DE, FC6A-C40P4DE
40-I/O Type: Screw fastened type:FC6A-C40R1AEJ, FC6A-C40R1CEJ, FC6A-C40K1CEJ, FC6A-C40P1CEJ,
FC6A-C40R1DEJ, FC6A-C40K1DEJ, FC6A-C40P1DEJ
Push-in type: FC6A-C40R4AEJ, FC6A-C40R4CEJ, FC6A-C40K4CEJ, FC6A-C40P4CEJ,
FC6A-C40R4DEJ, FC6A-C40K4DEJ, FC6A-C40P4DEJ
114.3
45.4
130.9
15.4
73.0
163.0
90.0
4.0
[3.3]
2.7
2.9 [8.1] 2.9 [8.1]
13.6
[12.6]
All dimensions in mm.
*1
*1
*1
*1
114.3
45.4
130.9
15.4
73.0
[9.85]
11.3
2.7 [3.3]
2.9 [8.1]
163.0
90.0
2.9 [8.1]
13.6
[12.6]
4.0
All dimensions in mm.
*1
*1
*1
*1
*1
