9: A NALOG I/O M ODULES
9-4 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

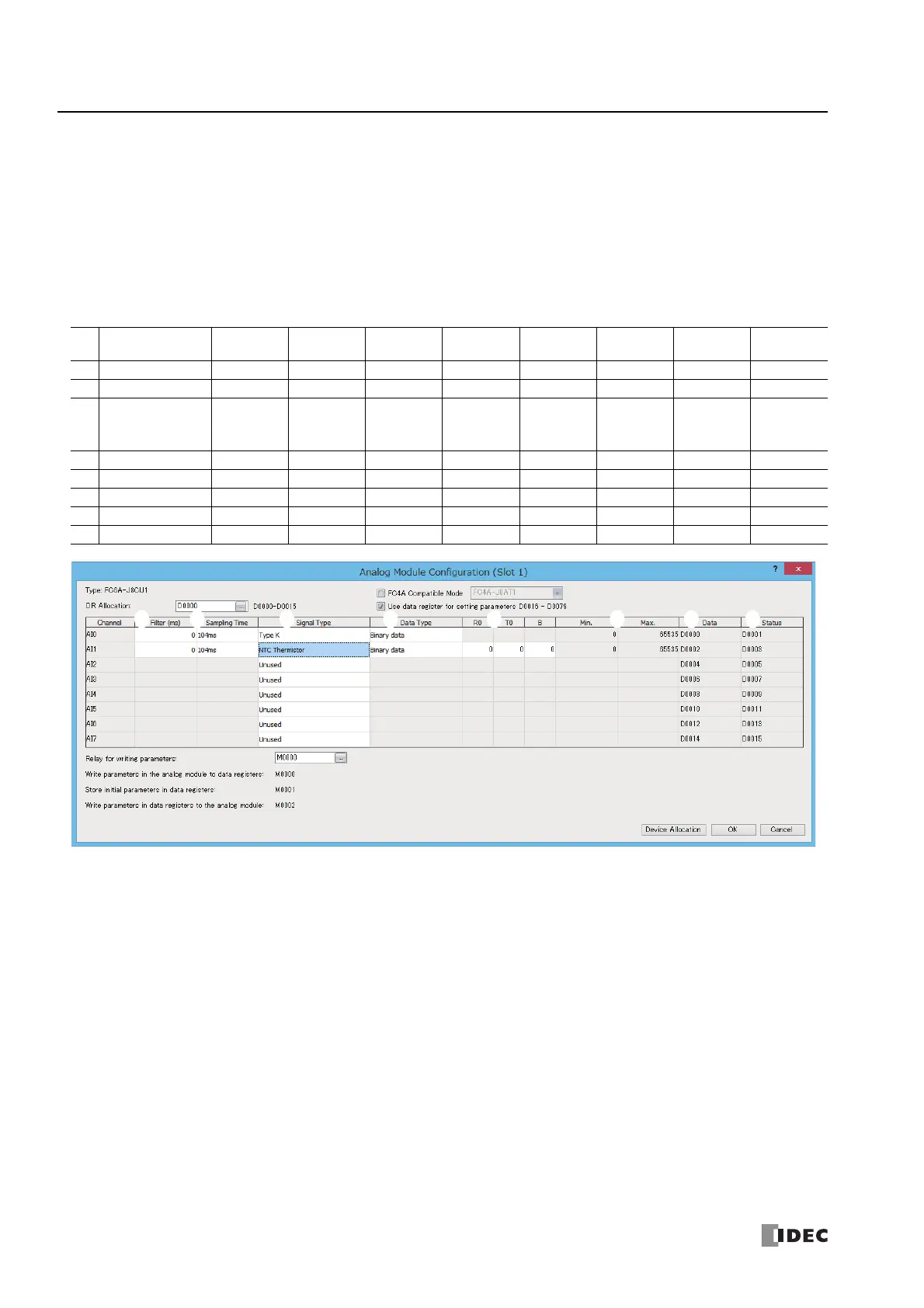

Analog I/O Module Parameter Settings
This section describes the analog I/O module parameter settings.
The parameter settings are configured for each channel. The parameters to configure differ according to the analog I/O module
type and I/O type. In Expansion Modules Configuration, configure the parameter settings according the application.
For detailed configuration methods, see "Module Configuration Editor" on page 12-1.
Analog Input Type
The following parameters are for configuring the analog inputs on the analog input modules and the mixed analog I/O modules.
Yes: Parameters,
―: No parameters
No. Parameter
FC6A-J2C1
FC6A-J2C4
FC6A-J4A1
FC6A-J4A4
FC6A-J8A1
FC6A-J8A4
FC6A-J4CN1
FC6A-J4CN4
FC6A-J4CH1Y
FC6A-J4CH4Y
FC6A-J8CU1
FC6A-J8CU4
FC6A-L06A1
FC6A-L06A4
FC6A-L03CN1
FC6A-L03CN4
(1) Signal Type Yes Yes Yes Yes Yes Yes Yes Yes
(2) Data Type Yes Yes Yes Yes Yes Yes Yes Yes
(3)
Minimum and
maximum values
(Data type)
Yes Yes Yes Yes Yes Yes Yes Yes
(4) Filter Yes Yes Yes Yes Yes Yes Yes Yes
(5) Sample Time Yes Yes Yes Yes Yes Yes Yes Yes
(6) Thermistor Settings ―――――Yes ――
(7) Data Yes Yes Yes Yes Yes Yes Yes Yes
(8) Status Yes Yes Yes Yes Yes Yes Yes Yes
(4) (5) (1) (2) (6) (3) (7) (8)
