11: SD M EMORY C ARD
Upload to SD Memory Card
The user program and system software written to the CPU module can be uploaded to the SD memory card.
Upload a ZLD File
The user programs and system software written to the CPU module can be uploaded to the SD memory card.
Data can be uploaded while the CPU module is running.
By performing the following operations, the CPU module's user program and system software can be uploaded to the SD memory
card as a ZLD file.
An upload is not performed for data that has not been written to the CPU module. If a ZLD file that contains the same data as the
CPU module data already exists on the SD memory card, it will not be overwritten by the upload. If any of the data is different, all
of the data will be uploaded and the file will be overwritten with a new ZLD file.
Operation Action When the CPU Module is Read Protected
The CPU module power is turned on when an
SD memory card with an autoexec.ini file
that executes an upload has been inserted in
the SD memory card slot.
The data is uploaded from the CPU module
with the ZLD file name specified by the
autoexec.ini file.
The ZLD file is uploaded to the
\FCDATA01\PROGRAM\ folder.
The upload is not performed.
Special internal relay M8251 is turned on
when an SD memory card with an
autoexec.ini file that executes an upload has
been inserted in the SD memory card slot.
An SD memory card with an autoexec.ini file
that executes an upload is inserted in the SD
memory card slot.
An upload is executed with the system menu
on the HMI module.
For details, see "Uploading the User Program
(CPU module –> SD memory card)" on page
7-46.
The data is uploaded with the file name
specified by the system menu on the HMI
module.
The ZLD file is uploaded to the
\FCDATA01\PROGRAM\ folder.
 The upload is executed even if there is no
autoexec.ini file on the SD memory card.
 Even if there is an autoexec.ini file on the
SD memory card, it will not be read. For
details, see "Creating the autoexec.ini
File" on page 11-31.
The upload is performed if the password
matches the password entered with the HMI
module.
The upload is not performed if the passwords
do not match.

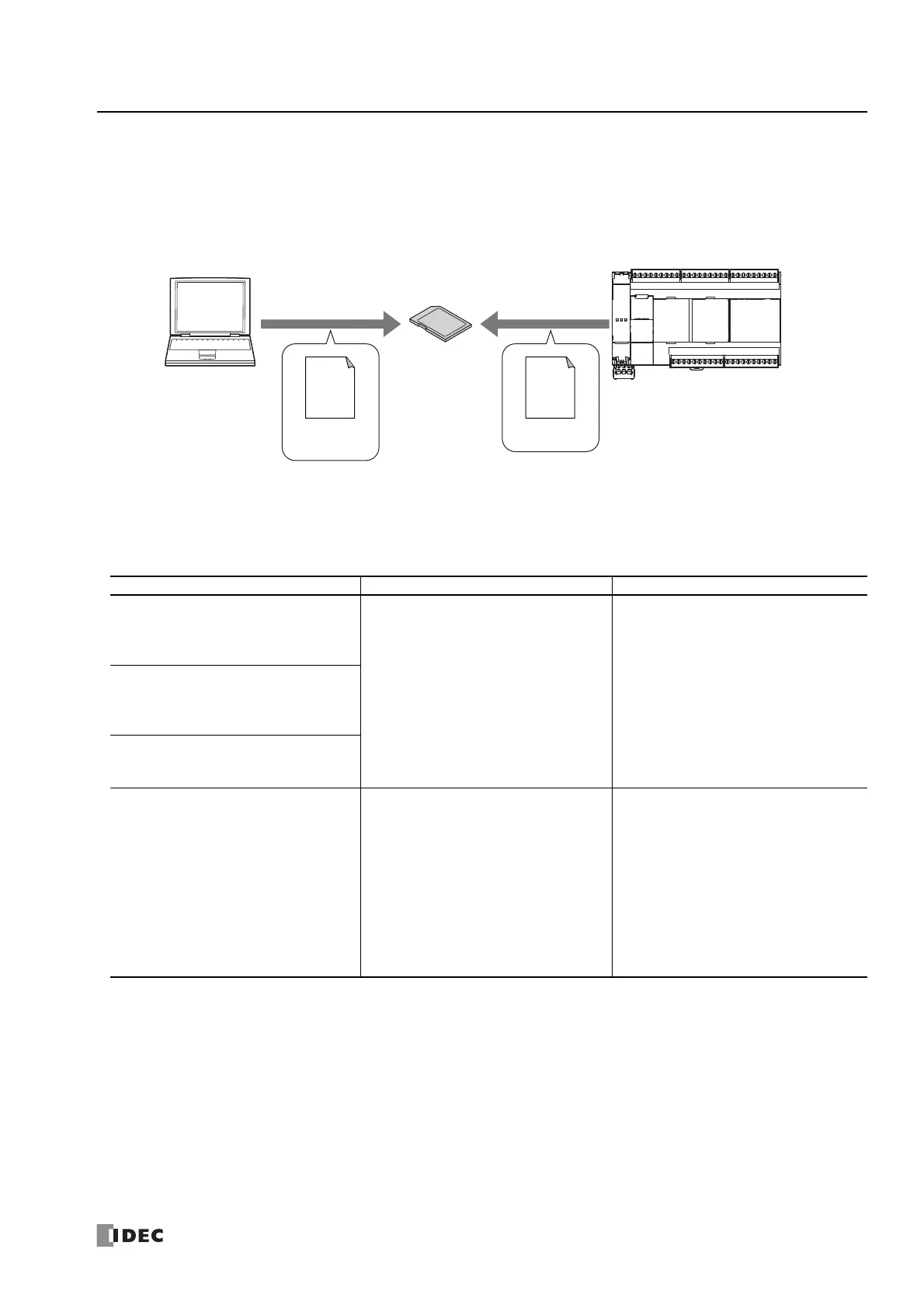

FC6A Series MICROSmart
Computer
(WindLDR)
Upload
Save
SD Memory Card
ZLD File autoexec.ini
File
