5: F UNCTIONS AND S ETTINGS
5-70 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
User Program Capacity
This section describes the function to select the user program capacity on the FC6A Series MICROSmart.
Function Description
If the default FC6A Series MICROSmart user program capacity is insufficient, you can secure a larger user program capacity.
However, Online Edit can no longer be used.
Programming WindLDR
You can set the user program capacity of the All-in-One CPU module and CAN J1939 All-in-One CPU module.
The Plus CPU module is fixed to 800,000 bytes.

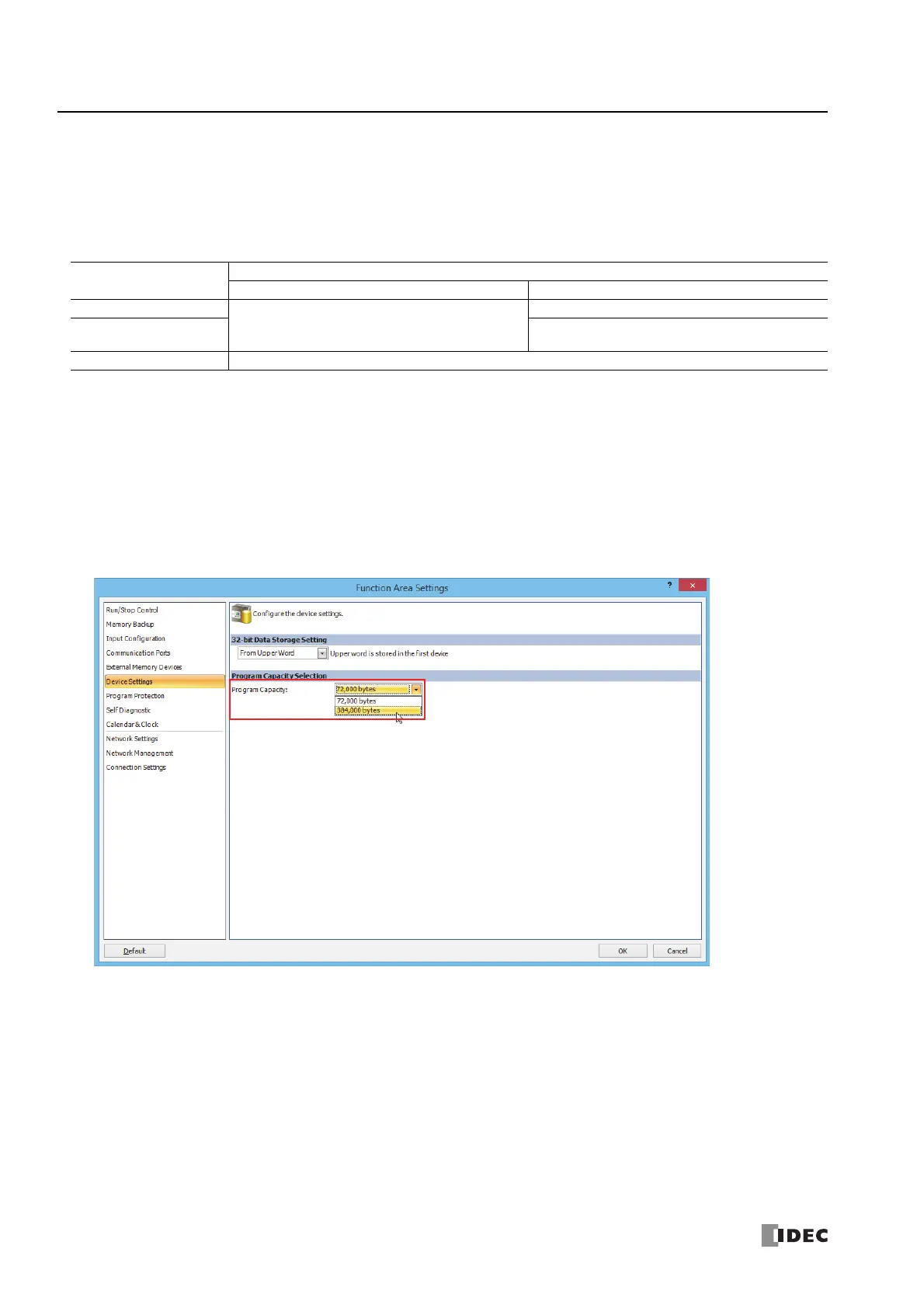

1. On the Configuration tab, in the Function Area Settings group, click Device Settings.
The Function Area Settings dialog box is displayed.
2. For Program Capacity Selection, select 72,000 bytes, 384,000 bytes (All-in-One CPU module), or 640,000 bytes (CAN
J1939 All-in-One CPU module).
3. Click OK.
This concludes configuring the settings.
CPU Module Type
User Program Capacity
Default Capacity When Securing a Larger User Program Capacity
All-in-One CPU Module
72,000 bytes (9,000 steps)
384,000 bytes (48,000 steps)
CAN J1939 All-in-One
CPU Module
640,000 bytes (80,000 steps)
Plus CPU Module 800,000 bytes (100,000 steps)
