IDEC MICROSmart FC6A Series User Manual

2: P RODUCT S PECIFICATIONS
2-176 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
Bluetooth Communication Cartridge
The Bluetooth communication cartridge supports the maintenance communication and user communication.

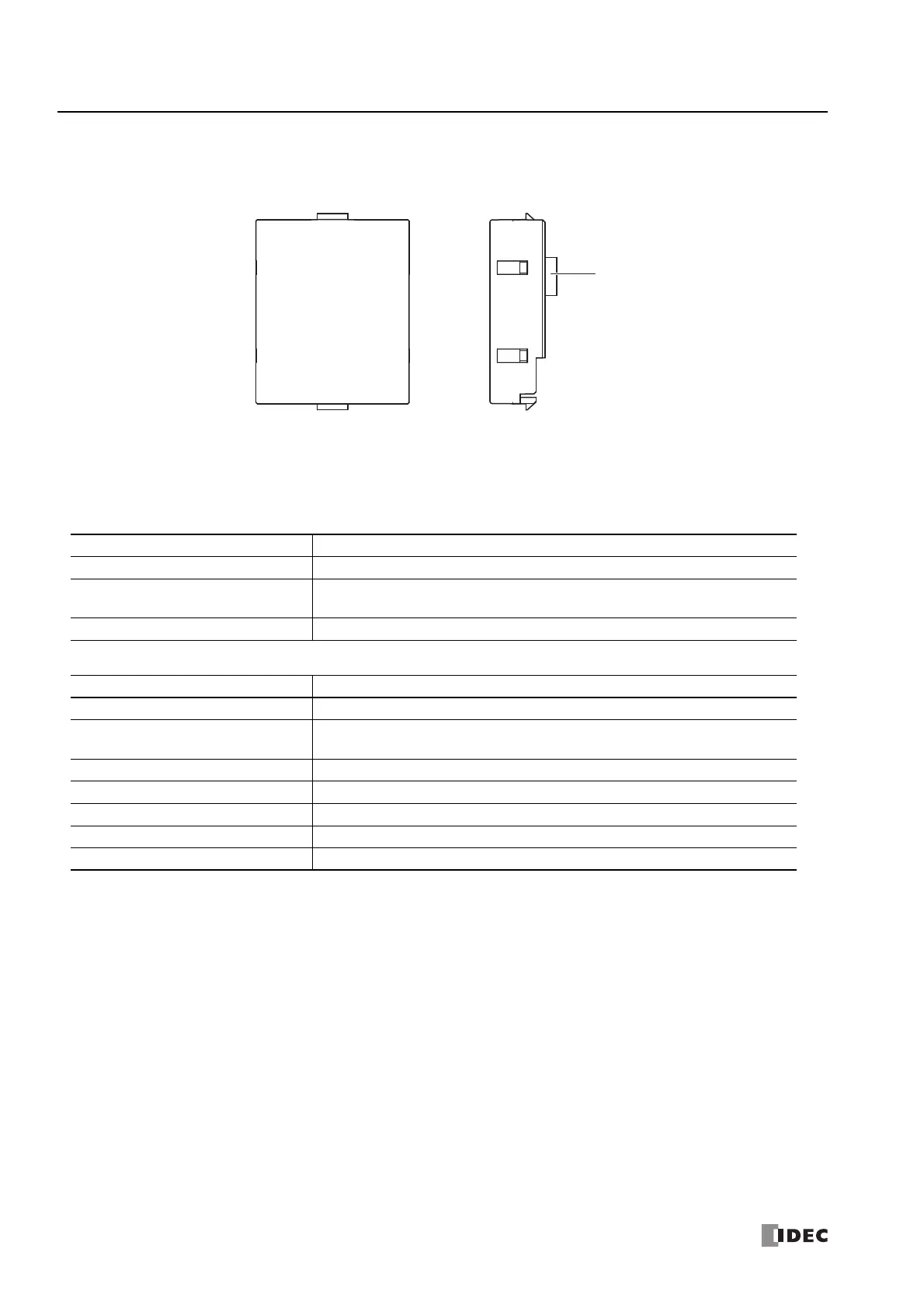

■ Part Names and Functions
(1) Connector
The connector used to connect the cartridge to cartridge slot 1 or 2 or cartridge slot 3 on the HMI module connected to the
Plus CPU module.
■ Function Specifications
Wireless Communication Specifications
*1 Connection effective range is affected by obstacles (human, metal, wall) and wave signal condition. Make sure to confirm the connection status
before actual operation.
*2 Depending on countries or regions, evaluations on the device equipped with FC6A may be necessary.
Note: Communication performance (required time) in maintenance communication is as follows.
 User program upload equivalent to 10,000 steps: 40 seconds approx.
 User program download equivalent to 10,000 steps: 50 seconds approx.
 User program upload equivalent to 20,000 steps: 1 minute 20 seconds approx.
 User program download equivalent to 20,000 steps: 1 minute 40 seconds approx.
 100 KB CSV file retrieval: 30 seconds approx.
 200 KB CSV file retrieval: 1 minute approx.
Type No. FC6A-PC4
Rated Power Voltage 5.0 V, 3.3 V (supplied from module)
Current Draw
5.0 V: 120 mA maximum
3.3 V: 30 mA maximum
Weight 15 g
Type No. FC6A-PC4
Bluetooth Standard Bluetooth ver.2.1 + EDR
Profile
SPP (Serial Port Profile)
iAP (iPod Accessory Protocol)
Frequency Range 2,402 MHz to 2,480 MHz
Wireless Transmission Distance
*1
10 m (Class 2)
Multi-point Function 8 units
Communication Protocol Maintenance communication protocol, user communication protocol
Bluetooth Wireless Approved Regions
*2
Japan, China, USA, Canada, Australia, New Zealand, Europe
(1)
